2M Dual Fiber 1064nm C-lens Gold-plated Tube Premium Fiber Collimator 5mm WD 250um

Fiber Collimator Dual Fiber 1064nm C-lens Gold-plated Tube Premium 5mm WD 250um 2M

Fiber Collimators are devices used to expand and collimate the output light at the fiber end, or to couple light beams between two fibers. They are a module that combine a fiber and a lens, and has a function that produces parallel beams. When the fiber collimators are manufactured, the positions of the fiber and lens are adjusted so that parallel beams can be obtained, and this generally requires extremely fine adjustments. The more energy the fiber collimator is able to gather form the source and launch into the fiber end.They are available with different wavelengths (850 nm, 980 nm, 1060 nm, 1310 nm, 1550 nm) or fiber options (SM fiber, MM fiber, PM fiber, and LMA fiber, etc.).

Characteristics

• Low Insertion Loss and Return Loss
• Low Back Reflection
• High Extinction Ratio
• Low Insertion Loss
• Wide Operating Wavelength and Temperature
• Scientific design with serious processing art

Applications

• Optical cable jumper or pigtail cable
• Laser Beam Collimating
• Optical cable jumper or pigtail cable
• PM Isolator and PW WDM
• Laser Beam Collimating

Specifications

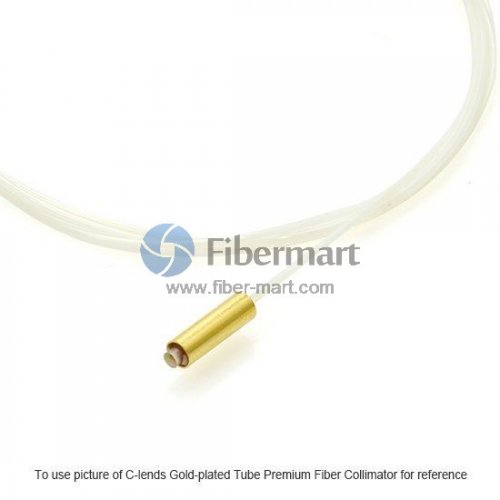

Sample Picture

Dimension
