  • 2m Volition VF45 to LC Duplex OM3 Fiber Patch Cable

2m Volition VF45 to LC Duplex OM3 Fiber Patch Cable

Product Item: #17150
P/N: OM3-VF45-LC-2M
Starting at: US$69.00

Please Choose:





Order Today, Ship before 04/02/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

2m VF 45 to LC Duplex OM3 Multimode Fiber Patch Cable



Volition VF-45 patch cables are manufactured using GGP(Glass/Glass/Polymer) fiber optic cables and industry standard ST, SC, FC, LC, MTRJ and VF-45 fiber optic connectors. GGP fiber cable assemblies are ideal for panel-to-panel cross-connects, equipment back planes, under desk and other applications that require reliability and mechanical strength. Volition VF-45 patch cables are ideal for applications requiring tight bends, durability and depend ability. They're great for exposed fiber optic cable situations, such as under-desk applications where their mechanical strength and tight bend radius makes them more resistant to kicks, pulls and bends.



This price on the website is for 2M length,please feel free to enquiry us for the other length standard



Characteristics

GGP FiberProven 3MTM Technology
Allows Tighter Bend Radius (3/8 inch)
Easier to Route and Manage
Exceptional Strength and Durability
Withstands Abuse



Specifications

Item

Specifications

Attenuation:

<0.75 dB max

Reflection:

>20 dB max

Mating durability:

500 cycles, <0.75 dB max

Strength of coupling:

>33 N, <0.75 dB max

Plug cable retention:

Tensile load >66 N, Side Pull >6.6 N, <0.75 dB max

Plug flex:

100 Cycles,/90 degrees, 0.5 kg, <0.75 dB max

Plug twist:

10 Cycles,/2.5 revolutions, 15 N, <0.75 dB max

Cold:

-10C for 96 hours, <0.3 dB increase

Heat:

+60C for 14 days, <0.3 dB increase

Thermal cycling:

-10C to 60C, 5 Cycles, <0.3 dB increase

Vibration:

10 to 55 Hz, 30 min. each axis, <0.3 dB increase

Connector Style:

Crimp, Polish

Connector Type:

VF45-LC

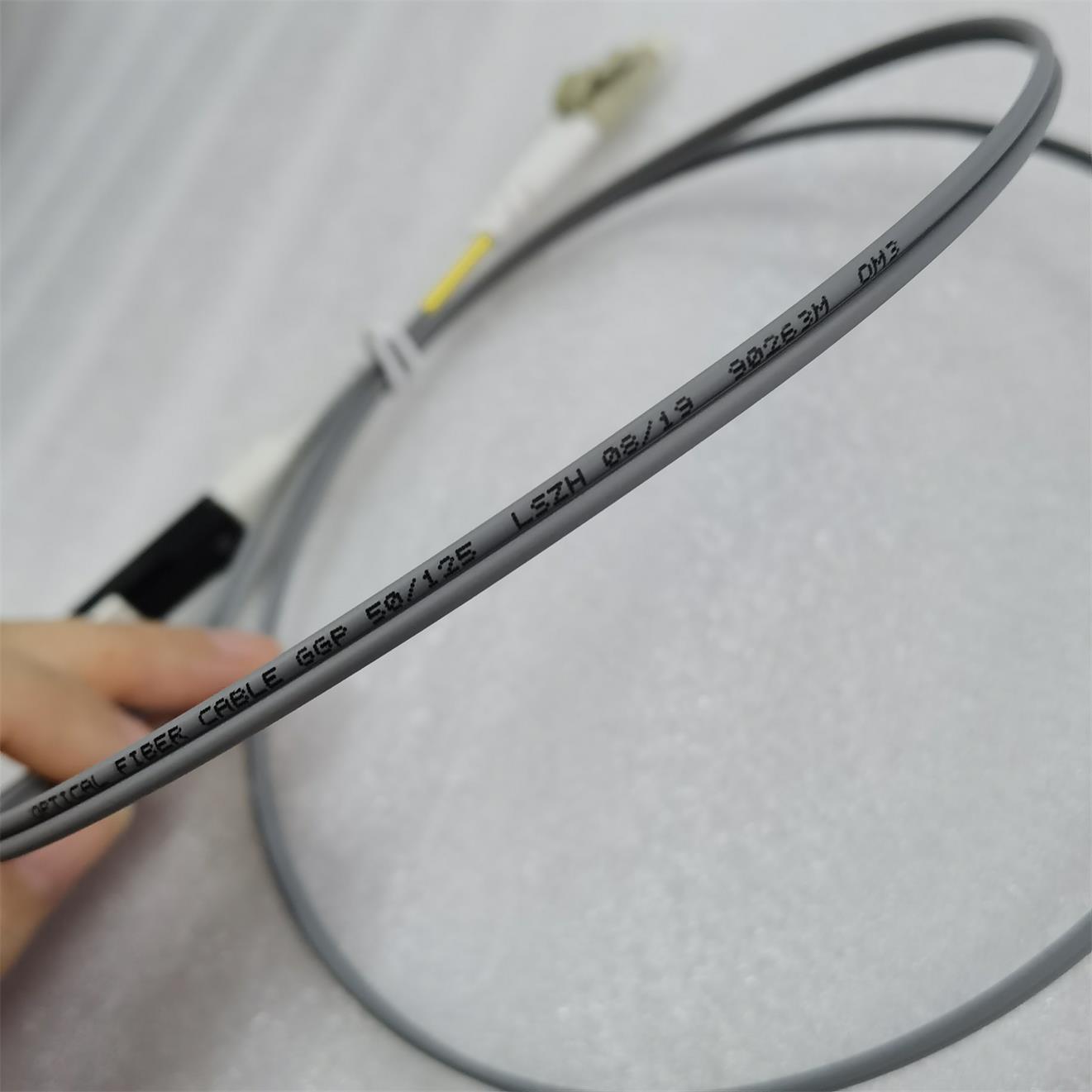

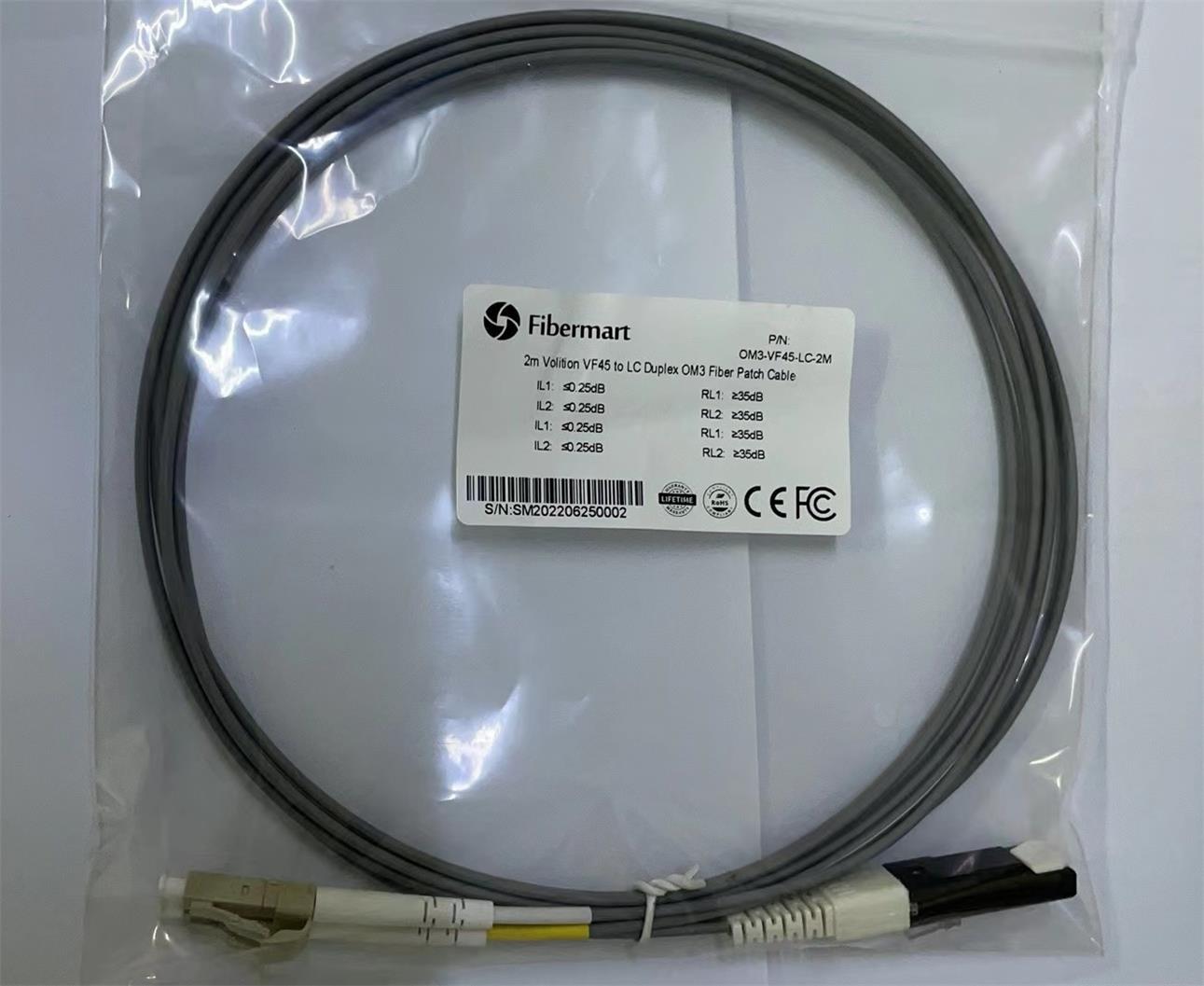

Sample Picture




Details





Order Information



Length in Meters: 1; 1.5; 2; 3; 5; 6; 8; 15; 30;Custom
Cable Jacket Type: R-Riser; L-LSZH;Custom
Fiber Type by Core Size: 50/125(MM); 62.5/125(MM); 9/125(SM);Custom
Second Connector End: V-VF-45 Plug;ST;SC;LC;Custom
First Connector End is Always Volition VF-45 Plug






Datasheet to Download

Add your Tags

Customer Reviews

Displaying 1 to 2 (of 2 reviews)

by Warren
Date Added: 07/04/2022
I've ordered many of VF45 to LC Duplex OM3 Fiber Patch Cable in various lengths, and keep coming back for more.

Rating: 5 of 5 Stars [5 of 5 Stars]
2m Volition VF45 to LC Duplex OM3 Fiber Patch Cable

by Heather Easterly
Date Added: 12/16/2021
Well received om3 vf45 to lc fibers from fibermart, well tested and low loss we got!

Rating: 5 of 5 Stars [5 of 5 Stars]
