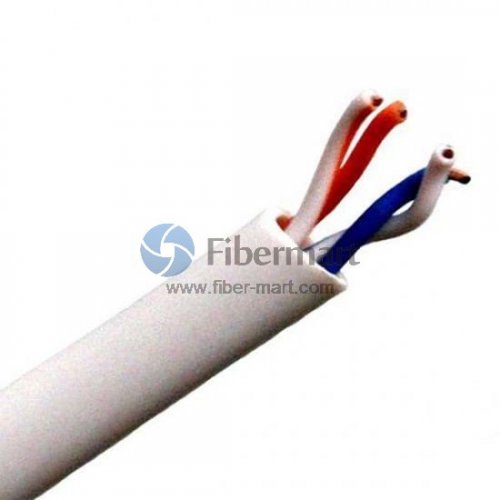

305m 2 Pairs Cat3 Plenum Unshielded Twisted Pair (UTP) Bulk Cable

305m 2 Pairs Cat3 Plenum Unshielded Twisted Pair (UTP) Bulk Cable

Our CAT3 100MHz Unshielded 2 pairs Plenum CMP communications cable is perfect voice capabilities. Our Cat3 100MHz CMP Bulk Cable is ideal for telephone installation. Whether you are wiring your home, office or entire campus, Primus Cable has the solution that right for you. This cable is designed for indoor type fire rated plenum CMP installations.Primus Cable's CAT3 100MHz plenum CMP unshielded solid cable has 2 pairs of 24AWG solid bare copper conductors with a Plenum CMP PVC Jacket. Primus Cable's Cat3 CMP solid unshielded cable is quality manufactured to meet and exceed product certifications and standards EIA/TIA 568 and ISO/IEC & ETL listed Specifications. This cable is sold and shipped in 1000ft increments in a Pull Box.

Key Features

• High-Performance Voice Communications Cable
• Rated to 100MHz
• Designed for Indoor Installations
• Flame Retardant – Type Plenum
• Category-3 Unshielded Twisted Pair (UTP) Cable
• Easily Identified Color-Striped Pairs
• 24AWG Solid Bare Copper Conductors
• Excellent Attenuation and Crosstalk Characteristics
• Exceeds EIA/TIA 568 specifications
• ETL listed
• Supplied in 1000´ Pull Boxes

Specifications

• Conductor：Solid Bare Copper
• Impedance：100Ω±15%
• Conductor Size ：24 AWG
• Operating Temperature ：-10°C +75°C
• Insulation ：Plenum PVC
• Voltage Rating ：100MHz
• Insulation Thickness：0.066mm
• Core DC Resistance：98 Ω/km
• DC Resistance Unbalance:≤ 2.0%
• Jacket：CMP PVC
• Jacket Color：White
• Standards：ETL | CMP | TIA

Applications

• Voice
• 10BaseT
• 100Base VG
• AnyLAN
• 4 Mbps Token Ring
• 10 Mbps Ethernet
• 55 Mbps ATM
• ISDN
