DWDM Platform: FM8600 II 2UProduct features
Standard 2U rackmount design, fully front panel wiring, with 7 pluggable service card slots, 1 network management card or
service card slot, 1 fan slot and 2 power supply slots
Support all types of service WDM from 100 Mbit/s to 400Gbit/s rate to meet the requirements of multi-service access
Support CWDM and DWDM, coarse and dense wave are common cards
Support single-fiber unidirectional, single-fiber bidirectional and dual-fiber bidirectional application scenarios

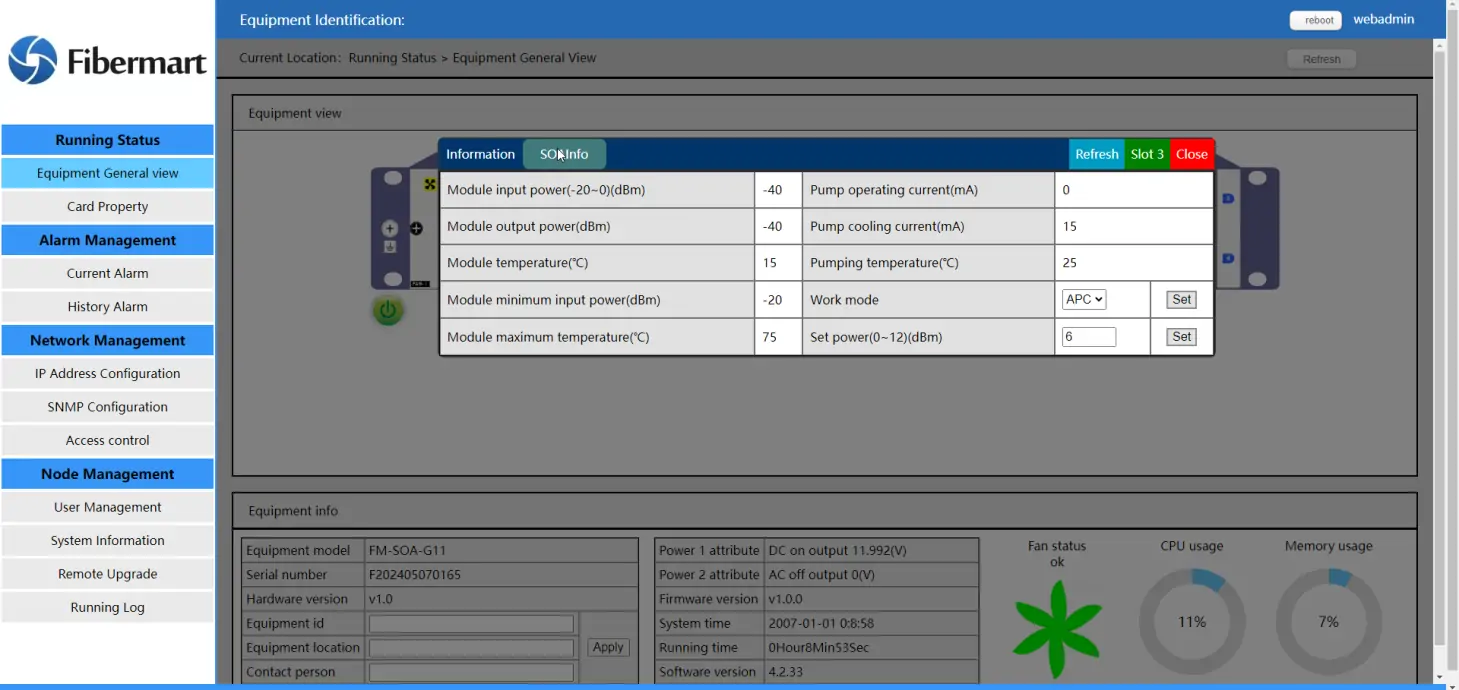

Support unified network management interface, which can provide perfect network and performance monitoring capability
Support 110V/220V AC, -48V DC power supply, 1+1 power input protection
Support configuration-free installation, equipment plug-and-play
Adopt green energy-saving design, typical configuration power consumption 160W
Product specifications
ParameterDescription Product model
FM8600 II
Equipment size
2U: 88 mm (H)×442 mm (W)×220 mm (D)
Service slots
8 Slots (with 1 slot for optional network management card)
Mounting method
19’’ Standard cabinet installation
Operating temperature range
-5℃～50℃(Typical)
Operating humidity range
5~95% No condensation
Storage temperature range
-40℃～85℃
Heat dissipation
Front 1 fan single board slot, support hot-swap
Power supply mode
Front 2 power supply single board slots, support AC 110V/220V or DC -48 V
power supply single board optional, 1+1 hot backup
Power consumption
160W (Full power consumption max.)
