Simplex CWDM MUX & DEMUX

Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over one fiber.

Fiber-Mart CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
Fiber-Mart provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Front Panel Details

• Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
• We provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice, need more details, please contact at [email protected]
• When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used.
• When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.

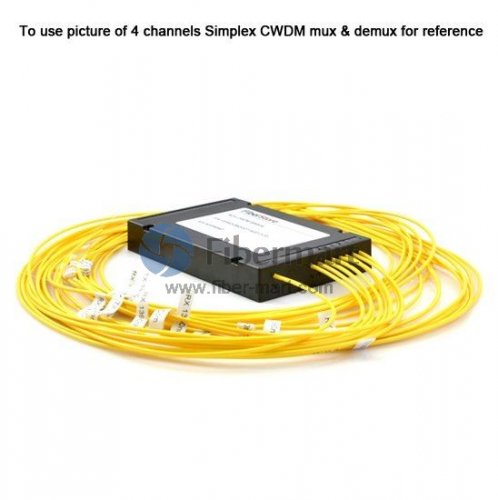

Item Details

• 8 channels CWDM mux and demux
• Com port is simplex
• ABS pigtailed module
• It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
• Front panel is equipped with adapters according to customer choice (see options)
• Passive, no electric power required. (MTBF ca. 500 years)
• Insertion loss: 4dB
• Simple to install, requires no configuration or maintenance
• ISO 9001 manufacturing facility

Mechanical Details for Housing

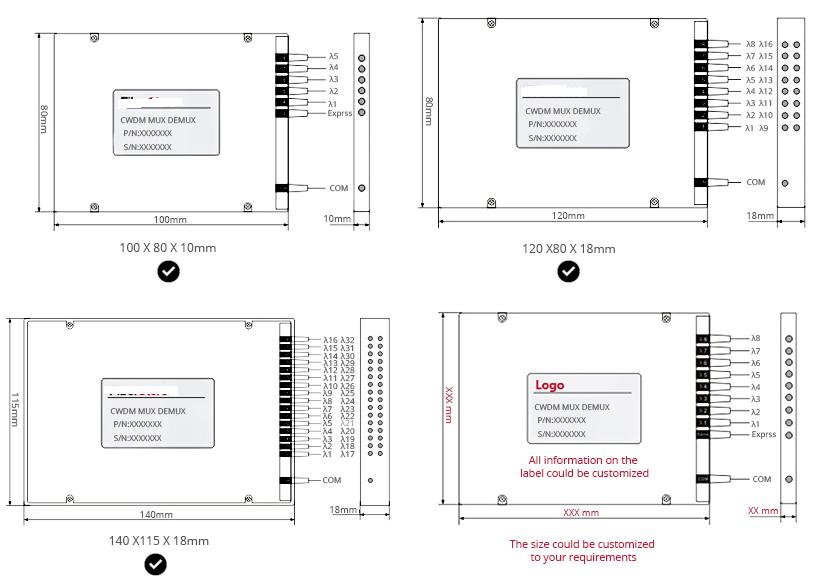

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
