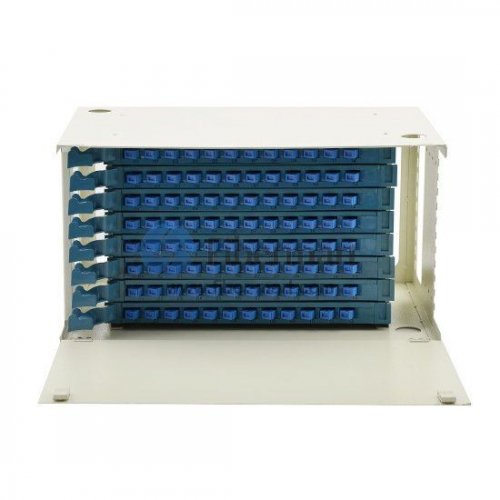

96 Fibers SC 6U Rack Mount Optic Distribution Frame with pigtails and adapters FM-ODF-B-96

96 Fibers SC 6U Rack Mount Optic Distribution Frame with pigtails and adapters

Fiber-Mart offers different types of ODF Rack Mount Distribution Box, rack-mount fiber optic distribution frame is modulated design with draw able trays inside and cold-rolled steel box.The optical distribution frame is with standard 19 inch size and it is properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss.
FM-ODF-B-96 could be pre-installed with various kinds of fiber optic adapters and pigtails.It is available for ribbon & common cable, it can protect the connection & pigtail,install adapter respectively.We offer the fiber optical distribution frame with 1U 12 ports type, 2U 24 ports, 3U 36ports and 48 ports, 4U 72 ports and 6U 96 ports types.
Note: Our default Rack Mount ODF with Simplex UPC connector, singlemode 1.5m bunch pigtails and adapters corresponding number of fibers. If you have special demands, just email us at [email protected].

Detail Parameters

• Dimension(mm):480*300*6U
• Max fiber capacity 96 fibers
• Available for 12 fibers SC adapters (Optional SM, MM or APC/SM)
• Pigtails: 1.5m 12 fibers pigtails

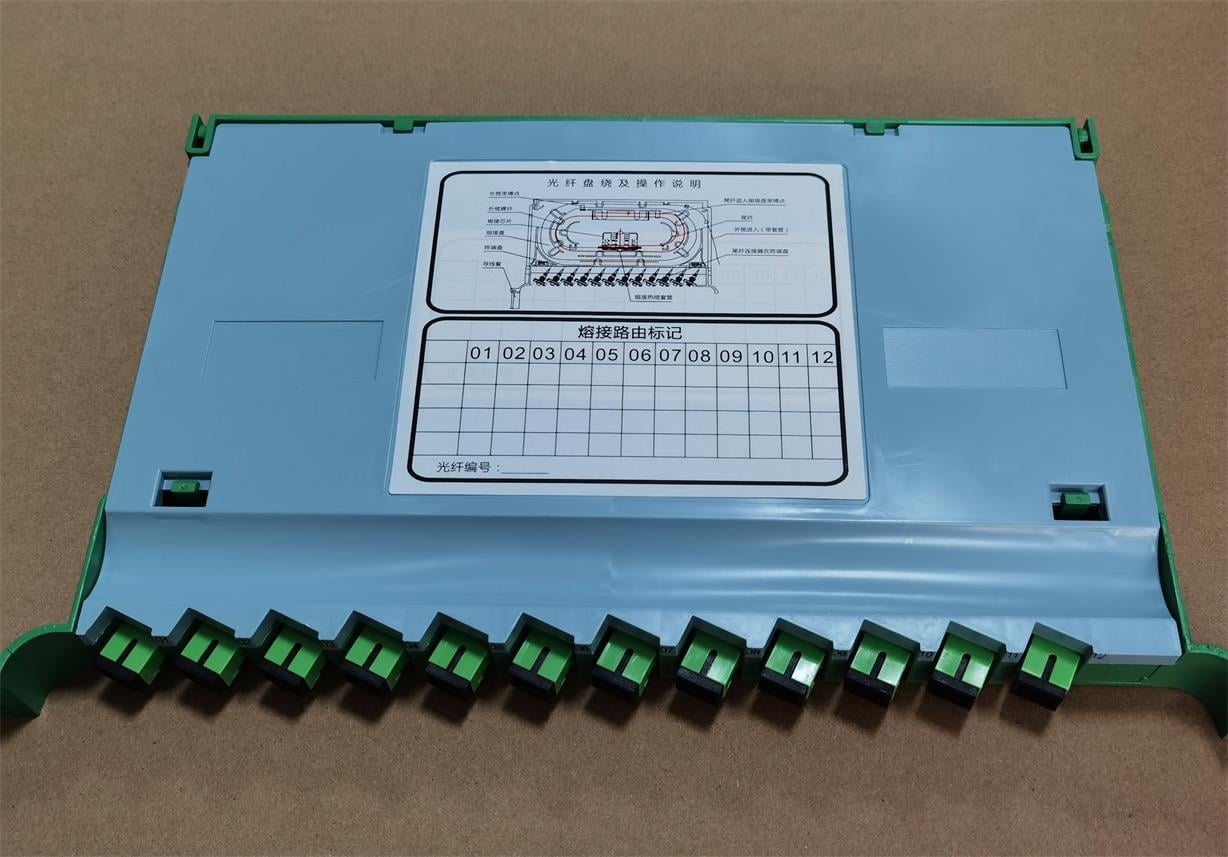

• Fusion Tray: 12C X 8
• Relative humidity: ≤ 85% (30°)
• Air pressure: 70KPa~106Kpa
• Working temperature: -10℃~+60℃
• Storage temperature: -25℃~+85℃
• Installation Method:rack mount
• Several adapters can be installed: FC, SC, ST, LC
• Meterial: Metal

Application

• Fiber to the home (FTTH)
• Telecommunications subscriber loop
• LAN/WAN
• CATV

Package

96 fiber ODF+8x(12 fiber pigtails+12 fiber SC adapters)
