Fiber Connector
Fiber Connector according to the different transmission media can be divided into common silicon-based optical fiber single-mode and multimode fiber patch connectors, as well as other issues such as plastic and as the transmission medium of optical fiber optic connector; fiber connector structure can be divided into: FC, SC, ST, LC, D4, DIN, MU, the MTP, MPO and so on in various forms. The optical interface is the physical interface used to connect fiber optic cable.
FiberMart offers various kinds of fiber optic connectors for sale, including FC Connectors, LC Connectors, SC Connectors, MPO Connectors and ST Connectors. You can buy fiber optic connectors for sale at our store. All fiber optics supplies with high quality but low price with free shipping. Click to see fiber optic cable connector tutorial. Fiber Optic Connector for sale and buy fiber connector from Fiber-MART.COM
Introduction
Fibermart Fiber Optic Connector is a precision, demountable interface engineered to align and join optical fibers, enabling the rapid deployment and reconfiguration of optical links. It provides the critical physical connection between fiber cables and network equipment, patch panels, or other cables. Available in numerous standardized types like FC, SC, ST, LC, and high-density MPO/MTP, and compatible with all common transmission media (silica single-mode/multimode or plastic optical fiber), these components are the definitive elements for building reliable, high-performance fiber infrastructure across telecommunications, data centers, and enterprise networks.
 Features● Extensive Connector Type: Includes FC, SC, ST, LC, and MPO/MTP, etc. ● Comprehensive Polish & Media Compatibility: Available with Ultra Physical Contact (UPC) or Angled Physical Contact (APC). ● Precision Alignment Technology: Utilizes precision ceramic or composite ferrules, to ensure alignment of fiber cores for minimal insertion loss. ● Robust Mechanical Design: Engineered with durable housings, secure latching mechanisms, withstand repeated mating cycles and physical stress. ● Standardized Optical Performance: low insertion loss (typically ≤0.25 dB for single-mode), high return loss, and excellent repeatability. Principles
A fiber optic connector operates on the principle of creating a low-loss, temporary junction by precisely aligning the core of one optical fiber to the core of another fiber or an active device's port. The core component is the ferrule, a rigid sleeve (usually ceramic) that holds the stripped and cleaved fiber end with extreme accuracy. When two connector ferrules are mated within an adapter, their polished end-faces are brought into direct physical contact.
This precise physical contact minimizes the air gap between fibers, which is essential to reduce Fresnel reflection and insertion loss. For APC connectors, the end-faces are polished at an 8-degree angle, which directs any remaining reflected light out of the fiber core to achieve even higher return loss, critical for analog video and high-speed digital systems. The connector's external housing and latching mechanism (threaded, push-pull, or snap-in) ensure the ferrule alignment is maintained reliably against vibration and accidental disconnection.

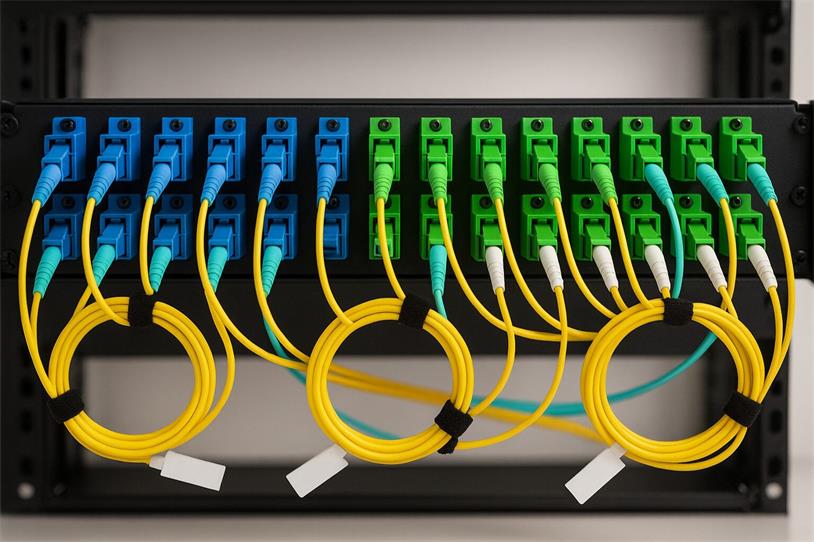

 Applications● Equipment and Transceiver Interfacing: Connecting optical transceivers (SFP, QSFP, etc.) to the structured cabling plant within data centers and telecom facilities. ● Fiber Distribution Frame and Patch Panel Patching: Enabling flexible cross-connections and circuit provisioning in main distribution. ● Customer Premises Equipment (CPE) Termination: Providing final connection point for ONU, optical network terminals (ONTs), FTTx,broadband access networks. ● Test, Measurement, and Laboratory Setups: Serving as the interface for test equipment like OTDRs, light sources, power meters, for prototyping systems in R&D. ● Industrial and Harsh Environment Connections: Utilizing ruggedized connector variants in manufacturing, transportation, and military applications.
|
