Custom 1xN,2xN Blade Module Fiber Splitter, SC/LC, UPC/APC

Press Esc key to close this popup
  • Custom 1xN,2xN Blade Module Fiber Splitter, SC/LC, UPC/APC

Custom 1xN,2xN Blade Module Fiber Splitter, SC/LC, UPC/APC

Product Item: #14910
P/N: PLC-BM-SL-C
Starting at: US$12.00

Please Choose:







Order Today, Ship before 04/02/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

Blade Module Fiber Splitter 1xN,2xN, SC/LC, UPC/APC Custom

FTTH PLC Splitter Terminal Solution How does the optical singnal transmit from OLT to ONU via PLC splitter

Learn More

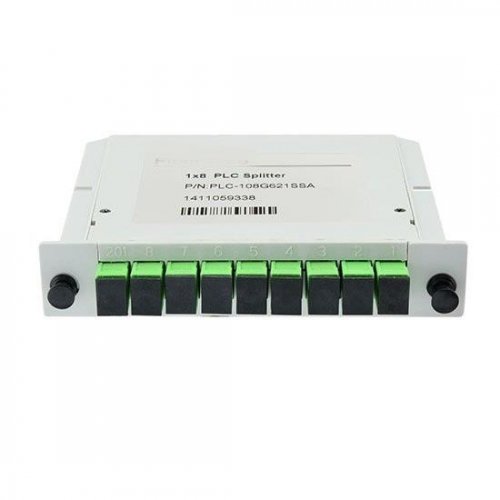

1/2×N Fiber PLC Splitter, Mini Plug-in Type, Singlemode

PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. Fiber-MART.COM provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 Mini Plug-in type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1/2×N Mini Plug-in Fiber PLC Splitter supports SC, LC connectors for choice.


Port Configuration 1/2XN Fiber Type G.657A
Connector Type SC/LC in APC/UPC Operating Wavelength 1260~1650nm
Typical Insertion Loss -- Max. Insertion Loss --
Max. Loss Uniformity -- Min. Return Loss 50dB
Max. PDL -- Min. Directivity 55dB
Max. Wavelength Dependent Loss 0.3dB Max. Temperature Dependent Loss(-40~+85°C) 0.5dB
Operating Temperature -40~+85°C Storage Temperature -40~+85°C











Features & Application




Good channel-to-channel Uniformity High Polarization Extinction Ratio Low Input Polarization Sensitivity Compact design, Custom and Rugged Packaging Available Telcorida GR-1209/1221 Qualified

Optical Signal DistributionData Communications,LAN and CATV SystemPassive Optical NetworksFTTX Deployment,FTTH NetworkDWDM and CWDM systemsOutside Plant Equipments





Accessories for Complete Outdoor 1/2xN PLC Splitter







Make to Order

Notes
1. When package style is ST, fiber diameter could be only 25=250um, connector could be only NO=none.
2. When package style is MM & FO, fiber diameter could be only 900um.
3. When package style is AB, fiber diameter could be 90=900um, 20=2.0mm, 30=3.00mm for optional.
4. When package style is MP, LGX, TR and 1U, "fiber diameter for input/output" & "pigtail length" could be left out, as the specific product would be made according to its configuration.



PLC Port Configutation Package Style Fiber Diameter(Input/Output) Connector(Input/Output) Pigtail Length
PLC=PLC Splitter 102=1×2 ST=Steel tube(bare fiber) 25=250μm NO=None 15=1.5m
  104=1×4 MM=Mini module 90=900μm SCA=SC/APC 20=2.0m
  108=1×8 FO=With fan-out 20=2.0mm SCU=SC/UPC 30=3.0m
  116=1×16 ABS=Pigtailed ABS box 30=3.0mm LCA=LC/APC XX=Customized
  132=1×32 MP=Mini plug-in type   LCU=LC/UPC
  164=1×64 LGX=Standard LGX   FCA=FC/APC
  202=2×2 TR=Mounted on a Fiber Splice Tray   FCU=FC/UPC
  204=2×4 1U=1U 19” rack mount chassis   STA=ST/APC
  208=2×8     STU=ST/UPC
  216=2×16     X=Customized
  232=2×32
  264=2×64

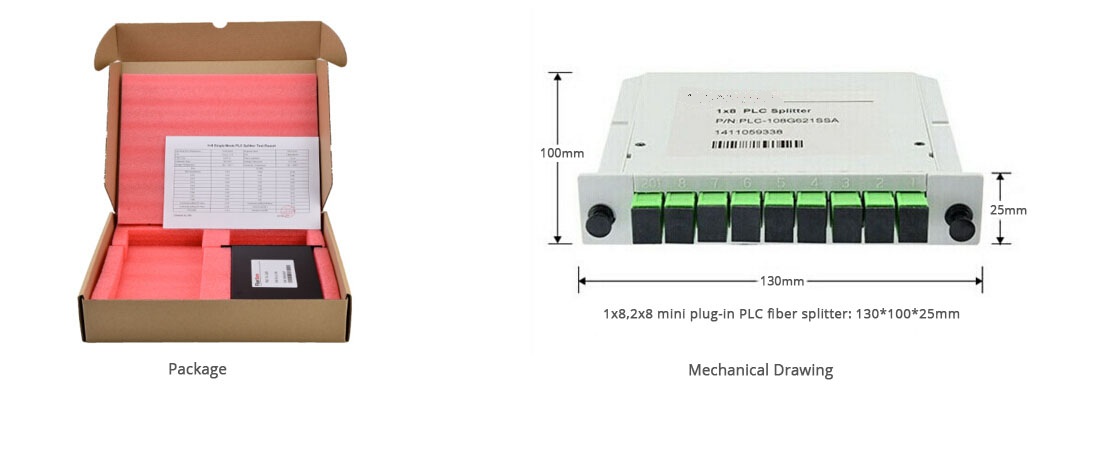

Package & Mechanical Drawing




Datasheet to Download

Customer Reviews

Displaying 1 to 4 (of 4 reviews)

by Daniel Lorry
Date Added: 02/27/2024
Fast shipping with good quality, working without problem 2x8 splitters

Rating: 5 of 5 Stars [5 of 5 Stars]
Custom 1xN,2xN Blade Module Fiber Splitter, SC/LC, UPC/APC Custom 1xN,2xN Blade Module Fiber Splitter, SC/LC, UPC/APC

by Lamose
Date Added: 11/17/2022
Well received 1x16 plgin type plc splitter with sc connector, all is fine!

Rating: 5 of 5 Stars [5 of 5 Stars]
Custom 1xN,2xN Blade Module Fiber Splitter, SC/LC, UPC/APC Custom 1xN,2xN Blade Module Fiber Splitter, SC/LC, UPC/APC Custom 1xN,2xN Blade Module Fiber Splitter, SC/LC, UPC/APC

by Natalya bosine
Date Added: 06/12/2018
Very good and professional, thx.

Rating: 4 of 5 Stars [4 of 5 Stars]

by Debra
Date Added: 05/30/2018
perfect quailty as expected. thx.

Rating: 4 of 5 Stars [4 of 5 Stars]
