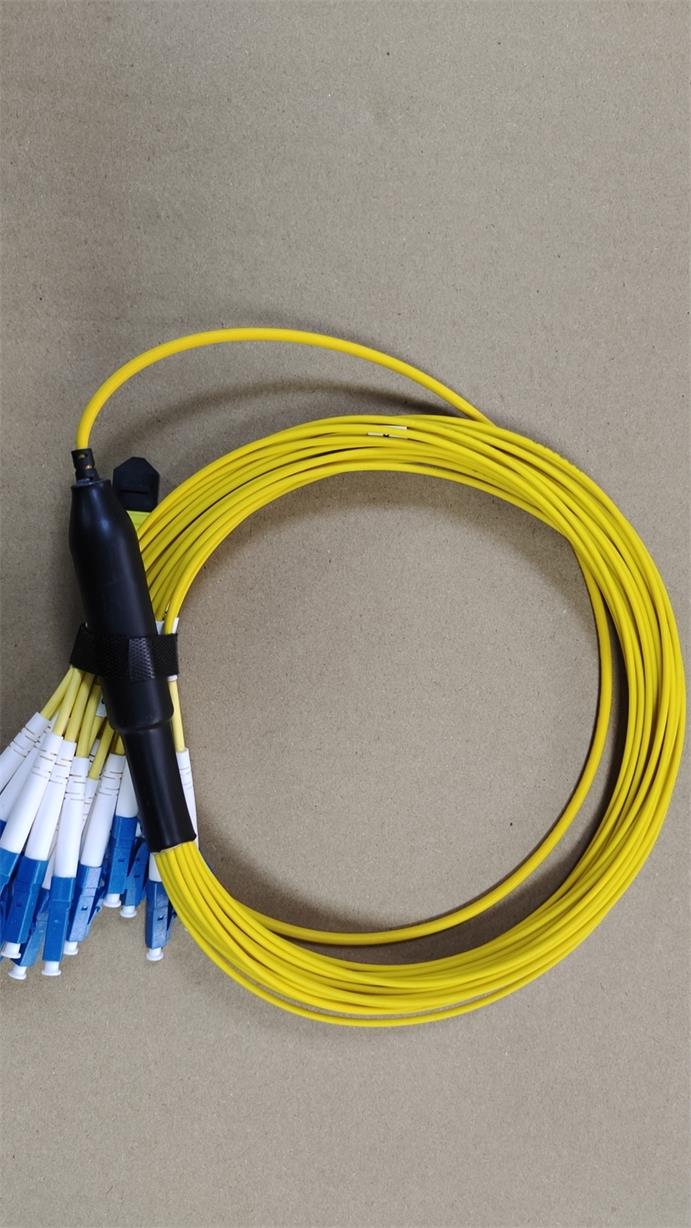

Customized 24 Fibers Single Mode 24 Strands MPO Harness Cable 3.0mm LSZH/Riser

24 Fibers, MPO to MPO, Single Mode Fiber, 24 Strands - MPO Harness Cable

MTP is the high dense degree of optical fiber pre-connect system,which is generally use in three areas:

The Data Center application with high dense degree environment; The optical fiber to the building; The internal connector application in fiber equipment.

Fiber-MART's MTP fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for10G upgrade to 40G/100G data center.

MTP Connector Types

MTP Male with Pins	MTP Female without Pins
Two other clearly visible features are the noses and guide grooves (keys) on the top side.(Note: Female connector need to connect with male connector type.)

Pre-terminated MTP Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Assembly Structure Illustration

The picture above is a 144 fibers trunk cable which is for your reference only.

MTP Trunk Fiber Patch Cables are terminated with MTP connector on both end.
1.The default diameter of the MTP cable is 3.0mm.
2.The default color of the OM2 MTP connector is Black.
3.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at [email protected] for other diameter standard.
4.Fiber-MART can also custom the pulling eyes, welcome to contact us if you need.

MTP&MPO Difference

The term MTP is a registered trademark of US Conec, it has been the main trend in European and American areas.

MTP/MPO Machinery & Testing Equipment

Parameter Reference

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m


Make To Order

About Part Number: FS=Fiber-MART; 12= 12 Fiber; SM= Single-mode; 2=12 standard; M=MTP; x= Length.
