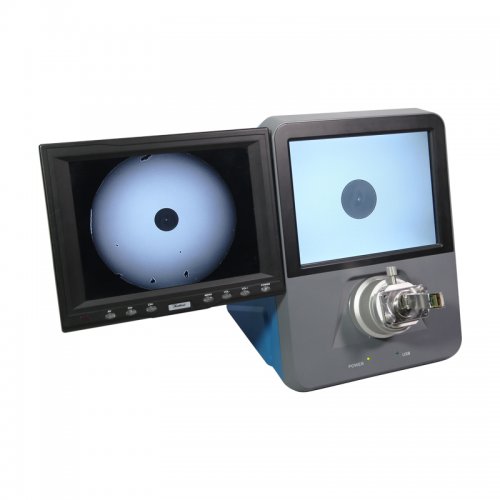

Dual Display Fiber Transceiver Endface Microscope

Product Item: #17333
P/N: FM-3000A-MF-S2/X5
US$1,880.00



Order Today, Ship before 04/03/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

FM-3000A-MF-S2/X5 Dual Test Fiber Transceiver Endface Integrated Microscope



Description

  • 400X magnification, 0.5 μm resolution, 200X magnification, 0.75 μm resolution, Or 80X magnification, 2μm resolution.
  • Diameter on 8" inch display, 400X: Φ80mm, 200X: Φ39mm
  • Illumination intensity adjustment button to identify the fiber core easily and clearly
  • X, Y axis adjustment control is smooth, no beat, no offset and focus unchanged under manual mode
  • Clear and bright image, average and even light spot for transparent and true fiber end face display.
  • Optional assorted adaptors for PC/APC end surface inspection
  • Optional built-in USB output to connect computer or SD card storage
  • Optional IEC/IPC image analysis software 95% accuracy and 99% consistency for analysis.



Configuration

  • FM-3000A-MF-S2/X5 Transceiver host 1pcs
  • SC-F, LC-F Adaptor 1pcs/type (test SC/LC PC transceivers)
  • 12VPower Supply 1pcs
  • User manual 1pcs
  • Warranty Card 1pcs



Model Feature Description
FM-3000A-MM-S4/X3 Manual Focus FM-3000A-MM-S4/X3 for Patch cord, jumper  fiber inspection;
FM-3000A-MF-S2/X5 Auto Focus FM-3000A-MF-S2/X5 for transceiver fiber inspection;
FM-3000A-MM-S2/X3 Auto Focus Analysis FM-3000A-MM-S2/X3 for mpo inspection;




Datasheet to Download
