Single-Channel Micro MEMS Variable Optical Attenuator

Fiber-Mart’s designs and manufactures innovative, photonic integrated circuit (PLC)based MEMS (micro electro-mechanical systems)Variable Optical Attenuator for next generation, dynamically configurable optical networks.

Fiber-Mart’s MEMS products base on electrostatic MEMS technology, The reflective mirror MEMS technology enables the creation of products with high attenuation levels and can be capabilities, this results in a new category of MEMS components that are designed to exceed specifications for performance, compactness, manufacturability and reliability. Micro VOA is a VOA product family using the MEMS chip with a movable mirror on the silicon. The mirror attenuates the laser light power by coupling the input beam onto the output fiber. The applied voltage to the device controls the mirror tilt angle, thus the desired attenuation amount. The Micro VOA is the best-in-class miniature VOA product with uncompromised performance and durability.

Features

Miniature design in a TO46 package
Hermetically sealed
Low insertion loss (IL)
Low polarization dependent loss (PDL)
High attenuation accuracy
Low power consumption
Fast response time
High optical power handling
Telcordia GR-1209 & GR-1221 compliant
Drive voltage:5V
Attenuation range:0-30dB

Applications

Power control and equalization in multi channel systems
Gain-tilt control in EDFAs
Receiver protection
OADM

Dimensions Diagram

Optical performance

Low Voltage: Attenuation Curve
High Voltage: Attenuation Curve

Ordering Information

Drive Voltage:	Attenuation	Wavelength	Attenuation Range:	Ripple:	Connector Type:	Fiber	Fiber
L 6.5 V	Type:	Range:	25 25dB *	N: Narrow-band	0 None	Protection:	Length:
H 15 V	B Bright	C 1525-1570nm	30 30dB *	B: Broadband	1 FC/UPC	0 No jacket	1: 1m
	D Dark	L 1570-1610nm	40 40dB *		2 FC/APC	1 0.9mm OD jacket	2: 0.5m
		S 850nm	* Vin at 6v		3 SC/APC		3: 0.6m
		H 1060nm			4 LC/UPC

For assistance customizing your MEMS Variable Optical Attenuator, please call us at +86-1-86-2786-1199 or email to [email protected].

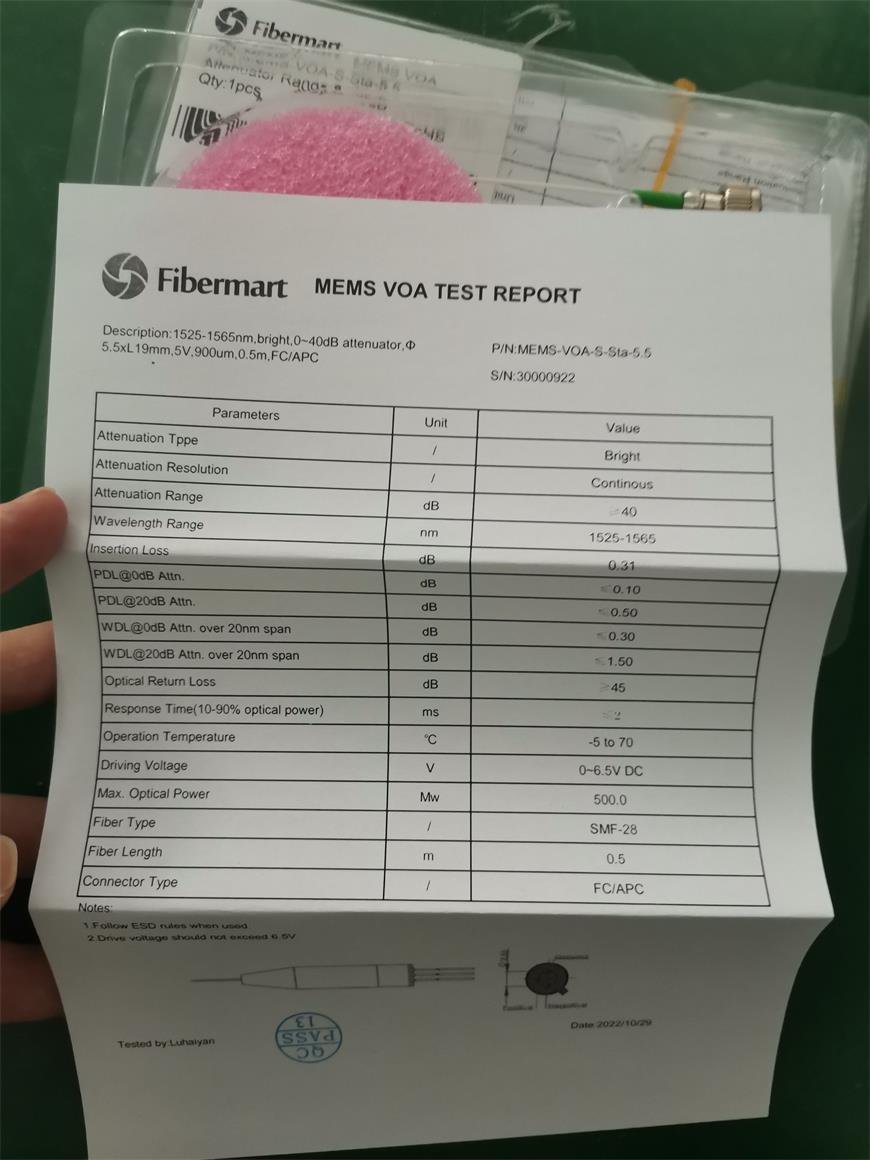

Parameter	Specification	Unit
Configuration			Bright	Dark
OperatingWavelengthRange			1260—1620	nm
Wavelength—tested			1330/1550	nm
AttenuationRange（(LV/HV)）			Min	30/40	30/40	dB
Insertionloss			Max	0.7	0.7	dB
PolarizationDependentLoss	0dB	Max	0.15	0.15	dB
0-10dB	Max	0.3	0.3	dB
10-20dB	Max	0.5	0.5	dB
Wavelength Dependent Loss (Flatness)	Broadband	0dB	Max	0.2	0.2	dB
0-10dB	Max	0.6	0.6	dB
10-20dB	Max	1.5	1.5	dB
Narrowband	0dB	Max	0.2	0.2	dB
0-10dB	Max	0.2	0.2	dB
10-20dB	Max	0.3	0.3	dB
OpticalReturnLoss			Min	45	45	dB
Repeatability			Max	0.1	0.1	dB
Wear-out			Min	109	109	Cycle
ResponseTime			Max	5	5	ms
TotalOpticalPower			Max	500	500	mW
Dimension	16×Φ5.4(L×D)	mm
FiberType	CorningSMF-28(9/125μm)
OperatingTemperature	-5~70	℃
StorageTemperature	-40~85	℃
PowerConsumption	10	mW
