FC/APC 1310nm 900um Single Grade Polarization Maintaining Isolator

Product Item: #1739
P/N: HPPMIS-FCA-13-S-1
US$173.75



Order Today, Ship before 06/08/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

Polarization Maintaining Isolator Single Grade 1M FC/APC 1310nm 900um



The High Power Isolator series products include high power isolator and high power collimator.The high power isolator series includes in-line type, beam expanded isolator, fiber in and free space out isolator and free space isolator etc.1310/1480/1550nm High Power Polarization Maintaining Isolator is one of in-line type isolator.They’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.



Characteristics

  • Low insertion loss
  • Low Extinction Ratio & High Isolation
  • High stability and reliability



Applications

  • EDFA
  • Fiber sensor
  • Fiber Optical Instrument



Specifications

Type Single Grade Dual Grade
Parameter
Type P P
Parameter
Operating Wavelength (nm) 1310,1480, 1550
Bandwidth (nm) ±20
Peak isolation (dB) 42 58
Isolation (at 23℃) (dB) ≥28 ≥48
Typ. Insertion Loss (at 23℃) 0.4 0.5
Insertion Loss (at-5 ~ +70 ℃) ≤0.55 ≤0.65
Extinction
Ratio (dB)
Type B ≥20 ≥20
(Both of axis working)
Extinction
Ratio (dB)
Type F ≥22 ≥22
(Fast axis blocked)
Return loss (Input/Output) (dB) ≥55
Power handling (mW) ≤300
Fiber Type Panda Fiber
Operating temperature (℃) -5~+70
Storage temperature (℃) -40 ~ +80
Dimensions (mm) φ5.5×L35

Above specifications are for devices without the connectors.

For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

The PM fiber and the connector key are aligned to the slow axis

Dimension


Order Information

PMIS Wavelength Type Grade Axis
Alignment
Pigtail Type Fiber
Type
Length Connector
PMIS 1310
1480
1550
S= Single stage
D = Dual Stage
P F=Fast Axis blocked
B=Both of axis working
S=Slow axis working
250=250um bare fiber
900=900um loose tube
3.0=3.0mm loose tube
2.0=2.0mm loose tube
5=Panda fiber 0.8=0.8
1= 1m
XX=Other
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
XX=Other






Fibermart PM Isolator Datasheet





Datasheet to Download

Add your Tags

Customized Service :



● If you need any customized products or services, please write your request in Order Remarks, or send an email to [email protected]



Get Quote or Checkout Online :



● To request a Quote or Checkout to pay online, simply add items into your cart and select your preferred method.



Free Shipping & No Tariff :



● Online Order over US$200 is Free Shipping (Not included Heavy Items like Outdoor Cable, Outdoor Cabinet etc),

● For US customer, Fibermart covers all customs duty and fees - no additional tariff charges.



Shipping Time :



● FedEx : 2-4 business days
● UPS : 2-5 business days
● DHL : 2-6 business days
● Shipment by Sea : 20-25 business days



Payment Method :



● PayPal (Online)

● Credit / Debit Card (Online)

● ABA Routing (US Local)

● T/T Wire Transfer (International)



Returns & Warranty :



● 1-Year Warranty

● 60-Day Returns

● 60-Day Exchange

● Limited Lifetime Warranty.

   Read full Return & Refund Policy



Net Term & Credit :



● Fibermart accept Net 30 and Net 60 payment terms, Contact Us for Credit Account by submit a credit form.



Volume Discount :



● Fibermart offers discount prices for large-volume order, Contact Sales Team for more details.



Customer Reviews

Displaying 1 to 4 (of 4 reviews)

by Hal Gates
Date Added: 04/08/2026

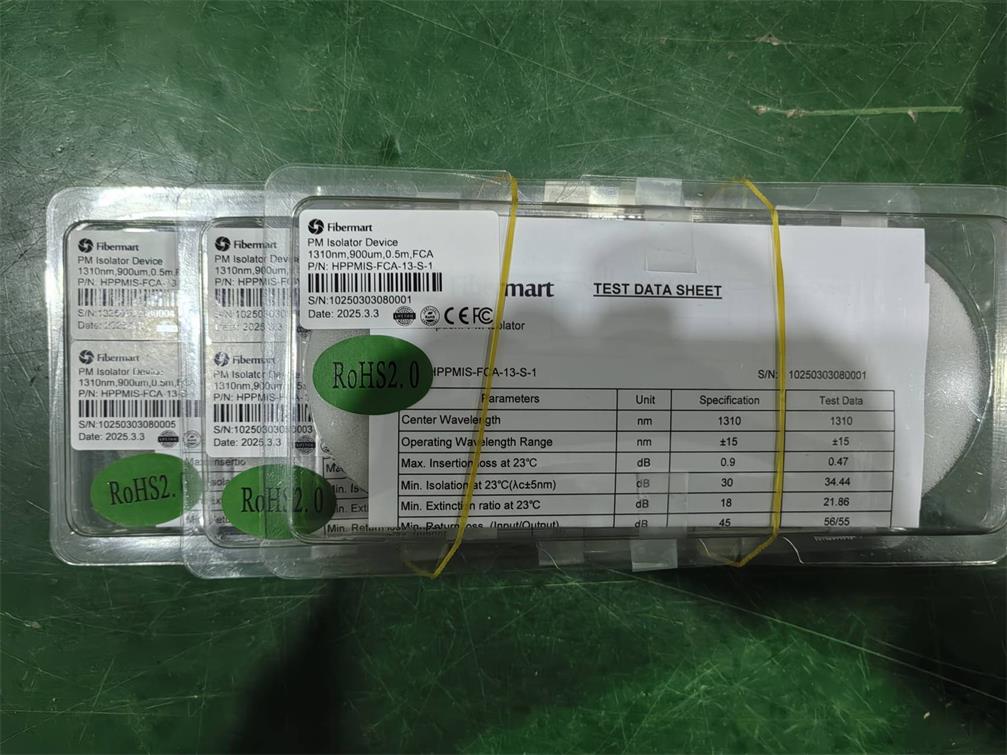

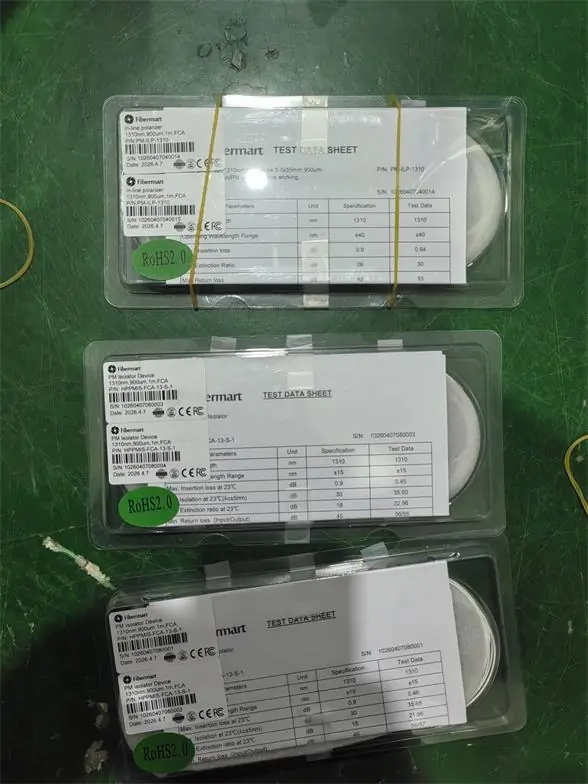

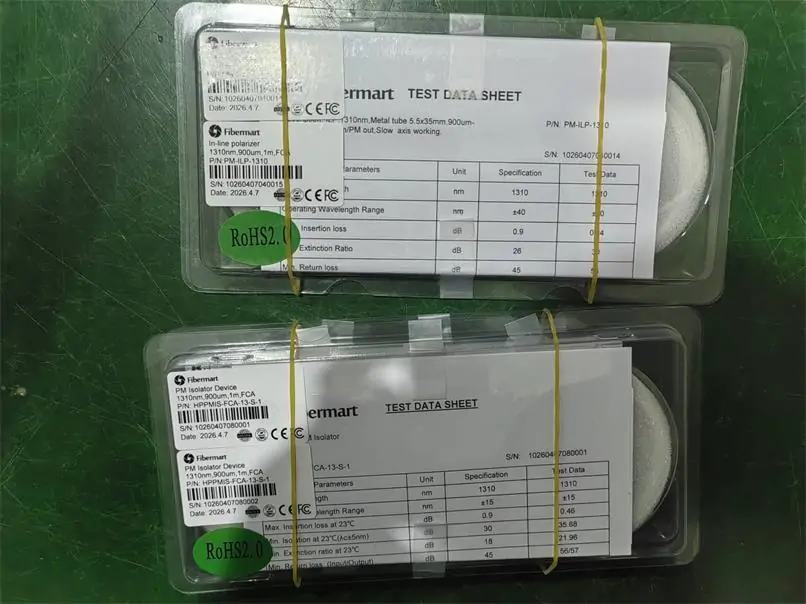

This high-performance PM isolator enhances our system's overall reliability with lower cost than ever, excellent.

Rating: 5 of 5 Stars [5 of 5 Stars]
FC/APC 1310nm 900um Single Grade Polarization Maintaining Isolator FC/APC 1310nm 900um Single Grade Polarization Maintaining Isolator FC/APC 1310nm 900um Single Grade Polarization Maintaining Isolator FC/APC 1310nm 900um Single Grade Polarization Maintaining Isolator

by Augustus Hastings
Date Added: 05/26/2025

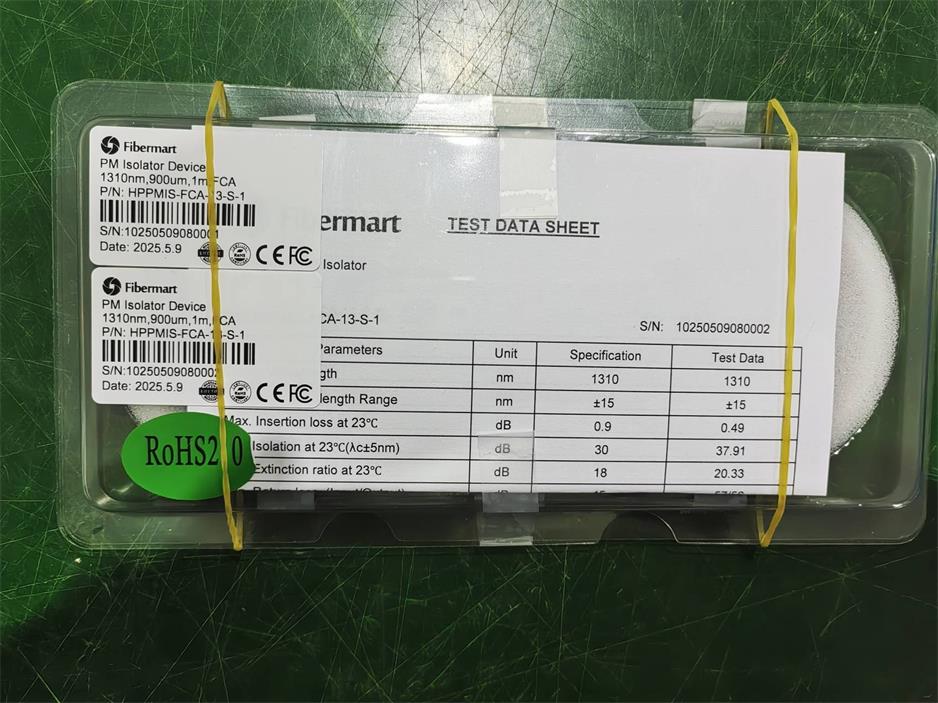

Fibermart's good quality pm isolator did help us a lot during our researches, I'm considering the next purchase.

Rating: 5 of 5 Stars [5 of 5 Stars]
FC/APC 1310nm 900um Single Grade Polarization Maintaining Isolator FC/APC 1310nm 900um Single Grade Polarization Maintaining Isolator

by Mikson Hilo
Date Added: 03/05/2025

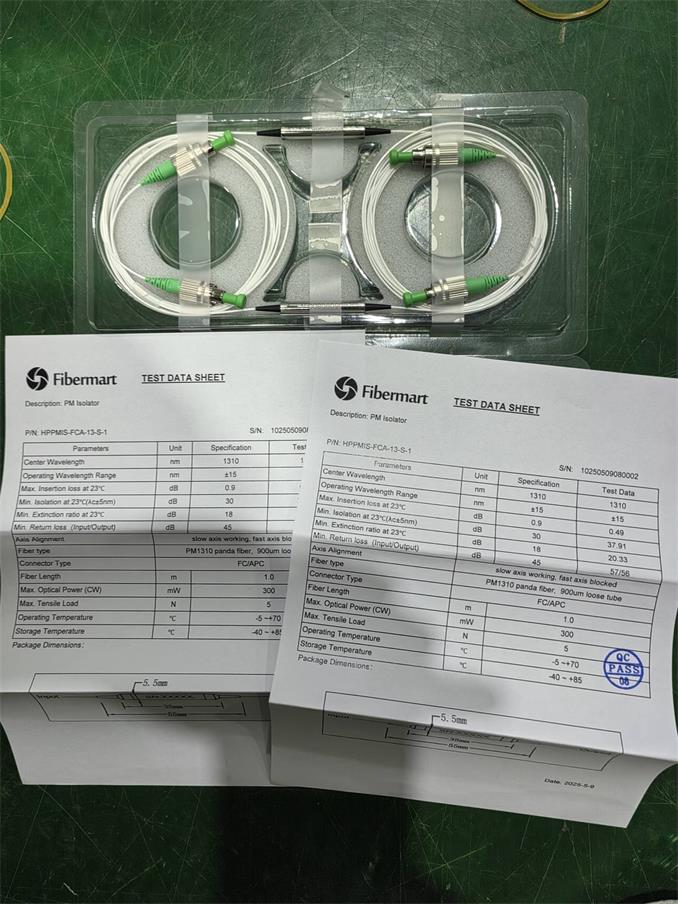

It is high quality pm isolator, we tested the isolation and il loss, everything was nice!
