FC/APC 1550nm 900um Single Grade Polarization Maintaining Isolator

Product Item: #1743
P/N: HPPMIS-FCA-15-S-1
US$163.75



Order Today, Ship before 06/08/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

Polarization Maintaining Isolator Single Grade 1M FC/APC 1550nm 900um



The High Power Isolator series products include high power isolator and high power collimator.The high power isolator series includes in-line type, beam expanded isolator, fiber in and free space out isolator and free space isolator etc.1310/1550/1064nm High Power Polarization Maintaining Isolator is one of in-line type isolator.They’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.

Characteristics

  • Low insertion loss
  • Low Extinction Ratio & High Isolation
  • High stability and reliability

Applications

  • EDFA
  • Fiber sensor
  • Fiber Optical Instrument


Specifications

Type Single Grade Dual Grade
Parameter
Type P P
Parameter
Operating Wavelength (nm) 1310,1480, 1550
Bandwidth (nm) ±20
Peak isolation (dB) 42 58
Isolation (at 23℃) (dB) ≥28 ≥48
Typ. Insertion Loss (at 23℃) 0.4 0.5
Insertion Loss (at-5 ~ +70 ℃) ≤0.55 ≤0.65
Extinction
Ratio (dB)
Type B ≥20 ≥20
(Both of axis working)
Extinction
Ratio (dB)
Type F ≥22 ≥22
(Fast axis blocked)
Return loss (Input/Output) (dB) ≥55
Power handling (mW) ≤300
Fiber Type Panda Fiber
Operating temperature (℃) -5~+70
Storage temperature (℃) -40 ~ +80
Dimensions (mm) φ5.5×L35

Above specifications are for devices without the connectors.

For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

The PM fiber and the connector key are aligned to the slow axis

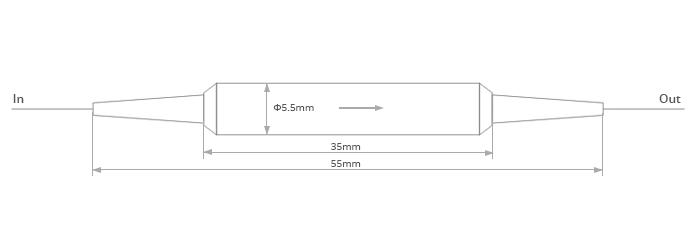

Dimension



Order Information

PMIS

Wavelength

Type

Grade

Axis
Alignment

Pigtail Type

Fiber
Type

Length

Connector

PMIS

1310
1480
1550



S= Single stage
D = Dual Stage





P





F=Fast Axis blocked
B=Both of axis working
S=Slow axis working



250=250um bare fiber
900=900um loose tube
3.0=3.0mm loose tube
2.0=2.0mm loose tube

5=Panda fiber





0.8=0.8
1= 1m
XX=Other



NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
XX=Other






Fibermart PM Isolator Datasheet





Datasheet to Download
