FM-E041U EPON ONU with 1-PON Port and 4 10/100M ports

EPON ONU with 1-PON Port and 4 10/100M ports

FM-E041U type ONU products fully comply with IEEE 802.3-2005 and the China Telecom EPON device technical specification (V2.1). It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to the local side device.

Product features:
Conform to IEEE802.3ah standard and meet CTC V2.1 technical requirementss
Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
Support frame filtering and suppression
Support standard 802.1Q Vlan function and support VLAN conversion
Support 4094 VLANs (802.1Q)
Support Dynamic Bandwidth Allocation (DBA) function
Support QoS, including traffic flow classification, priority marking, queuing and scheduling, traffic shaping
and traffic control, etc
Support IGMP Snooping
Support Ethernet port rate limit loop detection
Support power failure alarm
Support lightning protection for power supply and lightning protection for service port
Output level 85dBuv (input-6dbm)
AGC working range 10dB CNR ≥46dB@-6dBm (input)

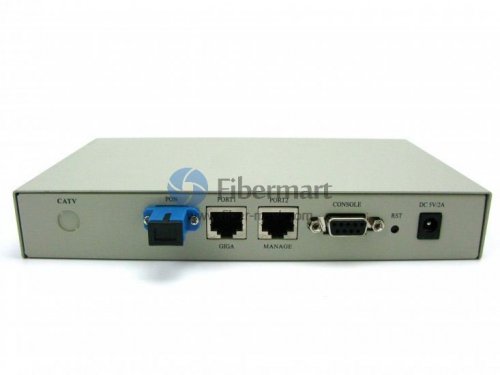

Port features:
1 PON ports (1.25G)
4 10/100M port
Physical features:
Physical dimension: 240*117*30 (L×W×H, unit: mm)
Power supply: 5VDC
Power consumption: 6W
Temperature:
Working temperature: 0℃~+45℃;
Storage temperature: -30℃~+60℃;
Relative humidity: 10℃~+90℃ (non-condensing)
