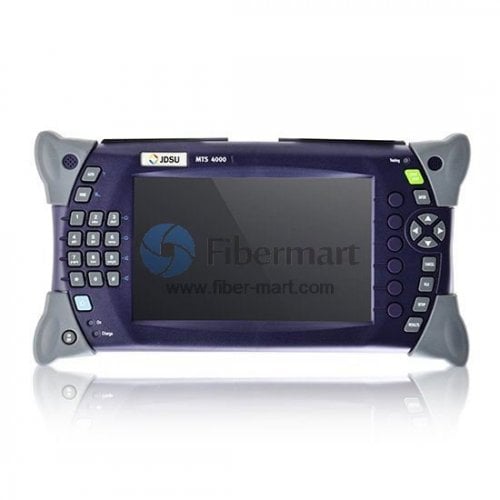

JDSU MTS-4000 OTDR( Optical Time-domain Reflectometer)

JDSU MTS-4000 OTDR( Optical Time-domain Reflectometer)

Description:

The JDSU MTS-4000 OTDR is a small, compact and handheld test platform designed for all phases of the network lifecycle, from the installation to the maintenance of Access /FTTx networks and triple-play services. Modular in design, the MTS-4000 offers field service technicians the highest performance and superior levels of scalability and upgradeability.

Highlights

• Large 7-inch indoor/outdoor color display
• Cost-effective, compact and handheld platform
• Multi-layer network solution from physical to services layer
• Highly scalable with up to 2 field-replaceable modules
• Connection checker with VFL, power meter and video inspection scope options
• Flexible connectivity for fast data transfer: 2xUSB 2.0, up to 1 Gb/s Ethernet

Key Features

• Optimized for access/FTTx networks
• Tests up to three wavelengths in one module
• 32/30 dB Dynamic Range at 1310/1550 nm
• High resolution and short dead zone for distribution fiber qualification
• Automatic traffic detection
• Source and power meter through OTDR port (optional)
• In-service testing dedicated wavelengths (1625 or 1650 nm)
• Automatic macro-bend detection
• Field-replaceable without tools
• Can be combined with PON Power Meter Module in the same T-BERD/MTS-4000 unit
• Up to 128,000 acquisition points with sampling resolution down to 4 cm
• Comprehensive suite of PC software tools for post-processing of test results, including FiberTrace (OFM-100) and FiberCable (OFM-200)

Applications:

1)Fiber test applications include OTDR, FiberComplete™ Automatic IL/ORL, CWDM Analyzer, PON/FTTH selective power meter , Connector Inspection with IEC Pass/Fail Analysis as well as Visual Fault Locator, Broadband Power Meter and CW light source.

2)Copper test applications include volt/ohm meter, time domain reflectometer (TDR), resistive fault locator, and wideband tones/spectal analysis to 30 MHz.

3)Triple-play service testing/IPTV and VoIP measurements from DSL access interfaces or standard Ethernet port.

4)VDSL and ADSL testing using Infineon Technologies chipset and licensed option for Dr. DSL® diagnostic solutions from Aware, Inc.

5)Enterprise IT network testing: Basic troubleshooting functionality combined with the advanced capability needed to turn up and maintain modern networks.

Family Comparison

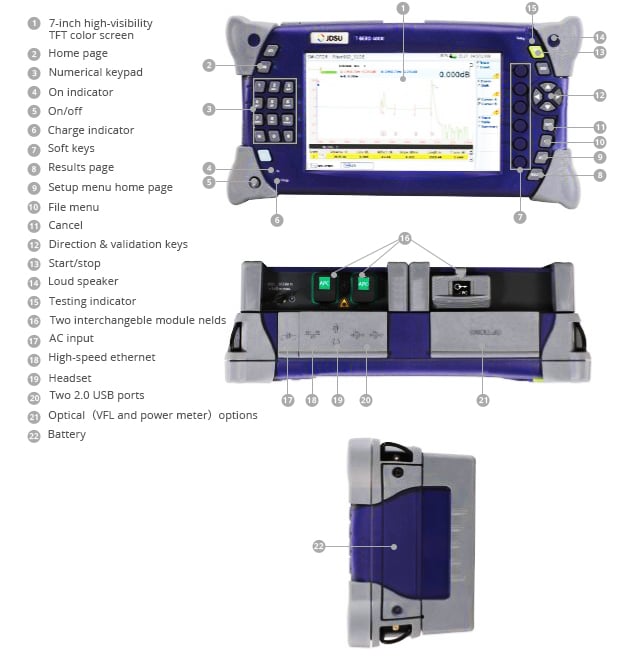

Design Efficiency:

Note: This price is only for module E4126LA with standard accessories, and we can also provide E4126MA. If you are interested in this, please feel free to contact me.

Fiber-Mart is specializing in supplying fiber optic components and network equipment, and we are trying to complete this system. For the OTDR, we provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of this JDSU MTS-4000 OTDR, please feel free to contact us. We will try our best to provide you the best service.
