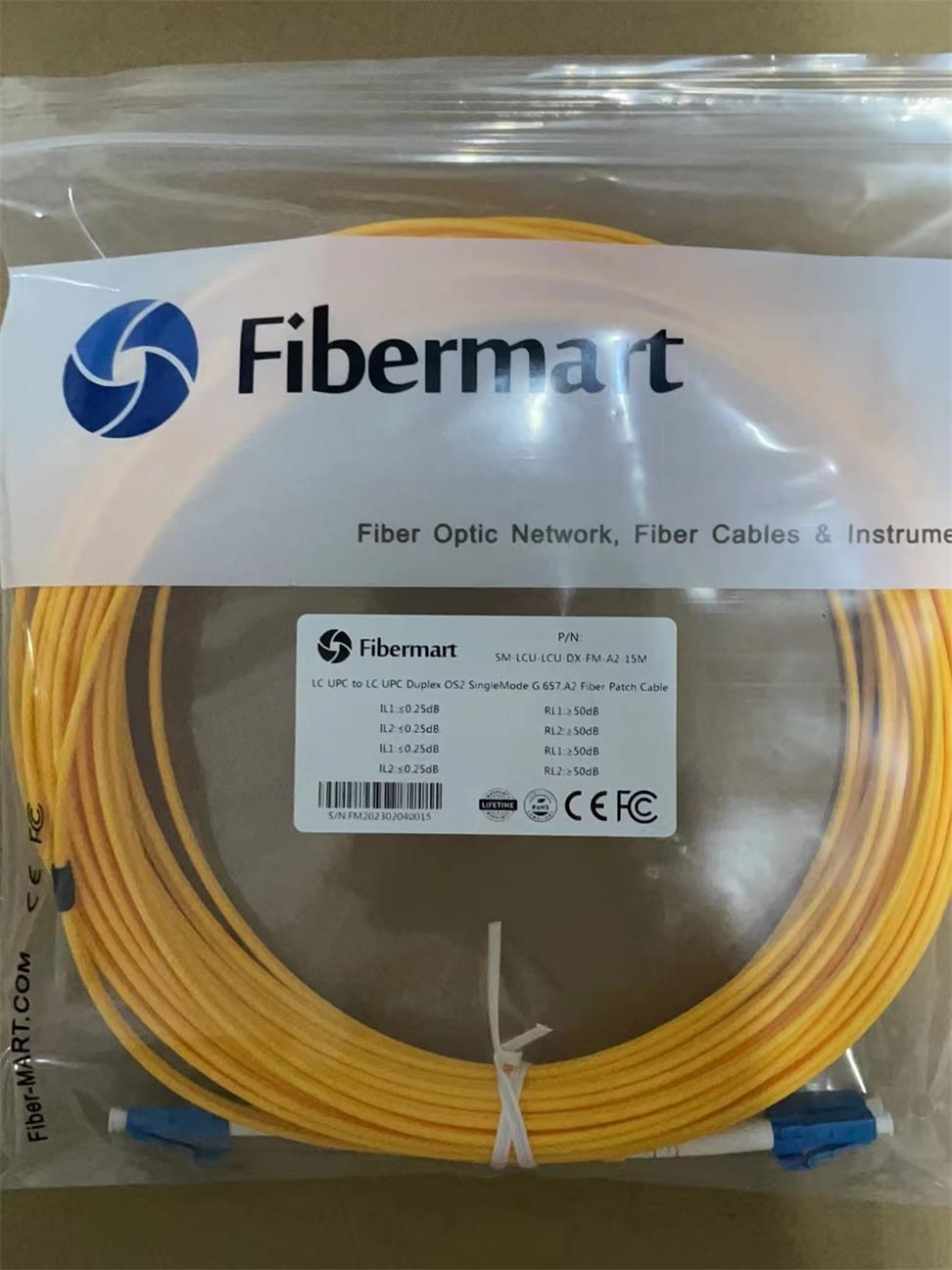

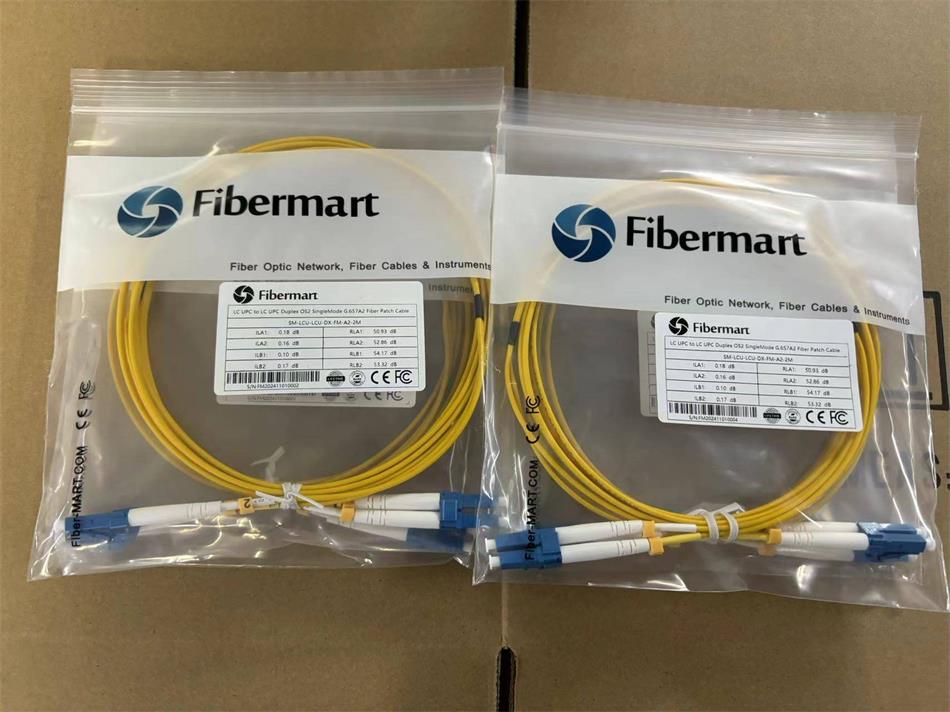

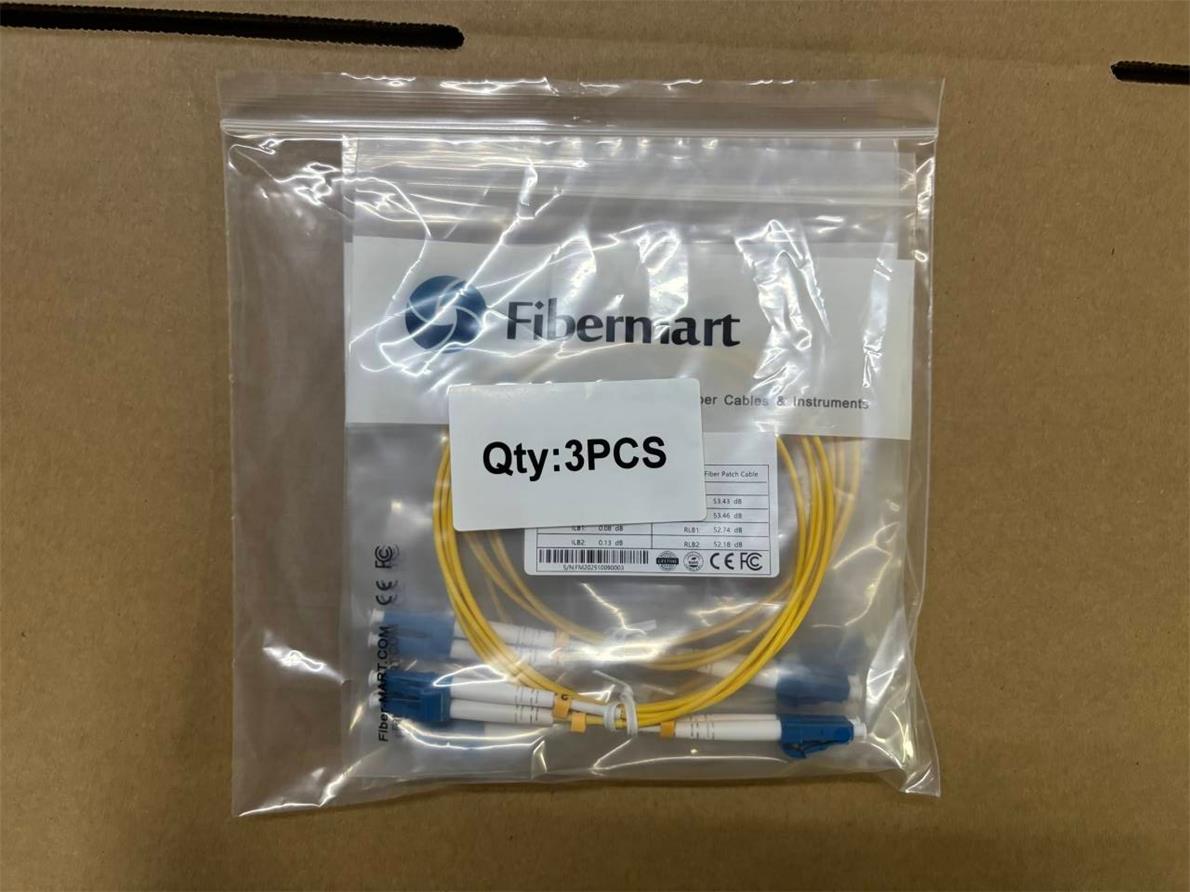

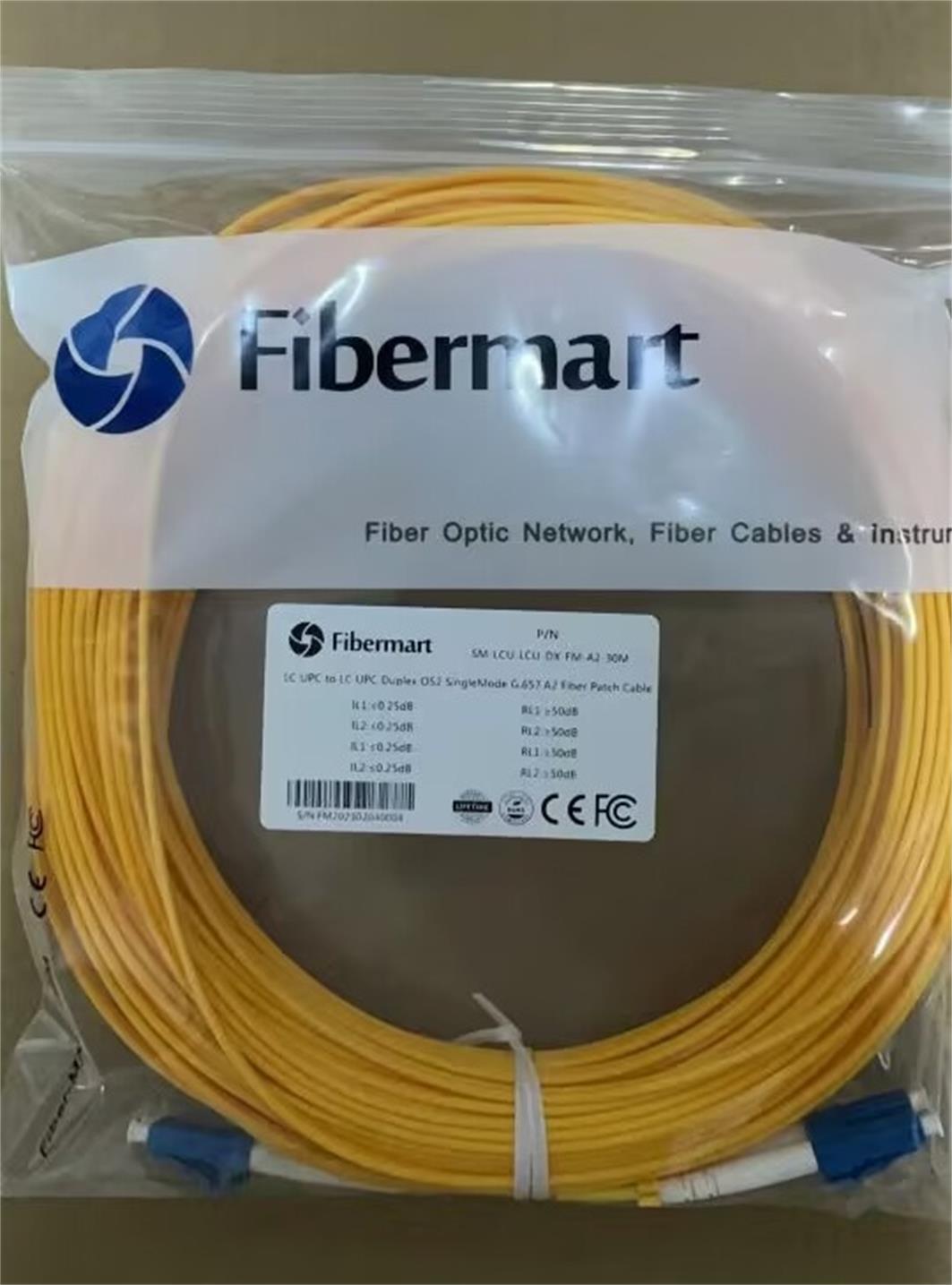

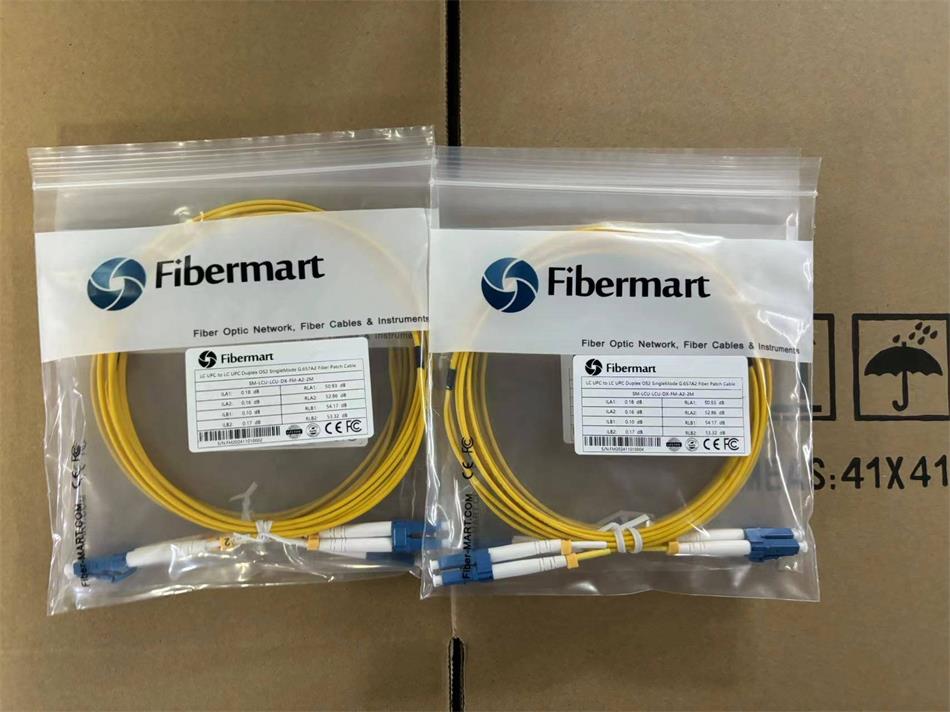

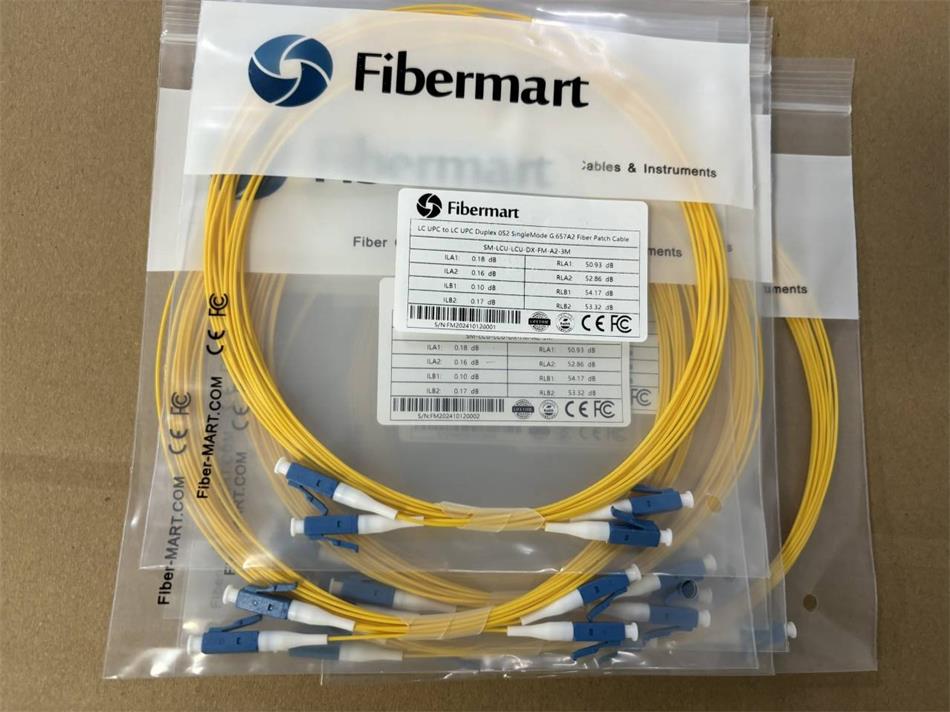

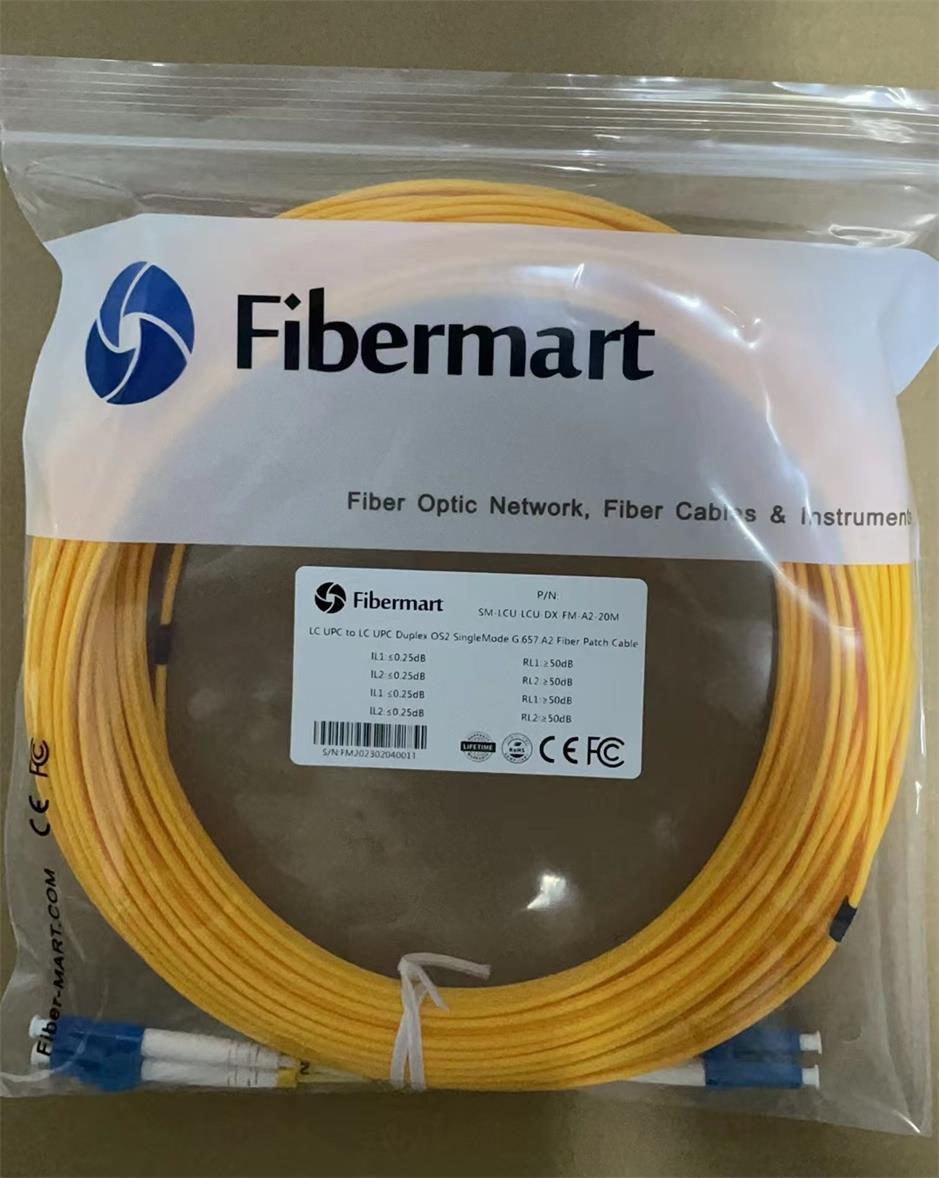

LC UPC to LC UPC Duplex OS2 SingleMode G.657A2 Fiber Patch Cable

The G.657.A2 bend insensitive fiber exhibits much lower optical power loss under bend conditions while remaining compatible with conventional cabling, designed to reduce optical loss when the cable is bent. It can add the capability of maintaining optical performance and reduce breaks in light dispersion upon twisting, bending or pressure for longer-lasting bandwidth with easy installation.

This fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Item Spotlights

• PVC (Riser) Flame-retardant Jacket
• Grade A Precision Zirconia Ferrule Connectors Ensure Low Loss
• Easy Polarity Management with Duplex Clips
• G.657.A2 Bend Insensitive Fiber & 7.5mm Min. Bend Radius
• Optical Testing Ensures Network Performance
• Compliant to TIA-604 (FOCIS)



Description

Connector Type	LC UPC to LC UPC	Fiber Grade	G.657.A2
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Min. Bend Radius (Fiber Core)	7.5mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Attenuation at 1310 nm	0.4 dB/km	Attenuation at 1550 nm	0.25 dB/km
Fiber Count	Duplex	Cable Diameter	2.0mm
Cable Jacket	PVC	Polarity	A (Tx) to B (Rx)
Operating Temperature	-20~70°C	SMF	Storage Temperature





Product Highlights

• Carrier-grade Cable Ensures Transmission Quality

Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.

• 10/5D Min. Bend Radius

The G.657.A2 fiber allows tighter cable bends for slack storage and routing.

• Zirconia Ceramic Ferrule

The precision ferrules can reach up to 500 times insertion lifespan.

• 90-150N Tensile Strength

The pull-resistant cable prevents cable breaking and prolongs the service life.



Custom and OEM

1. Customize Jacket Materials

PVC	OFNP	LSZH	OFNR

2. Customize Cable Color

Red	Blue	Grey	Purple

3. Customize Cable Connector

D4	SMA905	VF45	MU

4. Customize Cable Length

5M	10M	50M	100M

5. OEM Label, Printing and Boot Color

NOTE: If you need customize others, welcome to contact [email protected].
