LSZH Fiber Optic Breakout Indoor Cable-LSZH

Description
Datasheet
Tags
FAQ

MFG PART#:

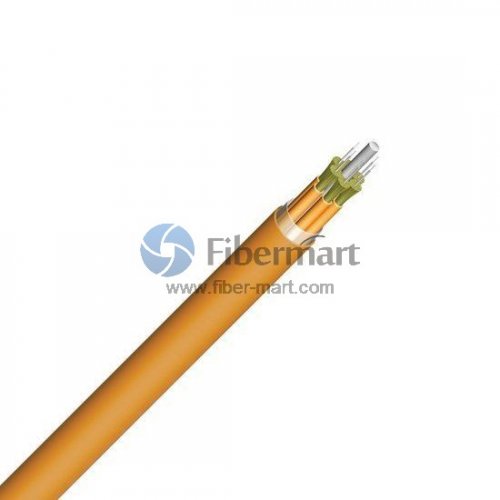

Breakout Fiber Optic Indoor Cable - LSZH

This kind of LSZH cable is stringently tested to IEC and VDE standards to ensure peace of mind when installing these cables where human life or valuable property are exposed to high risk of fire hazards. The fiber cable could be pre-connected, is widely applied as access building cable, interconnected between equipment, etc.

The breakout type cable contains several fibers, each with its own Jacket and all of them surrounded by one common jacket. Tight-buffered simplex cords are surrounded with aramid yarn and jacket, and then stranded around a central FRP member.

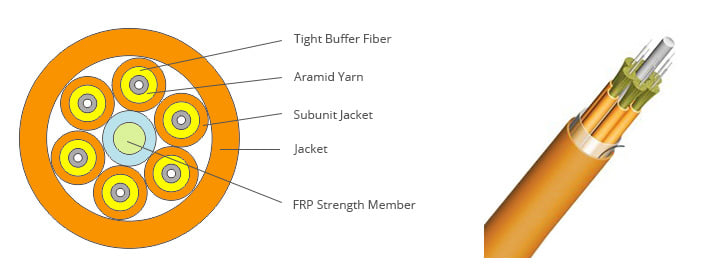

Cable Structure


Features Big capacity, 4~24 fibers are all available. LSZH fiber optic cable jacket is more fire-resistant compared with common PVC jacketed cables. Cable features an easily-strippable 900µm coating for easier handling. Non-metal FRP central strength member, light weight, anti-electromagnetic interference.		Application Ideal for backbone, horizontal, and intrabuilding runs Used in pigtails and patch cords Used in optical connections in optical communication equipment rooms and optical distribution frames Used in optical connections in optical apparatus and equipment

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart

Fiber-Mart

Cable Count	Out Sheath Diameter	Fiber Diameter	Weight	Minimum Allowable Tensile Strength (N)	Minimum Allowable Crush Load （N/100mm)	Minimum Bending Radius (MM)	Storage Temperature
	（MM)	（µm)	(KG)	short term	long term	short term	long term	short term	long term	（℃）
2	7.0	2.0	45.0	1500	600	1000	300	20D	10D	-20～+60
4	7.0	2.0	45.0	1500	600	1000	300	20D	10D	-20～+60
6	8.3	2.0	62.5	1500	600	1000	300	20D	10D	-20～+60
8	9.5	2.0	86.0	1500	600	1000	300	20D	10D	-20～+60
12	12.2	2.0	140.0	1500	600	1000	300	20D	10D	-20～+60
24	15.0	2.0	190.0	1500	600	1000	300	20D	10D	-20～+60

	G.652	50/125µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
@1300nm		≤1.0	≤1.0
@1310nm	≤0.36
@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
@1300nm		≥1200	≥600
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)	≤1260
