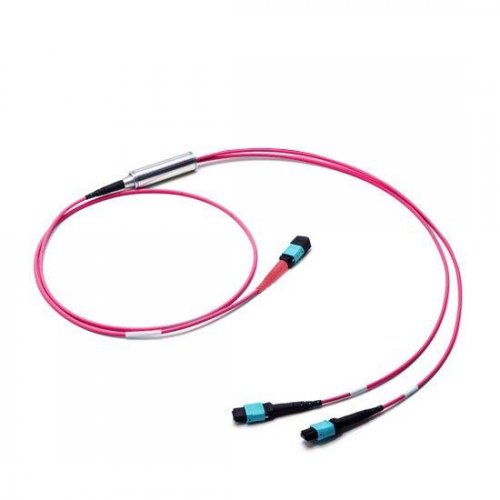

MTP-16 to 2x MTP-8 OM4 Multimode MTP Breakout Cable 16 Fibers, Polarity B, LSZH Bunch

Press Esc key to close this popup

MTP-16 to 2x MTP-8 OM4 Multimode MTP Breakout Cable 16 Fibers, Polarity B, LSZH Bunch

Product Item: #17571
P/N: FM16OM4-MTPF-2MTP-B-1M
US$78.00



Order Today, Ship before 06/08/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

16 Strand MTP-16(Female) to 2x MTP-8 Strand MTP(Female/Male) 16 Fibers 1x2 MTP Breakout Cable Interconnect Conversion Harness Cable



Fiber Connector 1xMTP to 2xMTP Jacket OD 3.0 mm
Fiber Category 50/125 m MM (OM4) Gender Female to Female/Male
Fiber Count 16 Test Wavelength 850nm
Insertion Loss 0.6dB Return Loss 20dB
Polarity Type B (Full-Flipped) Durability 500 times
Operating temperature -40 ~ 80C Fiber Grade G651
Flame Rating LSZH Outer Jacket Color Magenta



Features and Benefits



Eliminate termination errors, Min installation timeEach cable is 100%tested for low insertion loss and back reflectionOptimized performance - MTP and discrete premium connectorSupport 40GbE and 100GbE parallel optics networksCompliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard





Cable Polarity - Type B Crossover(Full-Flipped)





How to Choose The Right Fiber Optic Cable Type



PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VCSEL laser transmission and allows 10 Gig/second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.



Designation Fiber Dia.( m) Type 10Gbps Ethernet 10GBASE SR/LR 40Gbps Ethernet 40GBASE SR4/PLRL4 100Gbps Ethernet 100GBASE SR10/IR4
OM1 62.5/125 Multimode 33 Meters (SR) Not supported Not supported
OM2 50/125 Multimode 82 Meters (SR) Not supported Not supported
OM3 (Laser Optimized) 50/125 Multimode 300 Meters (SR) 100 Meters (SR4) 100 Meters (SR10)
OM4 (Laser Optimized) 50/125 Multimode 400 Meters (SR) 150 Meters (SR4) 150 Meters (SR10)
Singlemode 9/125 Singlemode 10 KM at 1310nm (LR) 1KM (PLRL4) 2KM (IR4 PSM)



Type B MTP 16-Female Cabling for 400/800GBASE SR10 QSFP-DD to 200GBASE SR4 QSFP56 Migration Networks





High Quality MTP Cable Guarantee



a.High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
b.3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
c.The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.




Fibermart MTP Breakout Cable Datasheet







Datasheet to Download
