The Ultimate Guide to MTP Cable and MPO Cable in Optical Networks

In the world of modern telecommunications and data transmission, the demand for faster and more reliable connectivity continues to drive innovations in networking technology. One such innovation is the development of MTP (Multi-Fiber Push-On) and MPO (Multi-Fiber Push-On) cables, which have revolutionized optical networks by offering high-density, high-performance solutions for connecting multiple optical fibers.

In this comprehensive guide, we will delve into the structures, functions, applications, and advantages of MTP and MPO cables in optical networks.

Understanding MTP and MPO Cables: An Overview

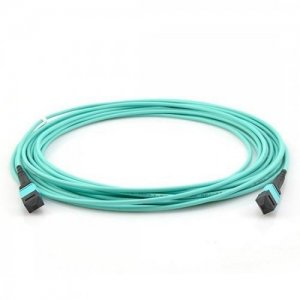

· MTP Cable

The term "MTP" stands for Multi-Fiber Push-On Connector, and an MTP cable is a type of optical fiber connector that allows multiple optical fibers to be connected simultaneously. It was first developed to meet the growing demand for high-speed data transmission in data centers and enterprise networks. MTP connectors feature a push-pull mechanism that enables quick and secure connections. These connectors can house anywhere from 12 to 72 fibers in a single plug.

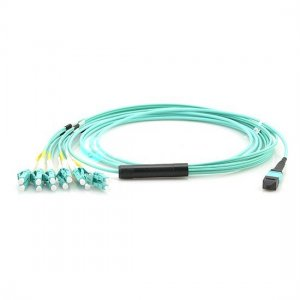

· MPO Cable

MPO stands for Multi-Fiber Push-On, which is a broader term that encompasses both connectors and cables. An MPO cable refers to a fiber optic cable that uses MPO connectors at its ends. These connectors can vary in configuration, accommodating different fiber counts and arrangements.

Structure of MTP/MPO Cables

MTP and MPO cables are designed with a common objective: to maximize the density of optical connections while ensuring efficient and accurate data transmission. Here's a breakdown of their typical structure:

1. Fiber Strands: At the core of MTP/MPO cables are individual optical fiber strands. These fibers carry data using light signals and are protected by a combination of coatings and jackets.

2. Connector Types: MTP/MPO connectors have a specific design that allows them to be easily plugged and unplugged. The connectors are equipped with guide pins and guide holes to ensure precise alignment during connection.

3. Polishing Type: The end faces of the fibers within the connectors are polished to reduce signal loss and improve overall performance. Two common polishing types are flat-polished and angled-polished.

4. Housings: MTP/MPO connectors are enclosed in housings that vary based on the number of fibers they can accommodate. The housings provide protection and support for the delicate fiber connections.

5. Cable Types: MTP/MPO cables come in various types, including single-mode and multi-mode variants. Single-mode cables are suitable for longer distances, while multi-mode cables are preferred for shorter distances within data centers.

Functions and Applications

The primary function of MTP and MPO cables is to simplify and expedite the process of connecting multiple optical fibers. This efficiency is particularly crucial in scenarios where numerous fibers need to be interconnected, such as:

1. Data Centers

Modern data centers handle colossal amounts of data, and rapid transmission between servers and switches is essential. MTP/MPO cables streamline these connections, saving both time and space.

2. Telecommunications Networks

In high-capacity telecommunication networks, MTP/MPO cables facilitate the aggregation and distribution of data, enabling seamless communication between different nodes.

3. Broadcasting

Broadcasting facilities rely on real-time data transmission. MTP/MPO cables ensure uninterrupted connectivity for transmitting high-definition audio and video signals.

4. Enterprise Networks

Large enterprises with extensive network infrastructure benefit from MTP/MPO cables for their scalability and reliability.

5. Cloud Computing

Cloud service providers use MTP/MPO cables to establish high-speed connections between servers, enhancing the efficiency of resource allocation and data processing.

Advantages of MTP/MPO Cables

The adoption of MTP/MPO cables offers a plethora of advantages that contribute to improved network performance and simplified infrastructure management:

1. High Density: MTP/MPO cables provide a much higher fiber count in a smaller form factor compared to traditional connectors, optimizing space utilization in racks and cabinets.

2. Rapid Deployment: The push-pull mechanism of MTP/MPO connectors allows for quick installations and upgrades, reducing downtime and operational disruptions.

3. Scalability: As network requirements grow, additional fibers can be easily incorporated using MTP/MPO cables without the need for extensive reconfiguration.

4. Reduced Complexity: The consolidation of multiple fibers into a single connector reduces cable clutter and minimizes the potential for errors during installation.

5. Cost-Effective: Despite their initial cost, MTP/MPO solutions become cost-effective in the long run due to their efficiency, reduced maintenance needs, and future-proofing capabilities.

6. High Performance: MTP/MPO connectors' precise alignment and polished end faces result in minimal signal loss and optimal data transmission rates.

MTP and MPO cables have transformed optical networks, offering a robust solution for high-density, high-performance connectivity. With their streamlined design, efficient functionality, and wide range of applications, these cables have become an integral part of modern data transmission.

By understanding their structures, functions, advantages, and applications, network professionals can make informed decisions that contribute to optimized network infrastructure and seamless data communication in the digital age. However, if you still need help understanding which product is better for you, then Fibermart can help you with that.
