Polarization Maintaining Polarizer In-line 1550nm

Product Item: #1399
P/N: PM-ILP-1550
Starting at: US$208.33

Please Choose:





  • Min:  2



  • ( Order Today, Ship before 08/06/2021, from U.S. or HK )
    • Description
    • Support
    • FAQ
    • Tags:

    1550nm polarization-maintaining In-line Polarizer



    Features

    • Low Insertion Loss
    • High Return Loss
    • High Extinction Ratio
    • High Reliability
    • High Stability

    Applications

    • Communication Systems
    • Test Instrumentations
    • Fiber Sensor
    • Research

    Specifications

    Parameters Unit Value
    Center Wavelength nm 1310, 1550 1064 980 850
    Operating Wavelength Range nm ±50 ±30 ±10 ±10
    Typ.Insertion Loss at 23℃ dB 0.3 0.4 0.7 0.8
    Max.Insertion Loss at 23℃ dB 0.5 0.6 0.9 1
    Min.Return Loss dB 50 50 50 50
    Typ.Extinction Ratio at 23℃ dB 30 30 28 28
    Min.Extinction Ratio at 23℃ dB 28 28 25 25
    Max.Optical Power(CW) mW 300
    Max.Tensile Load N 5
    Fiber Type - PM1550 PM980 PM980 PM850
        SMF-28E Hi1060 Hi1060 SM800
    Operating Temperature -5~+70
    Storage Temperature -40~+85
    For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower;
    The default connector key is aligned to slow axis;


    Package Dimension

    Polarization Maintaining Polarizer fibermart



    Ordering Information

    ILP-1111-2345-666

    1111 -Center Wavelength: 1550=1550nm,1310=1310nm,......,0850=850nm
    2 -Fiber type for input: 0=Panda fiber, 1=smf-28e, 2=hi1060,
    3 -Fiber type for output: 0=Panda fiber, 1=smf-28e, 2=hi1060,
    4 -Pigtail type: 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube
    5 -Fiber length: 0=0.8m,1=1m
    666 -Connector type: 0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC



    Parameters Unit Value
    CenterWavelength nm 1310,1550 1064 980 850
    OperatingWavelengthRange nm ±50 ±30 ±10 ±10
    Typ.InsertionLossat23℃ dB 0.3 0.4 0.7 0.8
    Max.InsertionLossat23℃ dB 0.5 0.6 0.9 1
    Min.ReturnLoss dB 50 50 50 50
    Typ.ExtinctionRatioat23℃ dB 30 30 28 28
    Min.ExtinctionRatioat23℃ dB 28 28 25 25
    Max.OpticalPower(CW) mW 300
    Max.TensileLoad N 5
    FiberType - PM1550 PM980 PM980 PM850
        SMF-28E Hi1060 Hi1060 SM800
    OperatingTemperature -5~+70
    StorageTemperature -40~+85
    Fordevicewithconnector,ILis0.3dBhigher,RLis5dBlower,ERis2dBlower;
    Thedefaultconnectorkeyisalignedtoslowaxis;







    If any option which is not indicate in your Ordering, please write your option or request in your ORDER to Fiber-Mart, and contact with us.



    You can place your Order Online in our website, you can send us a Purchase Order as a company, or you can request a Proforma Invoice Order to make everything clear!



    Get All the Support about Purchase



    Professional Service & Support is available in three different ways

    Chat live with Fiber-Mart

    Offline

    Please leave us a message, we'll respond to you as soon.
    8 am. to Midnight PST Mon. to Fri. or  Leave Message

    Email to Fiber-Mart

    E-mail Now

    Post a inquiry request and get a quick response from Fiber-Mart.

    Make a Call  +1 (707)-702-1573

    Or click on the button below to have us call you.
    8 am.- 5 pm. PST. Mon. to Fri.

    Get a Call






    Shipping Time


    FedEx IP: Within 1-4 business days
    FedEx IE: Within 4-6 business days
    DHL: Within 2-6 business days
    EMS: Within 4-15 business days
    UPS: Within 1-3 business days
    Hong Kong Post Airmail: Within 10-30 business days


    Payment:


    Paypal or Credit/debit card
    Wire Transfer, West Union


    Returns:


    Satisfactory return or item exchange


    Guarantee:


    Money back guarantee


    Warranty:


    Limited Warranty


    Volume pricing:


    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.



    Please tell us what you think and share your opinions with others. Be sure to focus your comments on the product.



    Customer Reviews


    by Ashutosh Pandey
    Date Added: 12/30/2020

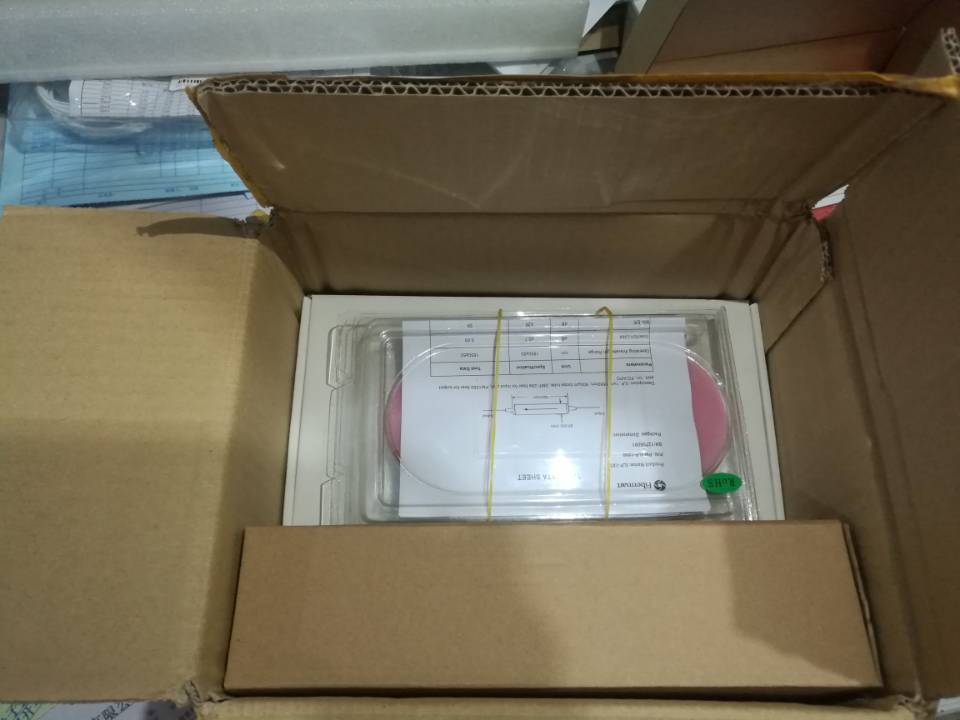

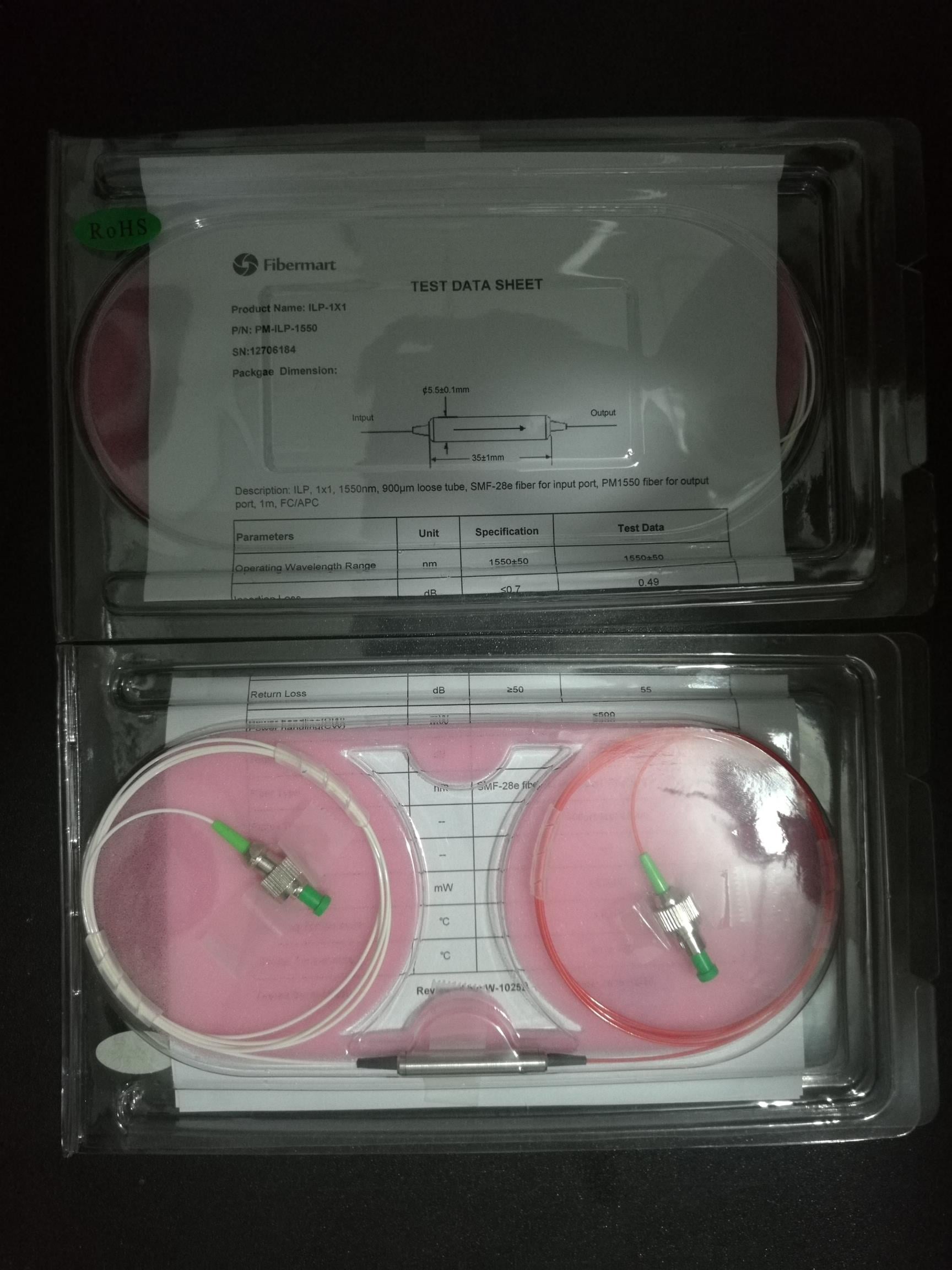

    Fibermart inline pm Polarizer is what we are looking for, it works good without any problem, nice pricing and fast delivery!
