NVIDIA MMA4Z00-NS Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver

Product Item: #17806
P/N: 800G-OSFP-SR8-TP
US$750.00



Order Today, Ship before 06/09/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

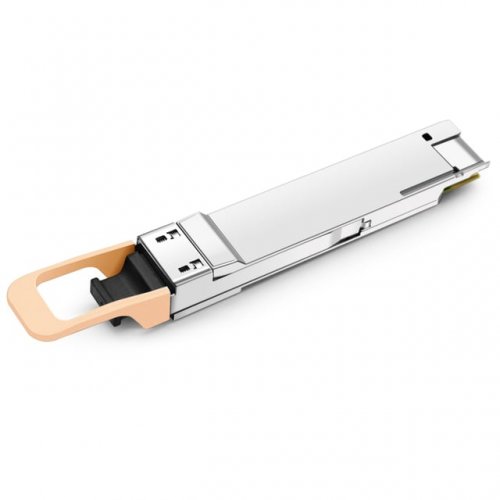

NVIDIA MMA4Z00-NS Compatible OSFP 2x400G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, DOM)



This Fibermart 800G OSFP SR8 is an Eight-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 800Gigabit Ethernet applications. This transceiver is a high-performance module for short-range data communication and interconnect applications.  It integrates eight data lanes in each direction with 8x53.125GBd. The length of OSFP SR8 is up to 60 meters over OM3 MMF or 100 meters over OM4 MMF. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm.



Product Details



NVIDIA Compatible MMA4Z00-NS Vendor Name FiberMart
Form Factor OSFP Max Data Rate 850Gbps(8x 106.25Gbps)
Wavelength 850nm Max Distance 60m on OM3/100m on OM4
Modulation Format PAM4 Host Required FEC
Connector Dual MTP/MPO-12 Voltage Supply 3.3V
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
TX Power -4.6~+4.0dBm Receiver Sensitivity <>
Operation Temperature 0 to 70~C (32 to 158~F) Maximum Power <>
Protocols CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu Application 800G Ethernet, Data Center Interconnect, Infiniband Interconnects
