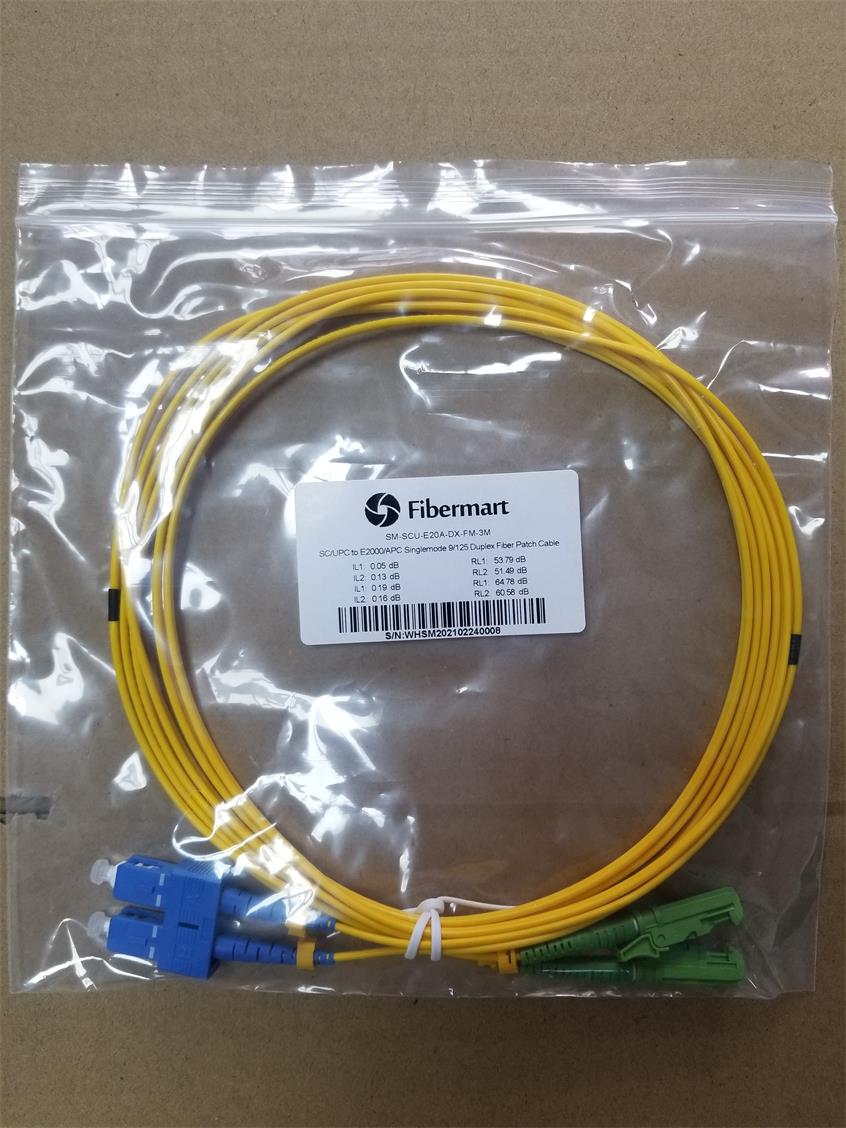

SC/UPC to E2000/APC Singlemode 9/125 Duplex Fiber Patch Cable

Press Esc key to close this popup
  • SC/UPC to E2000/APC Singlemode 9/125 Duplex Fiber Patch Cable

SC/UPC to E2000/APC Singlemode 9/125 Duplex Fiber Patch Cable

Product Item: #11611
P/N: SM-SCU-E2000A-DX-FM
Starting at: US$8.54

Please Choose:








Order Today, Ship before 03/24/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

SC/UPC to E2000/APC Singlemode Duplex Fiber Patch Cable



Fiber Patch Cables also known as fiber jumpers or fiber patch cords.Fiber optic patch cable is one of most commonly used components in fiber optic network.

The Definition of 'mode' as in multimode refers to the transmitting mode of the fiber optic light in the fiber optic cable core. Singlemode fiber optic patch cables send one light signal at a time, and can be used for longer runs than multimode because they have more resistance to attenuation.

The core of a single mode fiber optic cable is 9/125μ (micron).

Single mode fiber optic patch cables can support gigabit ethernet applications for up to 10 kilometers.



Characteristics

  • SC/UPC to E2000/APC Connectors
  • Single-mode duplex fiber optic cable
  • Complete with orange OFNR rated riser/jacket
  • All of our fiber optic patch cables feature the high degree connectors
  • 100% optically tested to ensure high performance
  • Micron: 9/125um
  • Color: Yellow



Specifications

Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1550 1310,1550 1310,1550 1310,1550
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature -40~75 -40~75 -40~75 -40~75
Storage temperature -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9




Fibermart Fiber Patch Cable Datasheet







Datasheet to Download

Customer Reviews

Displaying 1 to 2 (of 2 reviews)

by Marionette Shahadi
Date Added: 11/23/2023
Fast shipping in 4 days arrived, good package and high quality as well as stable connnection.

Rating: 5 of 5 Stars [5 of 5 Stars]
SC/UPC to E2000/APC Singlemode 9/125 Duplex Fiber Patch Cable

by Marilie Walk
Date Added: 03/12/2021
We got this sc to e2000 sm fiber patchcord for our local project, they work very good and with nice quality! GOOD!

Rating: 5 of 5 Stars [5 of 5 Stars]
SC/UPC to E2000/APC Singlemode 9/125 Duplex Fiber Patch Cable SC/UPC to E2000/APC Singlemode 9/125 Duplex Fiber Patch Cable



Please tell us what you think and share your opinions with others. Be sure to focus your comments on the product.
