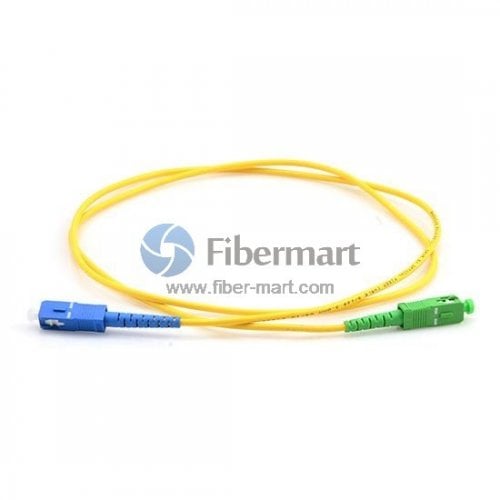

SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable

Product Item: #11674
P/N: SM-SCU-SCA-SX-FM
Starting at: US$2.74

Please Choose:








Order Today, Ship before 04/02/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

SC/UPC to SC/APC Singlemode simplex Fiber Patch Cable



Fiber Patch Cables also known as fiber jumpers or fiber patch cords.Fiber optic patch cable is one of most commonly used components in fiber optic network.

The Definition of 'mode' as in multimode refers to the transmitting mode of the fiber optic light in the fiber optic cable core. Singlemode fiber optic patch cables send one light signal at a time, and can be used for longer runs than multimode because they have more resistance to attenuation.

The core of a single mode fiber optic cable is 9/125μ (micron).

Single mode fiber optic patch cables can support gigabit ethernet applications for up to 10 kilometers.



Characteristics

  • SC/UPC to SC/APC Connectors
  • Single-mode simplex fiber optic cable
  • Complete with orange OFNR rated riser/jacket
  • All of our fiber optic patch cables feature the high degree connectors
  • 100% optically tested to ensure high performance
  • Micron: 9/125um
  • Color: Yellow



Specifications

Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1550 1310,1550 1310,1550 1310,1550
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature -40~75 -40~75 -40~75 -40~75
Storage temperature -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9






Fibermart Fiber Patch Cable Datasheet







Datasheet to Download

Customer Reviews

Displaying 1 to 7 (of 7 reviews)

by Daren Byrd
Date Added: 03/05/2024
This cable is cost-effective and stable to connect, its loss is controlled well, will buy again.

Rating: 5 of 5 Stars [5 of 5 Stars]

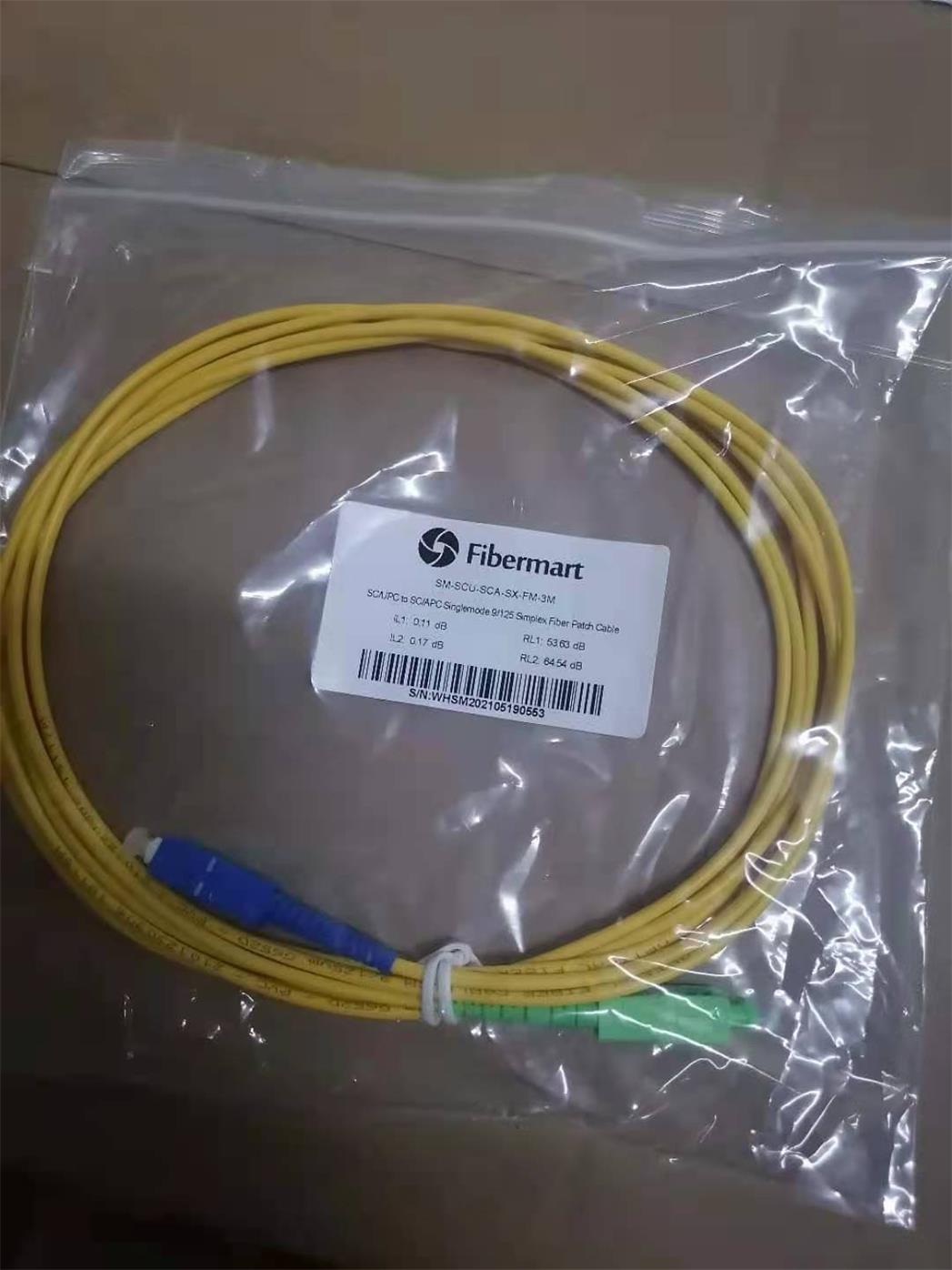

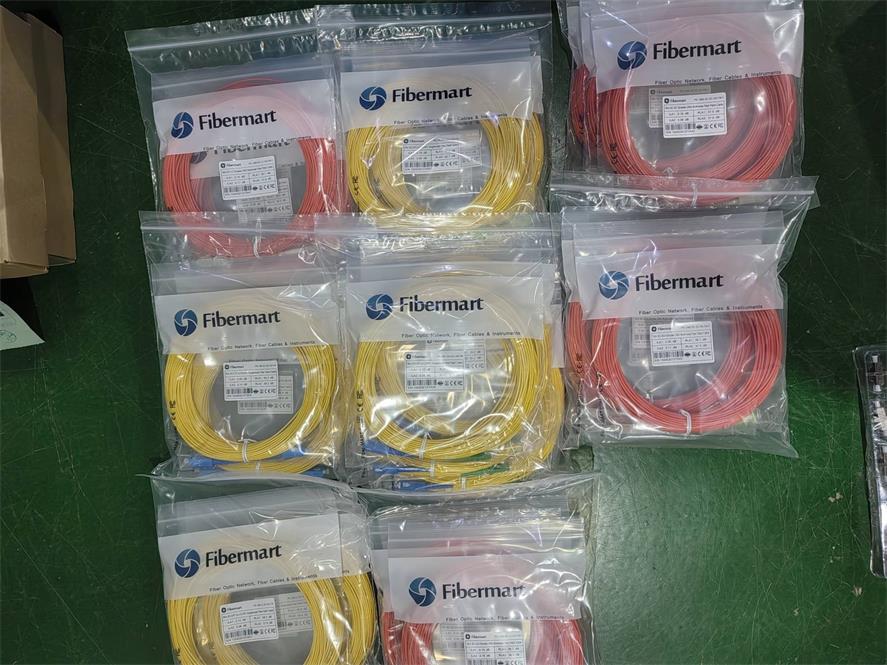

SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable

by Thomas Theuerkorn
Date Added: 11/21/2023
Good quality, this cable is working and connecting well in our workshop, no question.

Rating: 5 of 5 Stars [5 of 5 Stars]

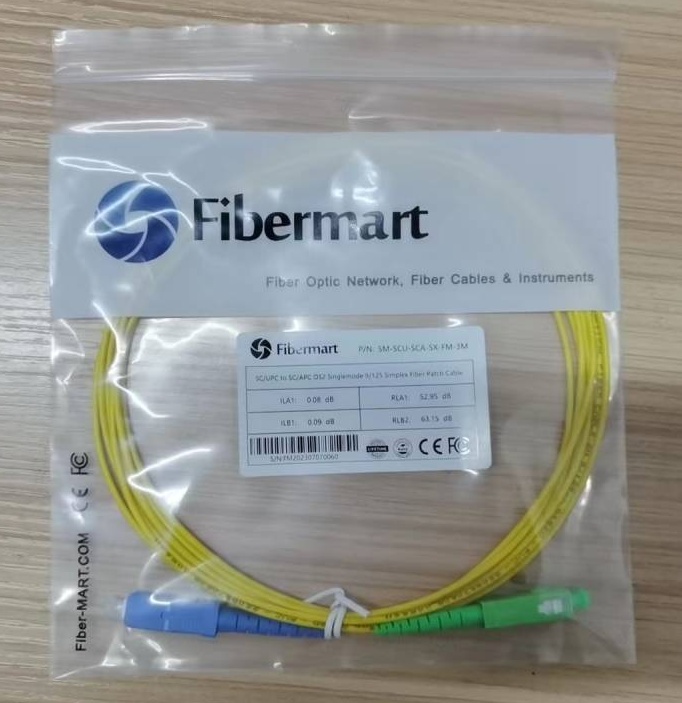

SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable

by Tracy Cox-Zimmerman
Date Added: 08/01/2023
Fast shipping, the package is perfect and the cable also is good, which is stable to connect.

Rating: 5 of 5 Stars [5 of 5 Stars]
SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable

by Ho Lu
Date Added: 07/13/2023
Fast shipping and high quality, the cable works well,which loss is low.

Rating: 5 of 5 Stars [5 of 5 Stars]

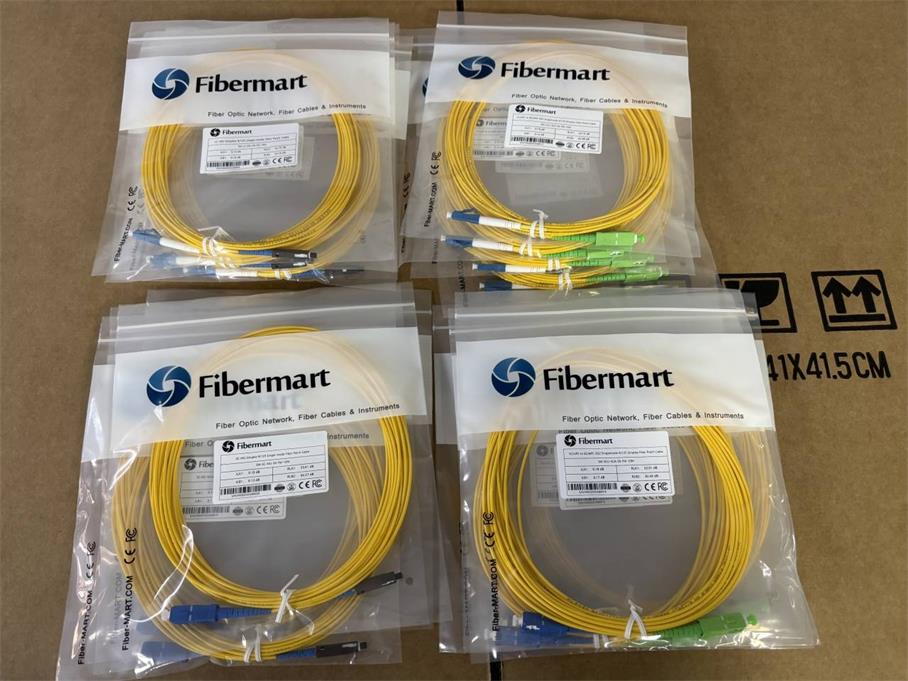

SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable

by Kenny Wolff
Date Added: 12/06/2022
This Fibermart's SC/UPC to SC/APC single-mode fiber patch cable has stable transmission, convenient connection and high quality.

Rating: 5 of 5 Stars [5 of 5 Stars]
SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable

by Jason Bell
Date Added: 05/31/2021
Well received with no problem!

Rating: 4 of 5 Stars [4 of 5 Stars]

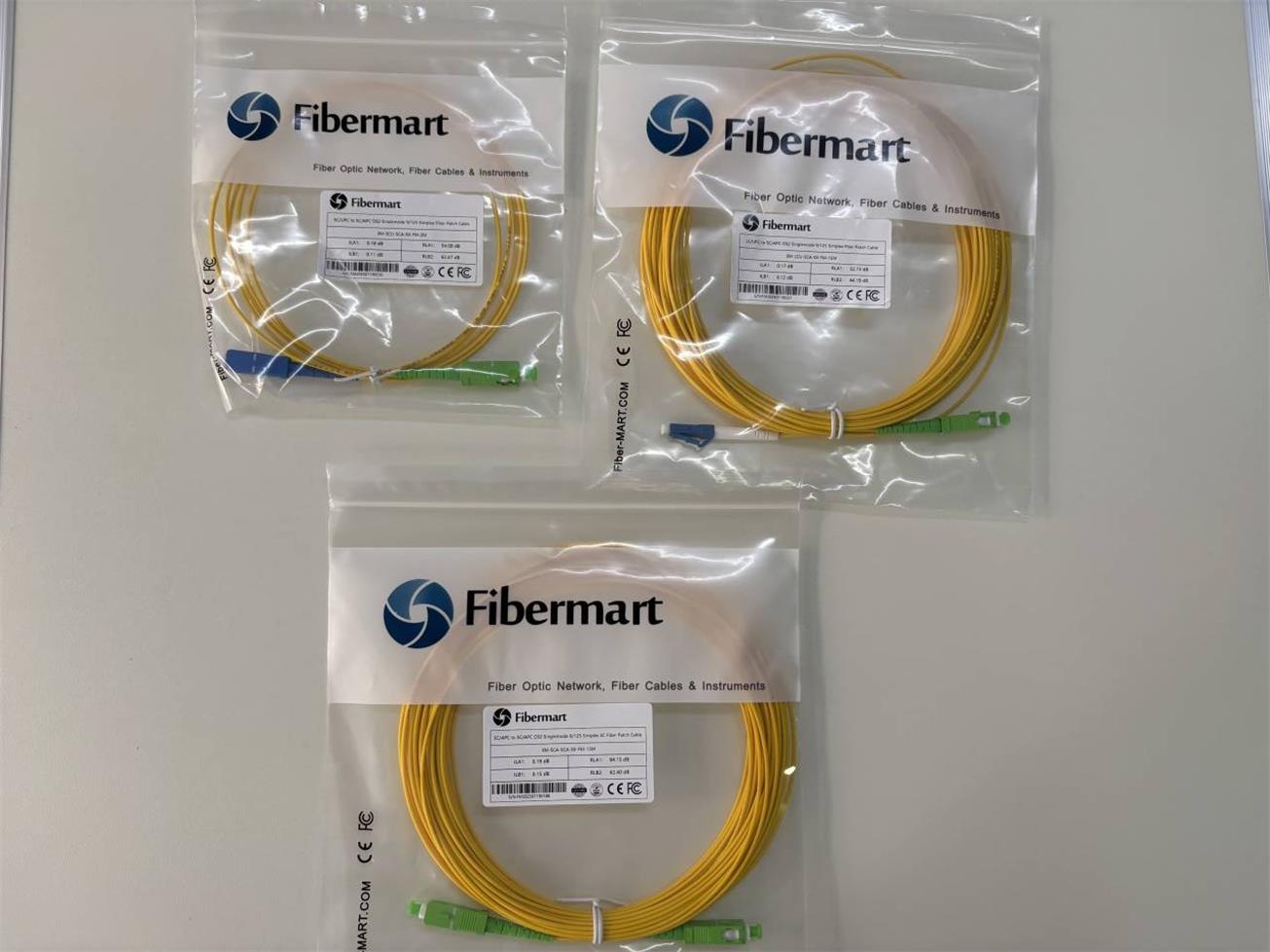

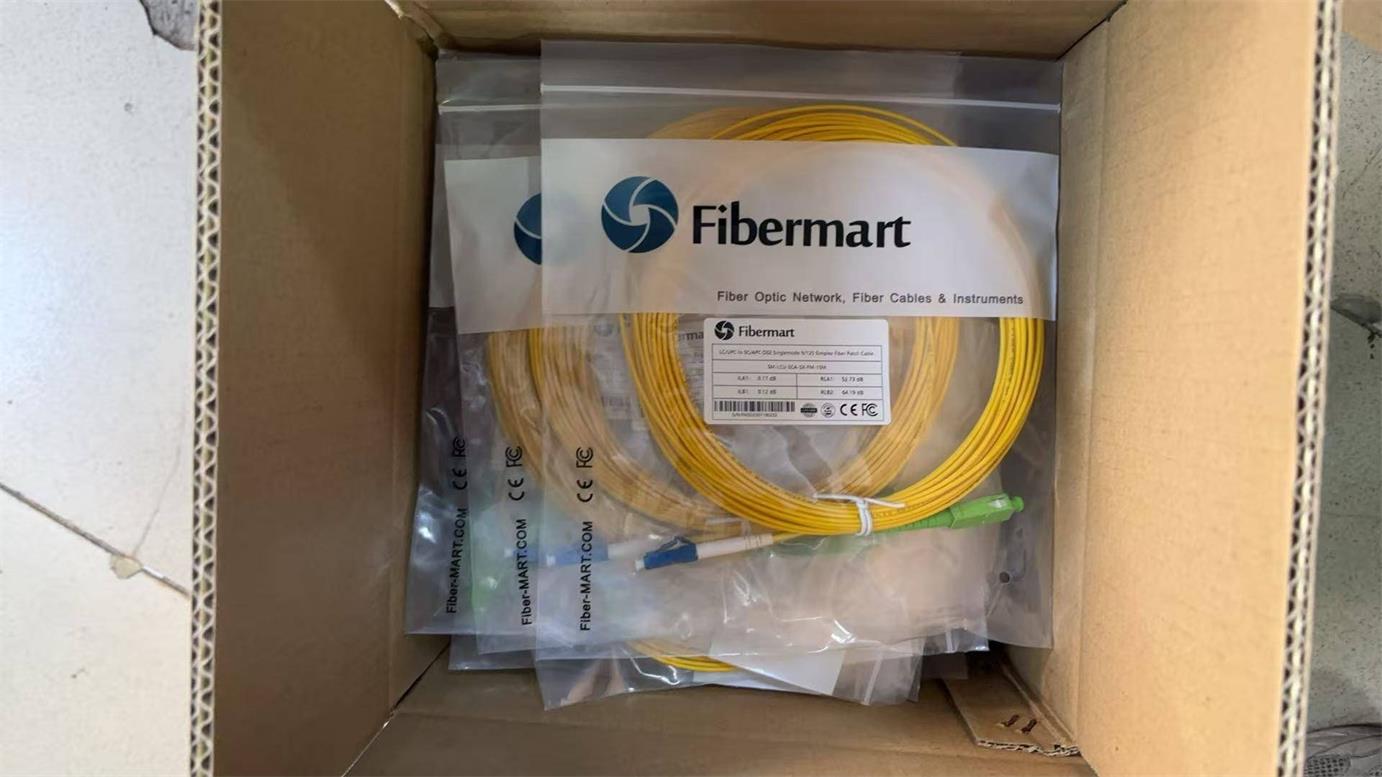

SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable

by Zairene
Date Added: 03/15/2021
Excellent sc upc to sc apc patch cable from fibermart! Like it will buy more pcs!

Rating: 5 of 5 Stars [5 of 5 Stars]

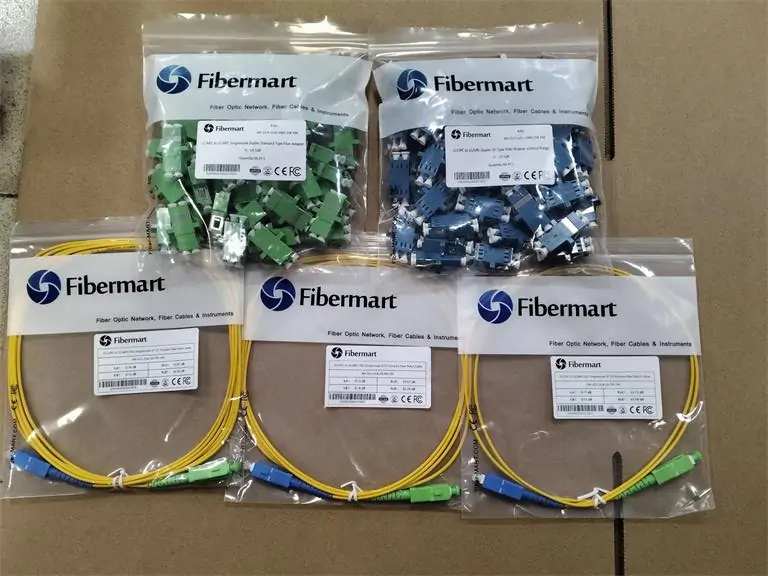

SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable SC/UPC to SC/APC OS2 Singlemode 9/125 Simplex Fiber Patch Cable
