ST-600 FTTH Handheld Fusion Splicer Kit

The machine employs high-speed image processing technology and special positioning technology, allowing the total process of fusion splicing to be finished within 10 seconds. Large-screen LCD clearly demonstrates every stage of optical-fiber fusion splicing. As the machine is compact in size, light in weight, it is ideal to work in outdoor environment. In addition, it is easy to operate, fuses fast, with low fusion loss, especially suitable for the construction and maintenance of the optical-fiber works built in a wide range of sectors including telecommunications, broadcast & TV, railway, petrochem, electricity, army, police, as well as teaching and research of scientific institutes. In order to finish the fusion operations more accurately, please thoroughly read this Manual.

Features:

*Small, light , long battery life
*4 motors accurate core alignment
*7s fast splicing, 26s intelligent heating
*More than 4000 times electrodes discharging
*4400mAh Li-batery, 220 cycels splicing and heating
*Inductive automatic heater, not heating without fibers
*3 in 1 multi-function clamps, new waterproof structure
*Apply to bare fibers, drop cables and jumper wires splicing

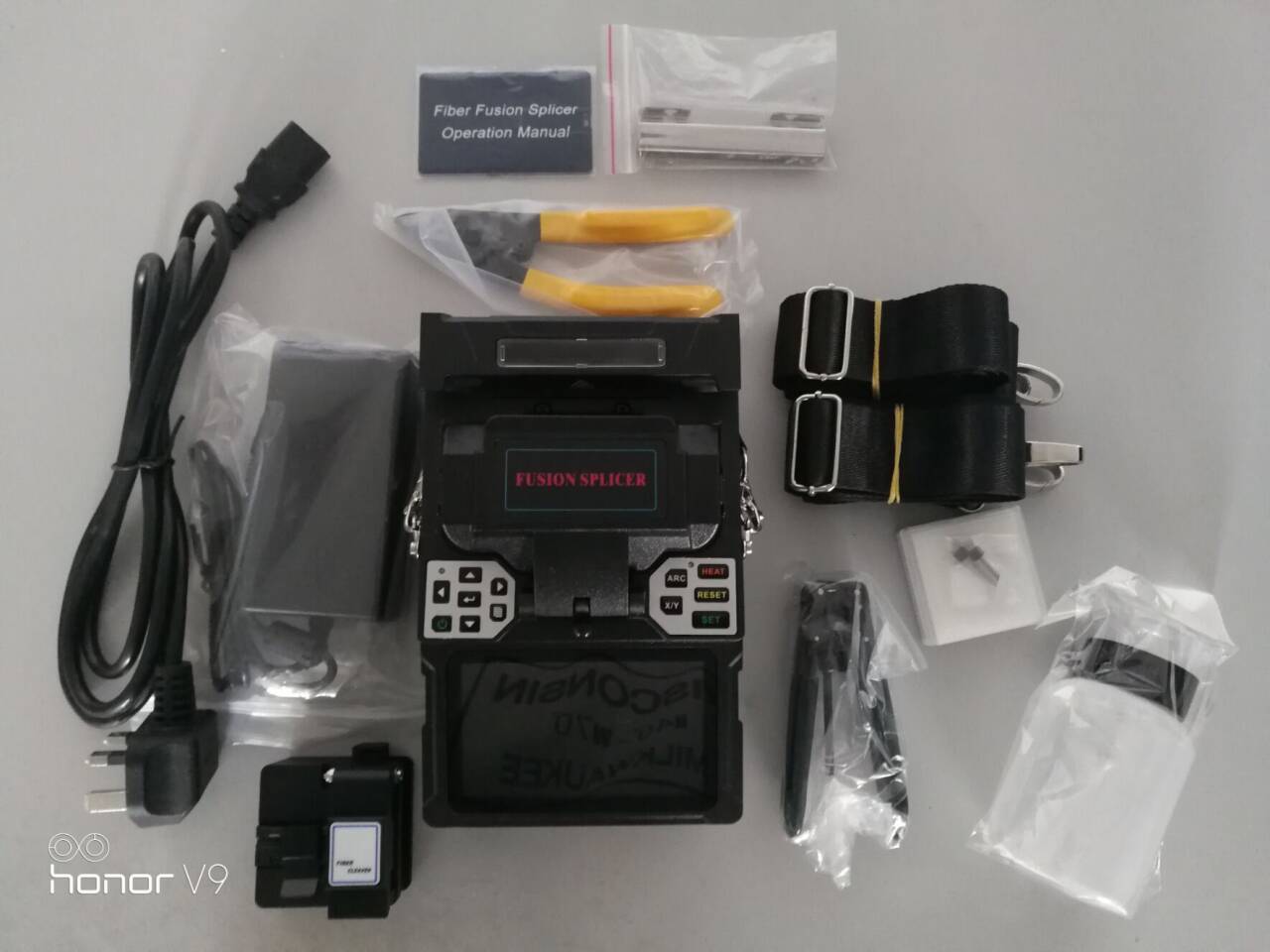

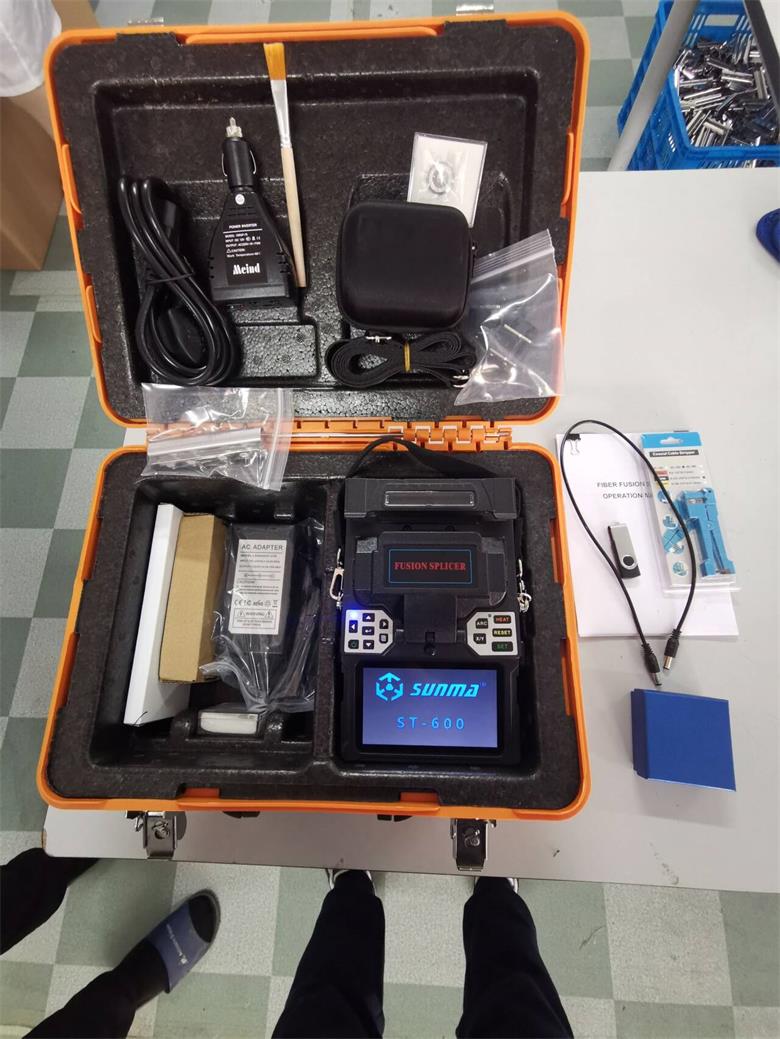

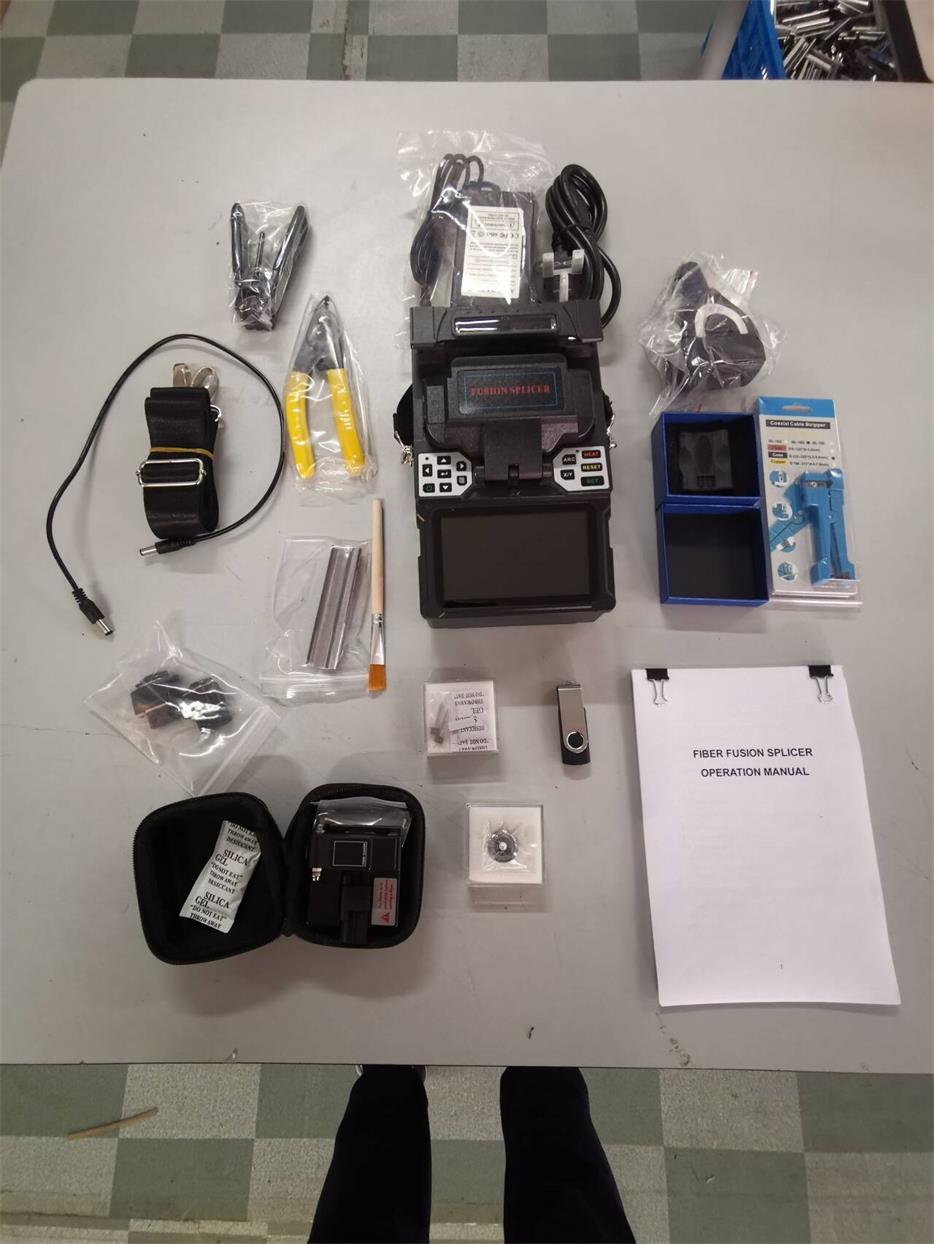

Standard Box Packing:

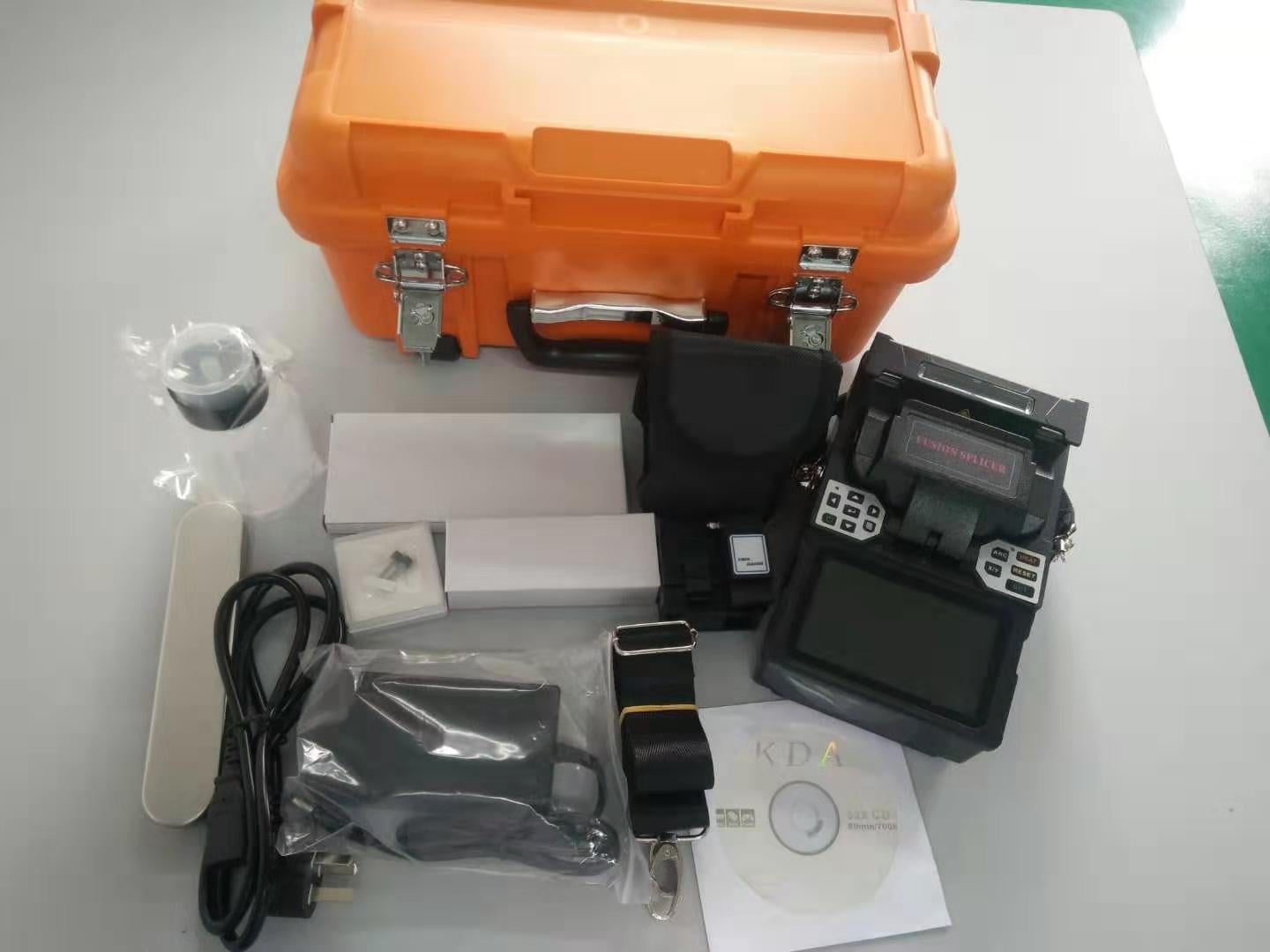

Big Yellow Box Packing:

Specefications

Battery capacity

4400mAh Li-battery, typical 220 cycles(splice and tube heat)

Power supply

Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Specifications
Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Applicable fiber	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of cladding	80 -150μm
Diameter of coating	160 – 900μm
Typical splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	7seconds
Tube heating time	26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N

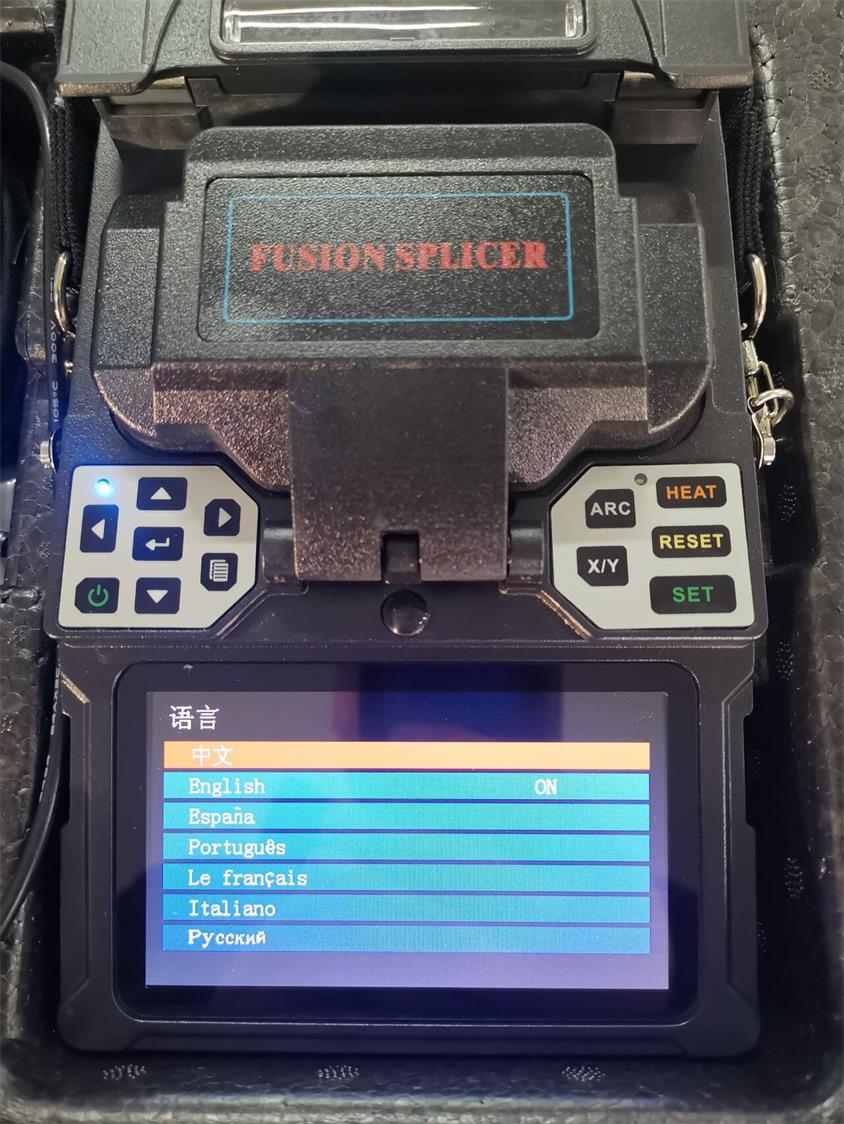

Interface	GUI menu interface, easier operation
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s
Dimension	200mm(L)x123mm(W)x95mm(H)
Weight	1.5kg including battery
