YOKOGAWA AQ1000 OTDR Handheld Optical Fiber Tester 32/30dB 1310/1550nm

Product Item: #17337

(0 Customer Reviews)

P/N: AQ1000

US$3,080.00

Order Today, Ship before 06/09/2026, from U.S. or Hong Kong

Description
Datasheet
Tags
FAQ

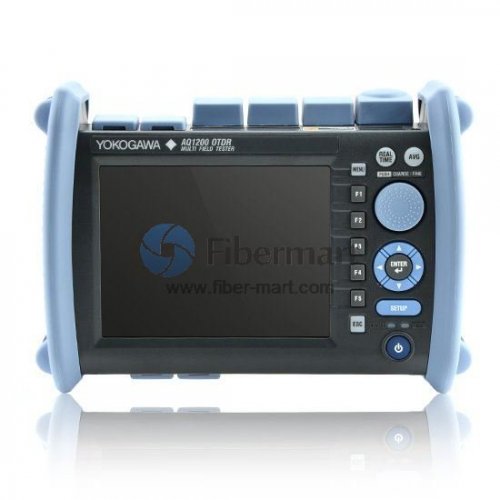

YOKOGAWA AQ1000 MFT-OTDR Handheld Optical Fiber Test Tool 1310/1550nm

Introduction

The AQ1000 is the newest addition to Yokogawa's OTDR product family offering an even smaller and lighter alternative to the AQ7275 models.
Like the larger AQ7275, it also offers an industry leading 0.8m event dead zone as well as the convenient capability to display a fiber connector inspection probe using one of the unit's standard USB I/O ports.
Tradeoffs compared to the larger AQ7275 include omission of the built-in launch fiber option, limited to SMF fiber only and a reduced dynamic range of 32/30dB.

Features

a. OTDR that supports SM1310/1550nm with a short 80 cm event dead zone
b. Quick power on for faster operations
c. Able to display trace and event information at the same time
d. Full auto mode for novice users and information tips for more experienced users
e. Bright LCD screen for easy viewing inside buildings and outside
f. Includes Fault Locator functions for fast measurements
g. Supports external USB Video fiber inspection probe

Excellent Functionality and Operability

a. 5.7 inch color LCD for easy viewing
b. Multi-language support
c. AQ7275 OTDR-like interface
d. USB port for data storage
e. Quick and easy data exchange with PC through USB connection

Application Drawing

Fiber-Mart is specializing in supplying fiber optic components and network equipment, and we are trying to complete this system. For the OTDR, we provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of this YOKOGAWA AQ1000 MFT-OTDR, please feel free to contact us. We will try our best to provide you the best service.

Internal Memory Compliant standards Emissions Immunity

Common Specifications
Horizontal Axis Parameters
Sampling resolution	5cm, 10cm, 20cm, 50cm, 1m, 2m, 4m, 8m, 16m, 32m
Readout resolution	1cm (Min.)
Number of sampled data	Up to 128,000 points (Firmware Rev2.01 or later)
Group refractive index	1.30000 to 1.79999 (in 0.00001 steps)
Unit of distance	km, kf or miles
Distance measurement accuracy	+/- 1m +Measurement distance210 +/- sampling resolution
	Excluding IOR uncertainty
Vertical Axis Parameters
Vertical axis scale	0.2 dB/div, 0.5dB/div, 1dB/div, 2dB/div, 5dB/div, 7.5dB/div
Readout resolution	0.001dB(Min.)
Loss measurement accuracy	+/- 0.05dB/dB (When the measuring loss is 1dB or less, the accuracy is within +/-0.05 dB.)
OTDR Measurement Function
Distance measurement	Displays up to eight digits of the relative one way direction between two arbitrary points on the trace.
Loss measurement	Displays one way loss in steps of 0.01dB to a maximum of 5 digits. Displays the one way loss, loss per unit length, and splice loss between any arbitrary points on the trace.
Return loss measurement	Measurement return loss and total return loss of a fiber cable or between two arbitrary points on the trace.
OTDR Analysis Functions
Analysis functions	Section analysis
		Laser safety	Class 1 M (IEC 60825-1:2007)
		Safety	EN61010-1
		EN61326-1 class A, EN55011 class A, group 1
		EN61326-1 Table 2 (for industrial locations)
