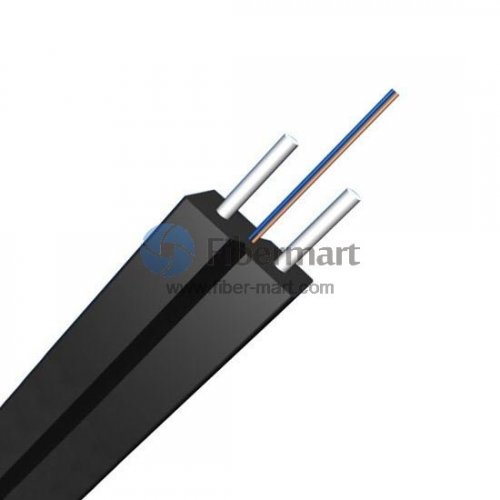

1 Fiber Single-mode FRP Strength member LSZH FTTH Indoor Cable-GJXH

Product Item: #113
(0 Customer Reviews)
P/N: sku0113
US$0.21



Order Today, Ship before 06/09/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

FM SKU#:SKU00533E2
Model#:GJXH-1FL
MFG PART#:

FTTH indoor cables are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.

Indoor use FTTH cables have the same function of the common indoor fiber cables, but it does have some special features. FTTH indoor cables are small diameter, water-resistant, soft and bendable, easy to deploy and maintenance. Special indoor FTTH cables will also meet the requirement of thunder-proof, anti-rodent or waterproof.

Item Details

  • Fiber Count: 1 Fiber

  • Fiber Type: Single-mode G657A (Default)

  • Strength Member: FRP

Cable Structure

Features
  • Soft and bendable, easy to deploy and maintenance.
  • Smaller diameter, Light weight, and high practicability.
  • Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.
  • Environmental protection- Low smoke, zero halogen and flame retardant sheath.
  • Good preformance of water-proof.
   Application
  • Access network, fiber to the home
  • Used end users directly cabing
  • Indoor cabling and distribution

Package

Package 1 Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX


Cable production throughout the chart

Fiber-Mart



Cable Count Cable Outer
Size		 Cabel Weight Tensile Load Crush Load Bend Radius Storage
Temperature
  （mm) （kg/km) S(N) L(N) S(N) L(N) S(mm) L(mm) （℃）
1 （2.0±0.2）×（3.0±0.2） 10.0 200 100 1000 300 20D 10D -40°C~+85°C
2 （2.0±0.2）×（3.0±0.2） 10.0 200 100 1000 300 20D 10D -40°C~+85°C
1 （2.0±0.2）×（3.0±0.2） 11.0 200 100 1000 300 20D 10D -40°C~+85°C
2 （2.0±0.2）×（3.0±0.2） 12.0 200 100 1000 300 20D 10D -40°C~+85°C


  G.657A 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm   ≤3.0 ≤3.0
@1300nm   ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm   ≥600 ≥200
@1300nm   ≥1200 ≥600
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


Fibermart FTTH Drop Cable GJYXFCH 1F SM G657A1 LSZH Black 2.0x5.2 Datasheet



Fibermart FTTH Duct Cable 1F SM G657A1 OD5.0 Datasheet



Fibermart FTTH Multifiber Cable 4.5x8.0 Datasheet



Fibermart FTTH GJXFH 1F SM G657A1 2.0x3.0 Datasheet





Datasheet to Download
