10dBm Output Single Channel In-Line EDFA Optical Amplifier for SDH Networks

EDFA Optical Amplifier for SDH Networks 10 dBm Output Single Channel In-Line

Fiber-Mart SDH-EDFA-LA-O10 in-line amplifier designed for the Synchronous Digital Hierarchy (SDH) applications are specifically designed for single wavelength optical transmission system to replace traditional O-E-O repeaters. It operates in the middle of an optical link designed for optical amplification between two network nodes on the main optical link. The device features wide input power range from -25dBm to -10dBm, output power up to 10dBm and low noise figure. It also includes RS-232 computer interface.

This Rack mountable amplifier work by default in constant signal-gain mode, but they can be configured to constant total output-power mode. These units are used in long-hauls transmission applications, especially for PDH, SDH, SONET and optical Ethernet transmission application. Its ease-of-use and performance make the SDH-EDFA-LA-xx series the ideal solution for Access and Metro optical networks.

Features

• Service as a In-Line amplifier C-Band 1550nm
• Tunable output power: 10dBm
• Wide input power range: -25dBm to -10dBm
• Low loise figure: typical is< 4.5dB
• Connectors: SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC, ST/UPC and ST/APC connectors are available
• Single or dual 110VAC, 220VAC, -48VDC, and/or 100V-240V power supply
• Serial interface comes with RS232, RS485
• 1U 19” rack mount structure for easy installation
• All performance compatible with BellcoreGR-1312-CORE request
• Use for Access and Metro optical networks
• Works with point-to-point applications
• High stability and reliability
• 3 years warranty
• 10 years of operation life
• OEM is available

Highlights

• Hot Swap Network Management Agent
• SNMP network management interface: RJ45
• Support Telnet for optional
• ASE noise filter & ASE suppression filters
• High Precise ACC (automatic constant current) Circuit as default, if you need other circuit, please contact at [email protected]
• ATC (automatic temperature control) function
• Offering status appearance and diagnosing fault with LCD

Mechanical Structure

Structure Example

NOTE:

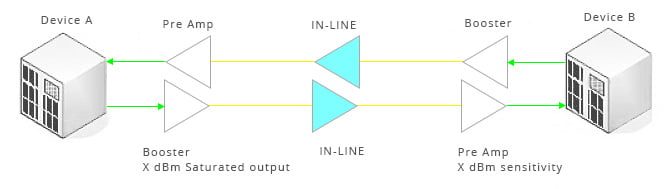

• The SDH EDFA from Fiber-Mart including 1+2+3.

(1): Customer optional
(2): Pre-Amplifier: input power –35~-25dBm; Inline-Amplifier: input power –25~-10dBm, Booster: input power –10～+6dBm
(3): No condensation
