12 Fibers OM1 62.5/125μm Multimode OD3.0mm Mini Multifiber Distribution Indoor Fiber Cable PVC Jacket

This kind of Mini GJFJV cable is ideal for indoor cabling, and interconnect between equipment.

GJFJV cable support 4 ~ 24 fiber cores, the fiber cable with PVC outer sheath, and the tight buffer fiber warped by Kevlar. The Kevlar yarn material ensure a good performance of tensile strength. And the flame retardant outer jacket could be used in riser environment.

Item Details

Fiber Count: 12 Fibers
Fiber Type: 62.5/125μm Multimode
Flame Rating: Riser

Cable Structure


Features Soft, flexible, easy to splice, and with big capacity data transmission. Good mechanical and environmental properties. The mechanical and physical characteristics of the outer jacket make the cable can be used in riser environment. Kevlar yarn material ensure a good performance of tensile strength. 900µm tight buffer protect the fiber well.		Application Indoor cabling and distribution Interconnection of fiber optic equipment, especially ODF Used in patch cords and pigtails

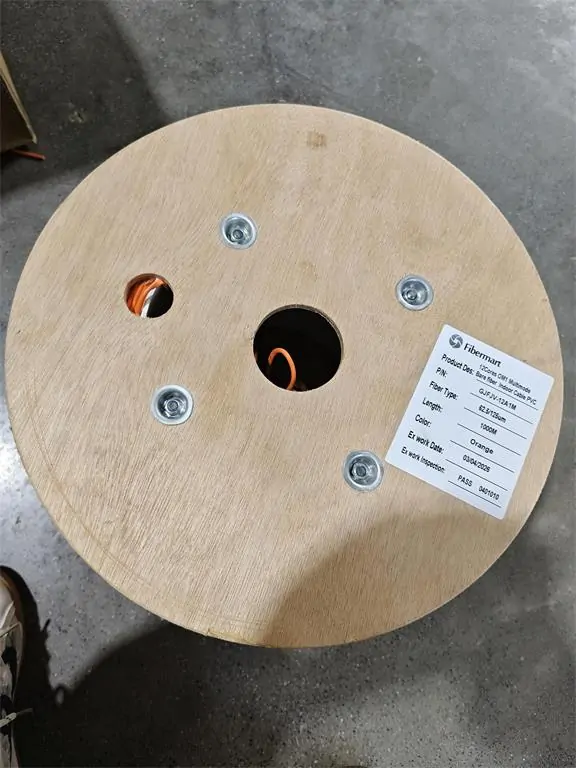

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

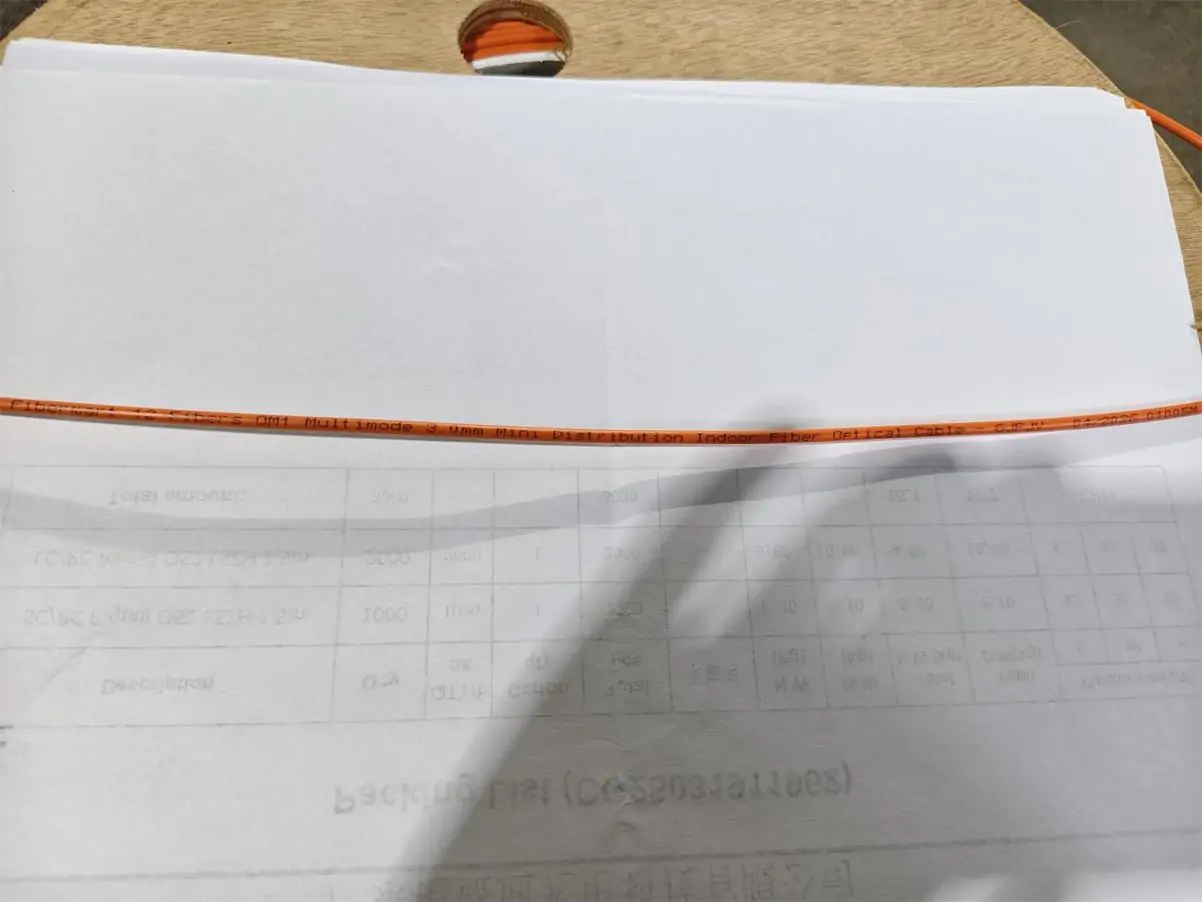

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart

Fiber-Mart

Cable Count	Out Sheath Diameter	Weight	Minimum Allowable Tensile Strength (N)	Minimum Allowable Crush Load （N/100mm)	Minimum Bending Radius (MM)	Storage Temperature
	（MM)	（KG)	short term	long term	short term	long term	short term	long term	（℃）
4	4	25	600	200	1000	200	20D	10D	-20～+60
6	4	26	600	200	1000	200	20D	10D	-20～+60
8	5	32	600	200	1000	200	20D	10D	-20～+60
10	5.5	35	600	200	1000	200	20D	10D	-20～+60
12	6	38	600	200	1000	200	20D	10D	-20～+60
24	8	60	600	200	1000	200	20D	10D	-20～+60

	G.652	50/125µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
@1300nm		≤1.0	≤1.0
@1310nm	≤0.36
@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
@1300nm		≥1200	≥600
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)	≤1260
