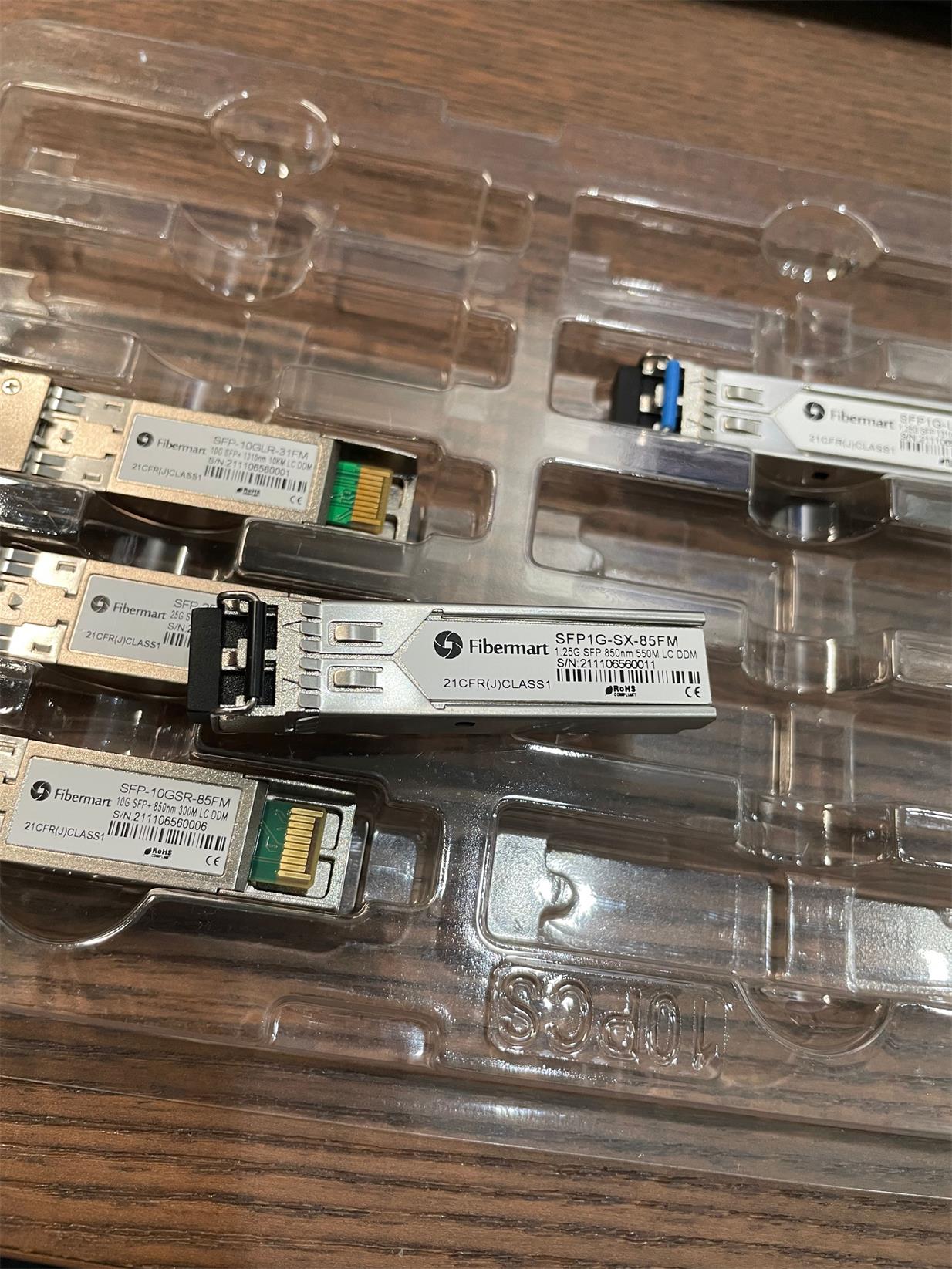

1000BASE-SX SFP 850nm 550m Multimode Transceiver

1.25Gbps 1000BASE-SX SFP 850nm 550m Multimode Transceiver

SFP-1G85-5M

SFP-1G85-5M 1000BASE-SX 850nm 550m SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 550m transmission distance with MMF. The fiber optic transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The 1000BASE-SX sfp modules are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Key Features

• Data-rate of 1.25Gbps/1.063Gbps operation
• 850nm VCSEL laser and PIN photodetector for 550m transmission
• Hot-pluggable SFP footprint duplex LC connector Interface
• Class 1 FDA and IEC60825-1 Laser Safety Compliant
• Compatible with SFP MSA
• Compatible with SFF-8472
• +3.3V single power supply
• Average Output Power:-9.5~ -3dBm
• Receiver Sensitivity:-17dBm

Applications

• Fiber Channel Links
• Gigabit Ethernet Links
• Fast Ethernet Links
• Other Optical Links

Datasheet

Part Number	Distance	Fibers	Port	Datasheet
SFP-GE-T-FM	100m	Cat 5	RJ45
SFP-GE-TA-FM	100m	Cat 5	RJ45
SFP-1G-SX-85FM	550m	MMF	LC
SFP-1G-SX-31FM	2km	MMF	LC
SFP-1G-LX-31FM	10km	SMF	LC
SFP-1G-LX2-31FM	20km	SMF	LC
SFP-1G-EX-31FM	40km	SMF	LC
SFP-1G-ZX-55FM	80km	SMF	LC
SFP-1G-EZX-55FM	100km	SMF	LC

Quality Certification

Ordering Information

Part No.	Data Rate (Gbps)	Wavelength (nm)	TX Power (dBm)	Re Sens. (dBm)	Transmission Distance	Fiber Type	Connector Type	Temp. Range	Digital Diagnostics
SFP-1G85-5M	≤ 1.25	850	-9.5 ～ - 3	﹤ -17	550m	MMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G31-5M	≤ 1.0625	1310	-9.5 ～ - 3	﹤ -17	550m	MMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G31-2	≤ 1.25	1310	-9 ～ -3	﹤ -21	2km	MMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G31-10	≤ 1.25	1310	-9 ～ -3	﹤ -21	10km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G31-15	≤ 1.25	1310	-8 ～ -3	﹤ -21	15km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G31-20	≤ 1.25	1310	-8 ～ -3	﹤ -22	20km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G31-30	≤ 1.25	1310	-5 ～ 0	﹤ -24	30km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G31-40	≤ 1.25	1310	-2 ～ 3	﹤ -24	40km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G55-40	≤ 1.25	1550	-5 ～ 0	﹤ -24	40km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G55-60	≤ 1.25	1550	-2 ～ 3	﹤ -24	60km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G55-80	≤ 1.25	1550	0~5	﹤ -24	80km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G55-100	≤ 1.25	1550	0~5	﹤ -28	100km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G55-120	≤ 1.25	1550	0~5	﹤ -32	120km	SMF	LC	Com./Ex./Ind.	Yes/No
SFP-1G55-160	≤ 1.25	1550	3~7	﹤ -37	160km	SMF	LC	Com./Ex./Ind.	Yes/No

Test Report

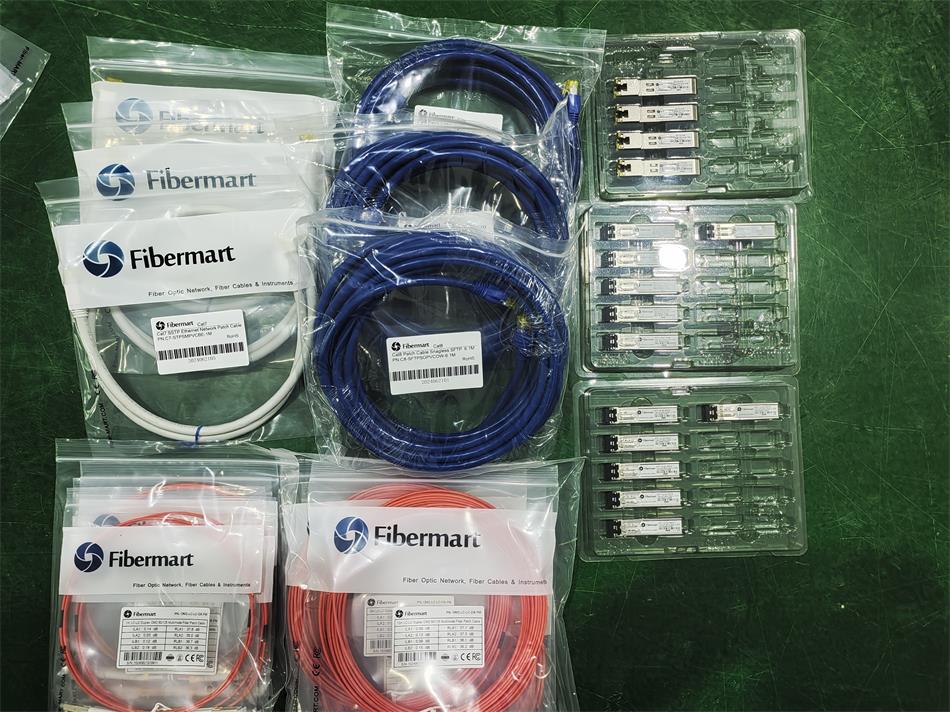

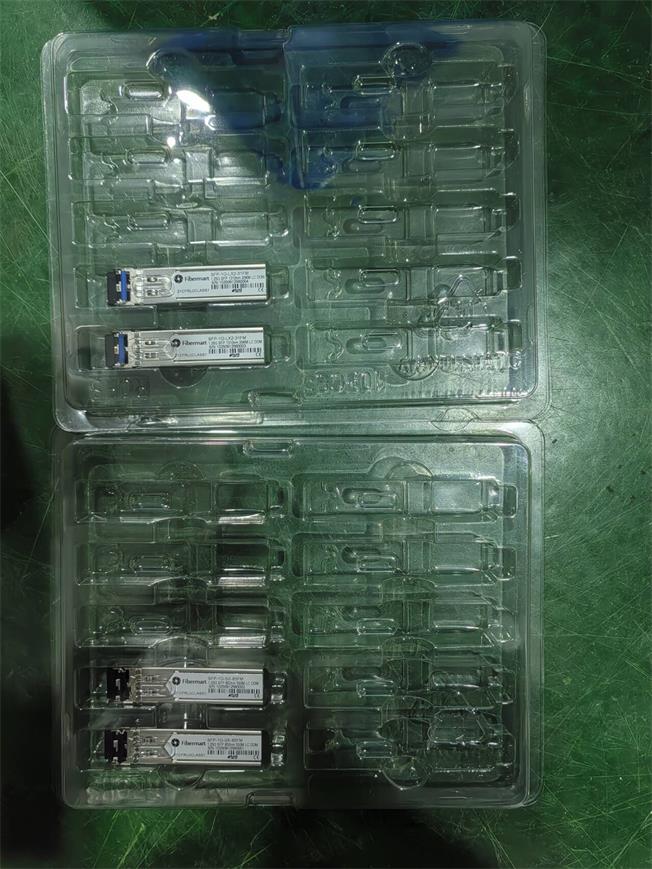

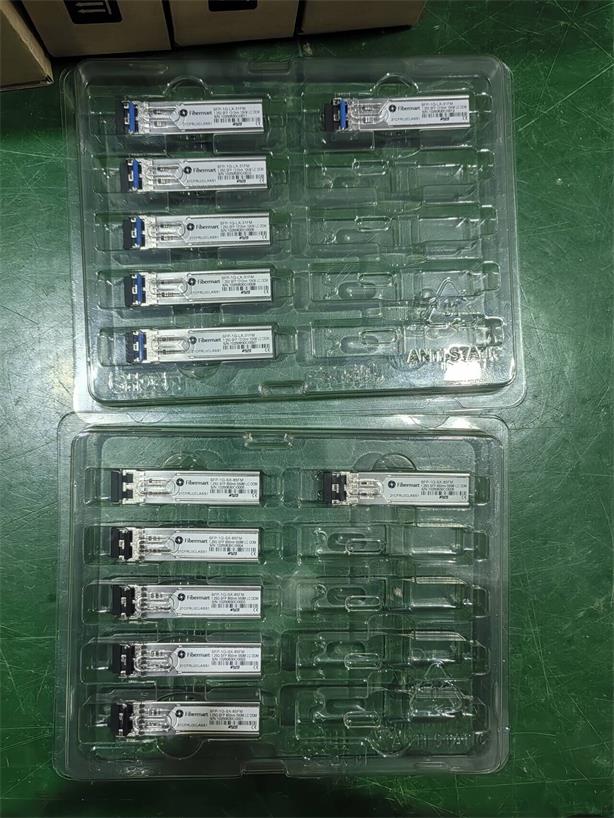

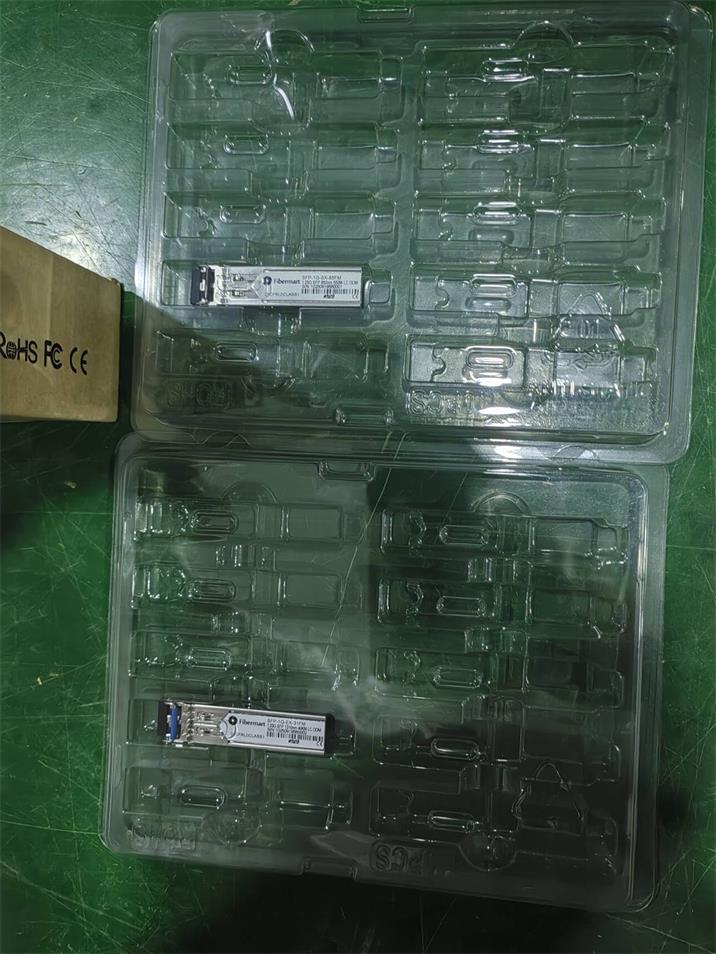

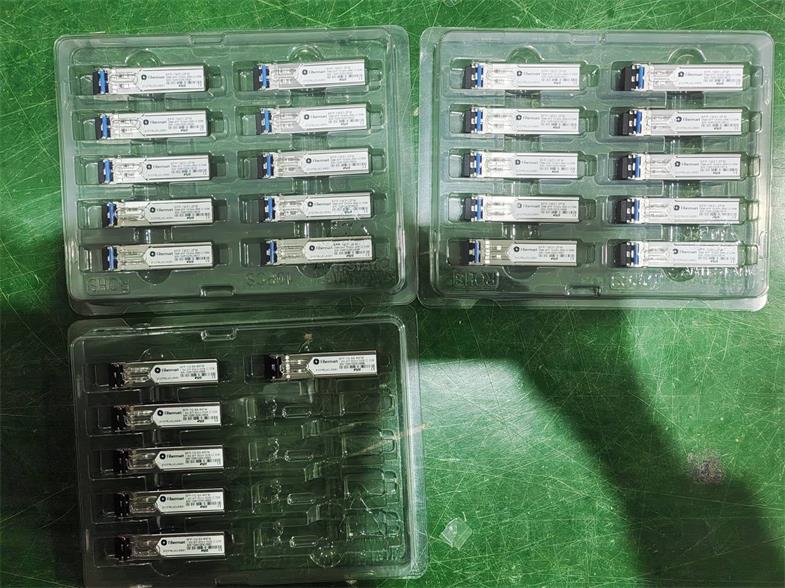

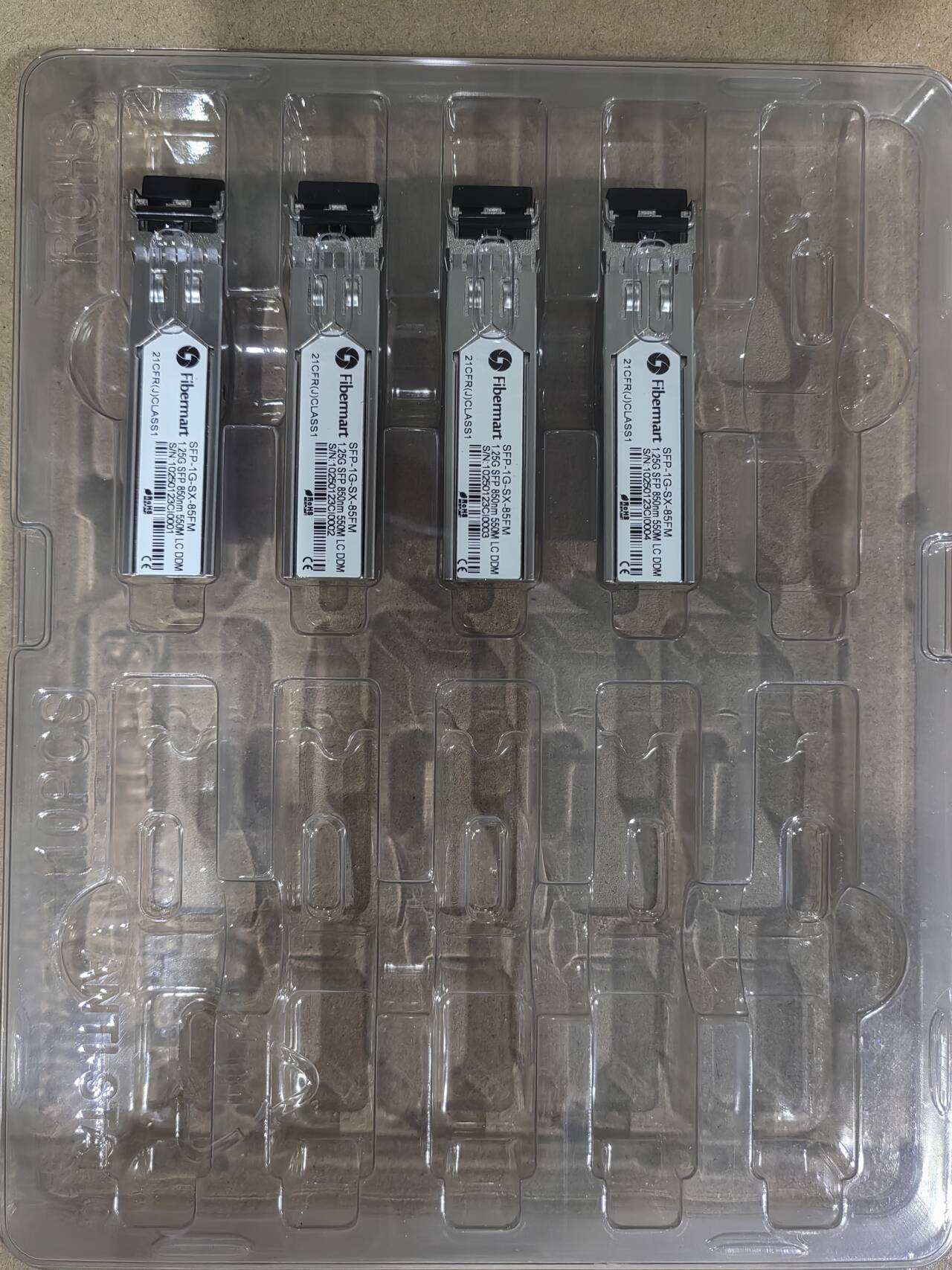

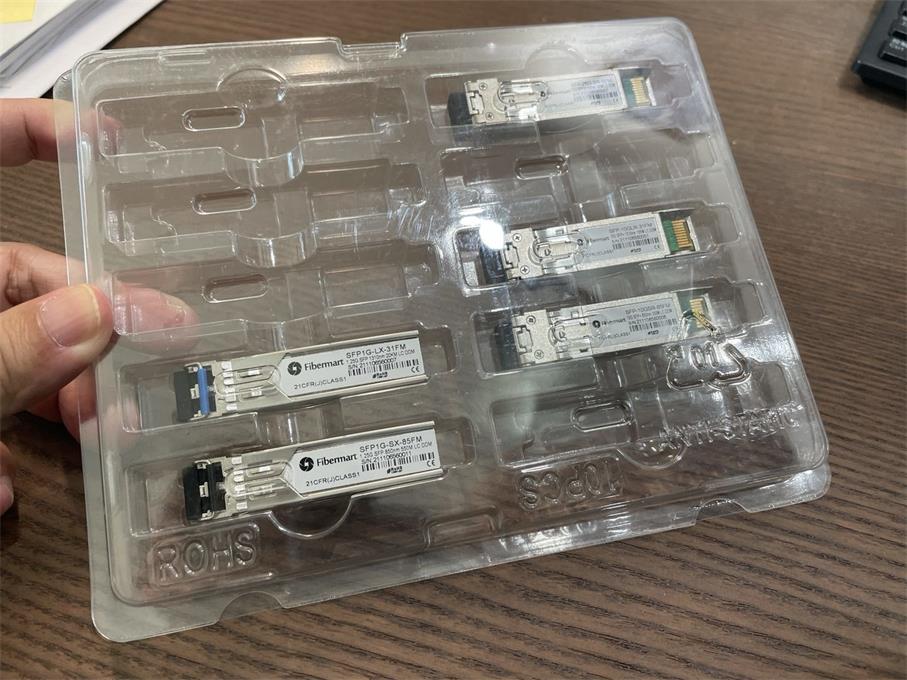

Packaging

• Antistatic bag
• Packed on pallets in a box(Default Customer Options)
• Specific Labels as Request
• Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiber-Mart provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiber-Mart in the world.

• OEM/ODM order is available
• We can supply SFP-1G85-5M according to your requirements, and design SFP-1G85-5M label and packaging for your company. We welcome any inquiry for customized 100M & 1G SFP optical transceiver.

Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.

Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying 100M & 1G SFP From Original Manufacturer Fiber-Mart Directly.

Fiber-Mart is a professional manufacturer & supplier of 100M & 1G SFP transceivers. All of our 100M & 1G SFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 100M & 1G SFP transceivers to work in your system and all of our 100M & 1G SFP transceivers come with a lifetime advance replacement warranty. If you have questions about 100M & 1G SFP optics, please feel free to contact us at [email protected]
