  • 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis

1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis

Product Item: #2029
P/N: PM-PLC-BL-1x4-X
Starting at: US$317.20

Please Choose:









Order Today, Ship before 03/24/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

Polarization Maintaining Blockless Fiber PLC Splitter 1x4 Slow Axis



Polarization Maintaining Planar Light wave Circuit (PLC) splitter is a type of polarization maintaining optical power management device that is fabricated using silica optical waveguide technology. PM PLC splitter maintains polarization of input optical signal. Polarization maintaining optical splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.

Fiber-Mart offers a large selection of polarization maintaining (PM) 1xN and 2xN optical splitter modules. PM splitters are supplied in configurations with 2, 4, 8 and 16 output channels. PM fibers are bonded to the PLC circuit chips using precision multi-fiber alignment techniques. Our splitter modules feature low insertion loss, low polarization dependence and high polarization extinction ratio over a wide wavelength range.



Features

  • Wide Band and Operating Temperature
  • High polarization extinction ratio
  • Good Splitting Uniformity
  • Low insertion loss
  • The length of pigtail: 1.0m as default(also customized)
  • The Axis: Slow Axis as default, Fast Axis is also available

Applications



  • Splitting or Combining Output Power of Transmitters Using Polarization Maintaining Fiber
  • Excellent for laboratory and industrial applications
  • Aerospace and Military Application
  • Fiber Sensor
  • Fiber Laser
  • Test Bed

Dimensions Diagram

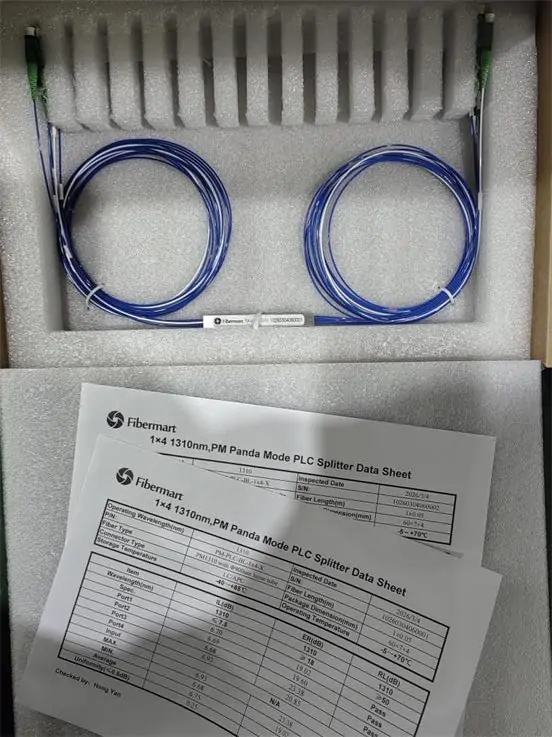

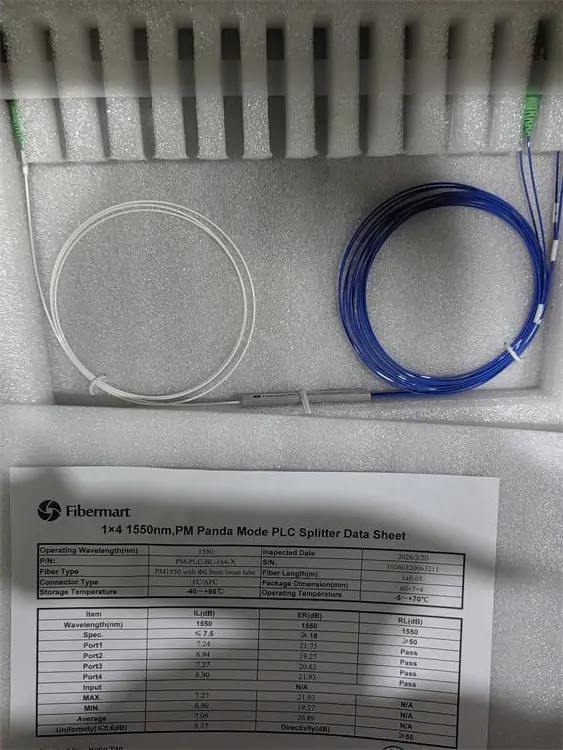

Test Report

The test report will be provided when the products are delivered.





Parameters Specifications Unit Notes
ChannelNumber 1×4   AccordwithRoHSrequirement
OperationWavelength 1310 or 1550 nm
InsertionLoss ≤7.4 dB
Uniformity ≤0.6 dB
PER ≥18 dB
ReturnLoss ≥50 dB
Directivity ≥55 dB
FiberType 1310 or 1550nm PM fiber
PigtailType Input:PMfiberwith0.9mmloosetube
Output:PMfiberwith0.9mmloosetube
InputLength ≥1.0 m
OutputLength ≥1.0 m
Connector None
FiberMark Input:white
Output:blue/orange/green/brown
PackageDimension 60(L)×7.0(W)×4.0(H) mm
OperationTemperature -40~+85
StorageTemperature -40~+85




Fibermart PM PLC Splitter Datasheet





Datasheet to Download

Customer Reviews

Displaying 1 to 5 (of 5 reviews)

by Carol Ben
Date Added: 03/30/2023
Good ER and insertion loss, this pm splitter built with nice quality, everyhing is nice from fibermart orders!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis

by Bill Lander
Date Added: 08/04/2022
Very nice 1x4 pm splitter in PM1550 Pander fiber, they are slow axis working and custmozied with fc/upc input and lc/upc output, the fiber length we want was 2m bare fiber, everything looks working great!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis

by Risheng Chong
Date Added: 05/27/2022
Have to say fibermart was well trusted, they provide this 1x4 pm splitter in nice loss and ER ratio, we tested them, everything was nice, good job!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis

by Richard Febonio
Date Added: 01/26/2022
We ordered several pcs 1x4 pm splitter from fibermart in amazing price, they provide pm plc splitter in good testing results, low loss and high ER, very good and quick ordering!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis

by John Wassen
Date Added: 10/09/2019
Work perfect! I like this site!

Rating: 5 of 5 Stars [5 of 5 Stars]
1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis 1x4 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis
