1x8 MEMS Optical Switch

Product Item: #2073

(2 Customer Reviews)

P/N: FM-MSW-1x8-A-B-C-D-E

Starting at: US$1,744.00

Please Choose:

Wavelength:

Fiber Length:

Diameter:

Fiber Type:

Control Port

Connectors:

Customized Details:

Order Today, Ship before 06/09/2026, from U.S. or Hong Kong

Description
Datasheet
Tags
FAQ

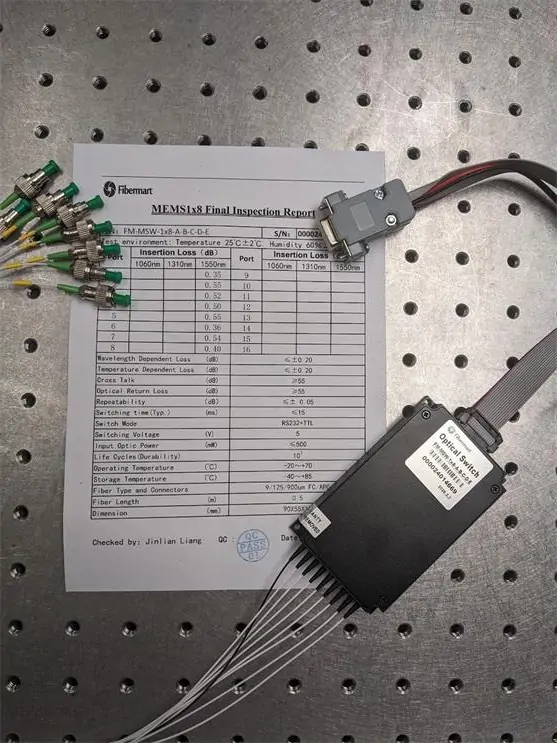

1x8 MEMS Optical Switch

Fiber-Mart's 1x8 MEMS Bi-directional Fiber Optical switch, based on Microelectromechanical Systems (MEMS) technology, is a compact optical switch which connect optical channels by redirecting 1 incoming optical signals into 8 selected output fibers. The switching state is highly stable against environmental variations of temperature and vibration due to its unique design. This novel design significantly reduces packaging requirement, and simplifies driving electronics, offering unprecedented high stability as well as an unmatched low cost.

Fiber-Mart offers most affordable high performance MEMS optical switches. The MEMS technology offers extremely low electrical power consumption, high durability (> 1x10^9 cycles), no stiction, and high resistance to shock & vibration. Laser welded assembly ensures repeatability and ruggedness in field applications. Our MEMS Switches are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Currently configurations includes 1x4, 1x8 and 1x16 configurations for single-mode or multimode fibers, available in either latching or non latching variants.

Features

High Reliability
Low insertion loss
Fast response time: ≤ 5 ms
Conveniently actuated by 5V/3V electrical pulses
Miniature size
Intrinsic tolerance to ESD
Very low power consumption
Stable and repeatable in open loop operation
Best-in-class resistance to shock & vibration
Single-mode (multimode available for option)

Applications

Channel Blocking
Configurable Add/Drop
Optical channel monitoring in optical networks
Switch & select modules (multicast switches, switch & broadcast applications)
Wavelength Selective Switches
Test & measurement
Instrumentation

Specifications

Parameters	Unit	MSW-1x8
Wavelength Range	nm	1260 ～ 1620
Testing Wavelength	nm	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ: 0.7 , Max: 1.2
Return Loss	dB	≥ 50
Crosstalk	dB	≥ 50
PDL	dB	≤ 0.10
WDL	dB	≤ 0.25
TDL	dB	≤ 0.20
Repeatability	dB	≤ ±0.05
Repeatability Rate	Hz	20
Lifetime	Cycle	≥ 109
Switch Time	ms	≤ 5
Transmission Power	mW	≤ 500
Operation Temperature	oC	-5 ～ +70
Storage Temperature	oC	-40 ～ +85
Dimension	mm	(L)42 x (W)26 x (H)9.4 (±0.2)

Mechanical Dimensions (Unit: mm)

Electrical Driving Requirements

This series of switches is designed to meet the most demanding Carrier-class and out-door optical switching applications.
Together with contorl electronics, the switch can be controlled through digital interfaces. Fiber-Mart also offers External TTL and External IIC interfaces as an option-please contact Fiber-Mart sales at [email protected].

Optical Path

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

Pin 9

Pin 10

Pin 11

Pin 12

Pin 13

Pin 14

Pin 15

Pin 16

Comm↔Port 1

DP*

GND

Comm↔Port 2

Comm↔Port 3

Comm↔Port 4

Comm↔Port 5

Comm↔Port 6

Comm↔Port 7

Comm↔Port 8

* DP: Driving Pulse Voltage

DrivingPulse	Min	Typical	Max	Unit
Pulsevoltage	9	9.3	9.5 [ 4 ]	V
Pulsewidth	12	12.5	13 [ 4 ]	ms
Peakcurrent		290		mA

Attention! Outside this range could damage the device.
Order Information：MSW-1×8-A-B-C-D-E

A	B	C	D	E
Mode	Wavelength	Fiber Diameter	Fiber Length	Connector
SM: 9/125um	85: 850nm	25: 250um	05: 0.5m	OO: None
M5: 50/125um	13: 1310nm	90: 900um	10: 1.0m	FP: FC/PC
M6: 62.5/125um	14: 1490nm	S: Special	15: 1.5m	FA: FC/APC
S: Special	15: 1550nm		S: Special	SP: SC/PC
	162: 1625nm			SA: SC/APC
	165: 1650nm			LP: LC/PC
	13/15: 1310/1550nm			LA: LC/APC
	S: Special			SP: ST/PC
				SA: ST/APC
				S: Special

For example: MSW-1x8-M6-13-S-15-FP
Questionnaire for Custom Parts:

All these customize information, please back to top to find the option for choose. If there any other special requirements, please feel free to contact us at [email protected].

A. Which fiber type are you using? (Single-mode or Multimode)
B. What wavelengths are you using? (Specify in nanometers)
C. What size jacketing? (250 micron OD acrylate coating; 900 micron OD hytrel jacket)
D. How long should the fibers be? (Fiber length, in meters, 1 meter is standard)
E. What type of connectors do you need? (Connector codes for each port, Input and output connections)
