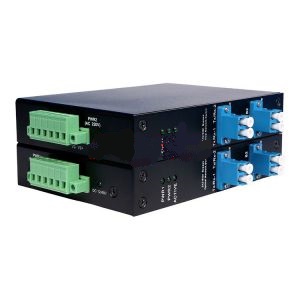

2x2 Bypass Optical Switch LGX Package OBS Opto-Mechanical

Product Item: #17192
(1 Customer Reviews)
P/N: OSW-2×2LGX-FM
Starting at: US$245.00

Please Choose:









Order Today, Ship before 06/09/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

2x2 Bypass Optical Switch LGX Package OBS Opto-Mechanical



Fibermart' 2x2B LGX optical switch provides excellent performance on your network and posses compact package and competitive cost. It supports all wavelength at 850nm and 1260nm~1650nm. It can also support 10 /1Gbps fiber Gigabit Ethernet networks.



Features Applications
Unmatched Low Cost Ring Network
Low insertion loss Node Bypass Protection
Non-Latching Type SDH ADM Ring
Available in Single Mode / Multi Mode WAN Optimization
Power on Time delay(0, 60, 120secs) Network Maintenance
LED indicators for Power and optical switch status

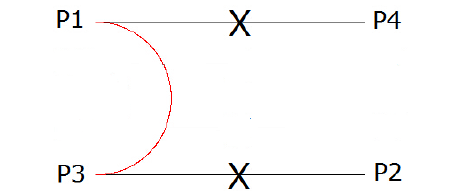

Optical Route



Status One Status Two
1498460326467196.png 1498460326413750.png

Dimention:L130×W102×H30mm,below is the faceplate of this LGX optical switch.

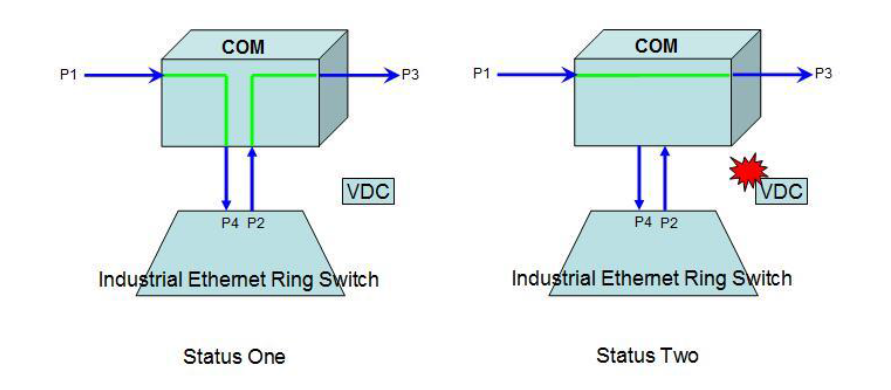

Application Example

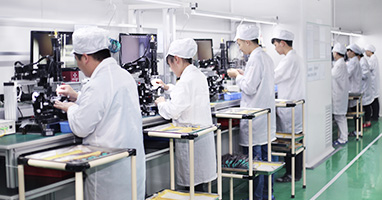

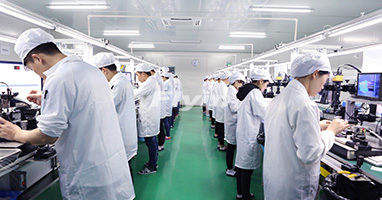

The production workshop show



Performance Specifications

Parameters FM-2×2B-MM/SM
Wavelength Range（nm） 850±40 1260~1650
Operating Wavelength(nm) 850 1310/1550
Insertion Loss(dB) Typ:1.0 Max:1.5 Typ:1.0 Max:1.5
Return Loss(dB) MM≥30 SM≥50
Crosstalk(dB) MM≥35 SM≥55
PDL（dB） ≤0.25
WaveLength Dependent Loss（dB） ≤0.25
Temperature Dependent Loss（dB） ≤0.25
Repeatability（dB） ≤±0.02
Power Supply（V） USB DC: 5V
Power Consumption（W） <2.5
Lifetime（time） ≥10^7
Switch Time（ms） ≤8
Delay after power restart（s） 0, 60, 120
Transmission Power（mW） ≤500
Operating Temperature(℃) -5~+70
Storage Temperature(℃) -5~+85
Operating Humidity(%RH) 5～85
Operating Humidity(%RH) 5～85
Weight(g) 250
Dimension（mm） (L)130.0×(W)102.0×(H)30.0

1、Specifications may change without notice.

2、Above specification are for device without connector.






Fibermart 1x1 Mechanical Optical Switch Datasheet



Fibermart 1x2 Mechanical Optical Switch Datasheet



Fibermart 1xN Mechanical Optical Switch Datasheet 2025



Fibermart 1x64 Mechanical Optical Switch User Manual 2025



Fibermart 1xN MEMS Optical Switch Datasheet 2026



Fibermart 1xN MEMS Optical Switch User Manual 2026



Fibermart 2x2 Mechanical Optical Switch Datasheet



Fibermart 2x2B Mechanical Optical Switch Datasheet



Fibermart 1xN PM Optical Switch Datasheet






Datasheet to Download

Add your Tags

Optical Switch | Opto Mechanical | 2x2 Optical Switches |

Customized Service :



● If you need any customized products or services, please write your request in Order Remarks, or send an email to [email protected].



Get Quote or Checkout Online :



● To request a Quote or Checkout to pay online, simply add items into your cart and select your preferred method.



Free Shipping & No Tariff :



● Online Order over US$200 is Free Shipping (Not included Heavy Items like Outdoor Cable, Outdoor Cabinet etc),

● For US customer, Fibermart covers all customs duty and fees - no additional tariff charges.



Shipping Time :



● FedEx : 2-4 business days
● UPS : 2-5 business days
● DHL : 2-6 business days
● Shipment by Sea : 20-25 business days



Payment Method :



● PayPal (Online)

● Credit / Debit Card (Online)

● ABA Routing (US Local)

● T/T Wire Transfer (International)



Returns & Warranty :



● 1-Year Warranty

● 60-Day Returns

● 60-Day Exchange

● Limited Lifetime Warranty.

   Read full Return & Refund Policy



Net Term & Credit :



● Fibermart accept Net 30 and Net 60 payment terms, Contact Us for Credit Account by submit a credit form.



Volume Discount :



● Fibermart offers discount prices for large-volume order, Contact Sales Team for more details.



Customer Reviews

by Carlos
Date Added: 10/13/2023
The 2x2 bypass optic switch was just what we need, low loss and crosstalk, good!

Rating: 5 of 5 Stars [5 of 5 Stars]
