4 Channel Video to Fiber SM 20km Optical Video Multiplexer in Aluminum Alloy Case

Press Esc key to close this popup
  • 4 Channel Video to Fiber SM 20km Optical Video Multiplexer in Aluminum Alloy Case

4 Channel Video to Fiber SM 20km Optical Video Multiplexer in Aluminum Alloy Case

Product Item: #3385
P/N: FM-4V-SM-20-Al
Starting at: US$73.67

Please Choose:





Order Today, Ship before 04/02/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

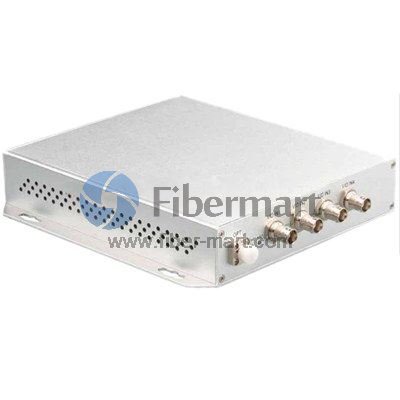

4 Channel Video to Fiber Optical Video Multiplexer Transmitter and Receiver SM 20km in Aluminum Alloy Case



Description

Model: FM-4V-SM-20KM-Al
Case Body: Aluminum alloy
Transmitter + Receiver
Fiber Mode: Single-Mode
Wavelengths: 1310nm/1550nm
Optical Power Budget: 12dB
Maximum Transmission Distance: 20km
Fiber Optic Video Transmitter & Receiver transmission 4 Channel digital composite video
Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)



Key Features

Support Point-to-Point or Daisy-Chain connection
Uncompressed Digital Composite Video over one fiber
Compatible with all PAL, NTSC,SECAM Video Systems
Single-Mode Fiber Support for Distances up to 100 km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Support Coarse Wavelength Division Multiplexing (CWDM)
Stand alone
Produce according to customer's specifications,providing OEM



Specifications

Video Connectors
Number of Channels 4channel Video Video 75Ω BNC (Gold Center Pin)
Input/output impedance BNC 75Ω Optical FC (Standard)
Input/output Compatibility PAL,NTSC,SECAM Standalone power Screw terminal block
Input/output voltage 1.0 Volt p-p Rack Power AC line card
Bandwidth 6.5MHZ
Bit Resolution 8-Bit Digital Transmission Electrical & Mechanical
Differential Gain < 1.5% Input Power Requirements DC 5V@2A
Differential Phase < 1.5° Power Adapter AC 100V~240V
Tilt < 5% Power Consumption < 3W
Signal-to-Noise Ratio(SNR) > 67 dB Shipping weight 3.0kg(include TX & RX)
Environmental
Operating Temperature -45°C~+75 °C Storage Temperature -45°C~+85 °C
Relative Humidity 0%~95% (non-condensing) MTBF >100,000 hours




Datasheet to Download
