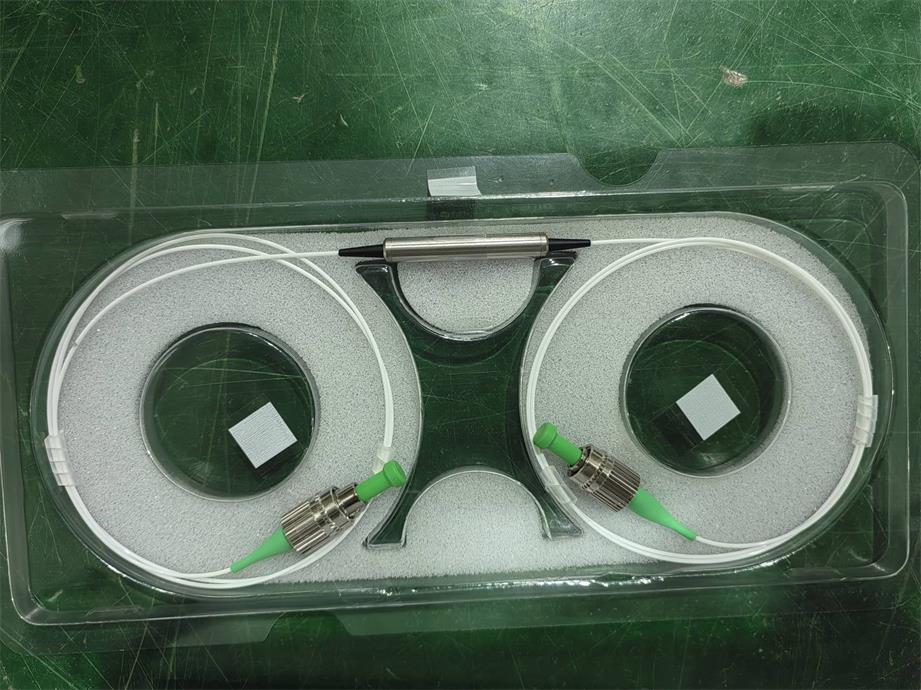

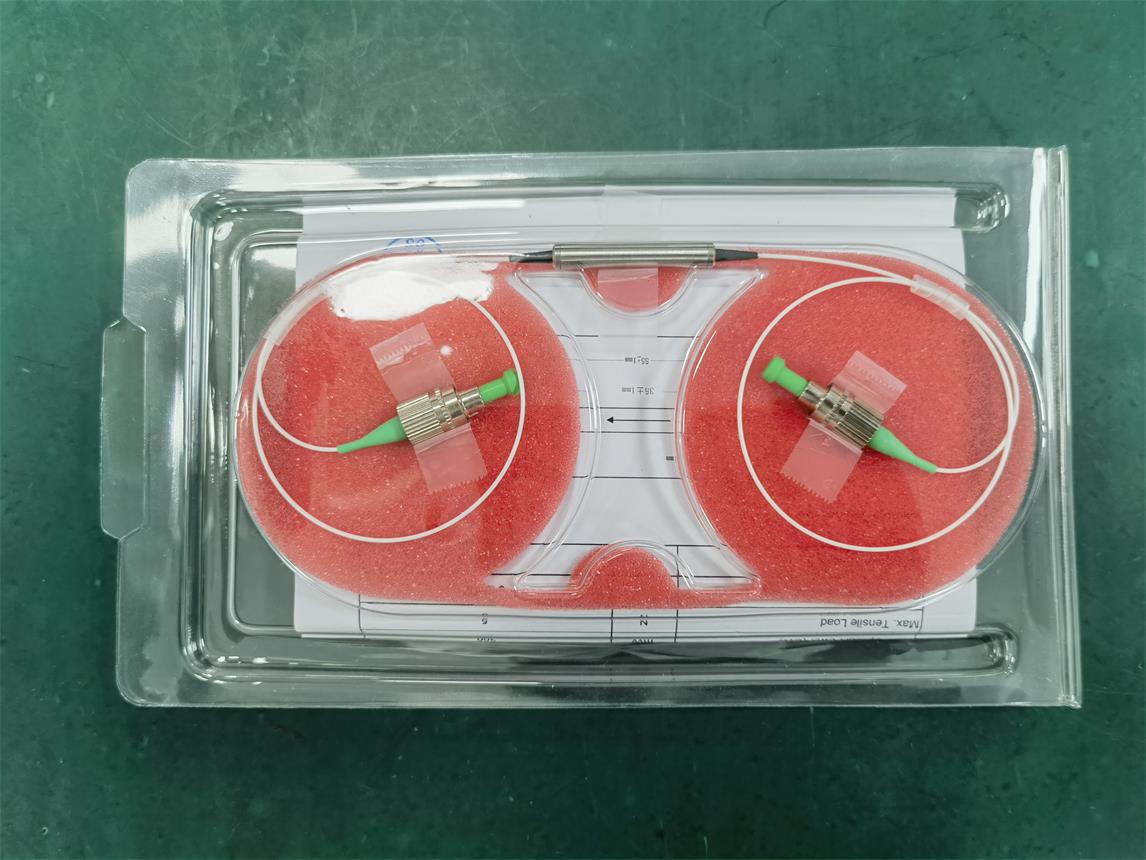

780nm Polarization Maintaining Polarizer In-line PM780 Slow Axis Working

Product Item: #17394
(1 Customer Reviews)
P/N: PM-ILP-780
Starting at: US$388.00

Please Choose:










Order Today, Ship before 04/30/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

PM780nm polarization-maintaining In-line Polarizer, Slow Axis aligned Key, Slow Axis working.



Features

  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High Reliability
  • High Stability



Applications

  • Communication Systems
  • Test Instrumentations
  • Fiber Sensor
  • Research



Specifications

Parameters Unit Value
Center Wavelength nm 1310, 1550 1064 980 780
Operating Wavelength Range nm ±50 ±30 ±10 ±10
Typ.Insertion Loss at 23℃ dB 0.3 0.4 0.7 0.8
Max.Insertion Loss at 23℃ dB 0.5 0.6 0.9 1
Min.Return Loss dB 50 50 50 50
Typ.Extinction Ratio at 23℃ dB 30 30 28 28
Min.Extinction Ratio at 23℃ dB 28 28 25 25
Max.Optical Power(CW) mW 300
Max.Tensile Load N 5
Fiber Type - PM1550 PM980 PM980 PM780
    SMF-28E Hi1060 Hi1060 SM800
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower;
The default connector key is aligned to slow axis;



Package Dimension

Polarization Maintaining Polarizer fibermart



Ordering Information

ILP-1111-2345-666

1111 -Center Wavelength: 1550=1550nm,1310=1310nm,......,0850=850nm
2 -Fiber type for input: 0=Panda fiber, 1=smf-28e, 2=hi1060,
3 -Fiber type for output: 0=Panda fiber, 1=smf-28e, 2=hi1060,
4 -Pigtail type: 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube
5 -Fiber length: 0=0.8m,1=1m
666 -Connector type: 0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC

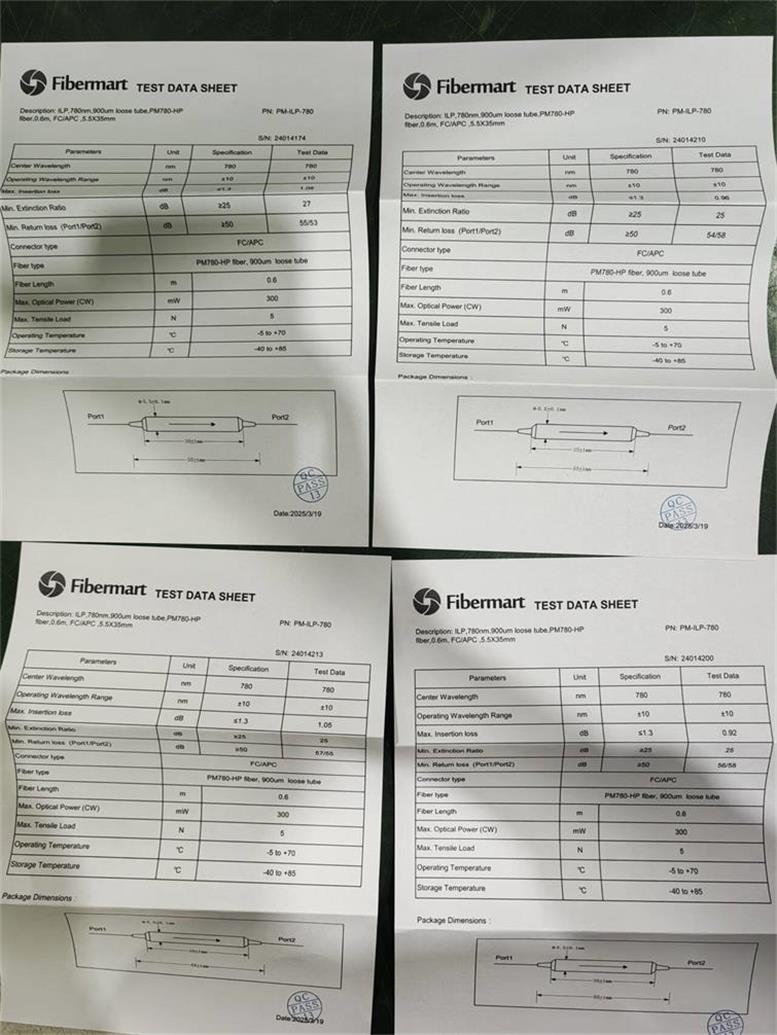

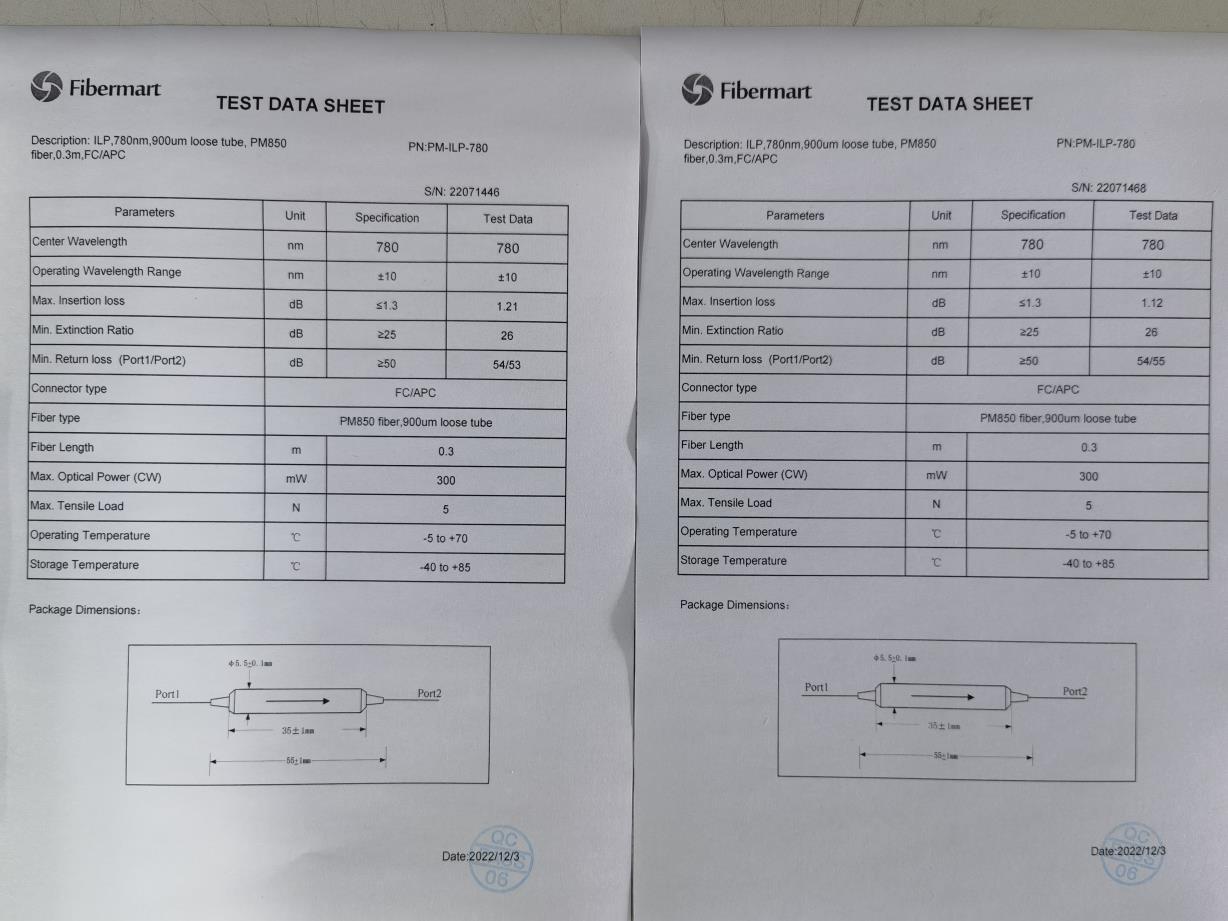

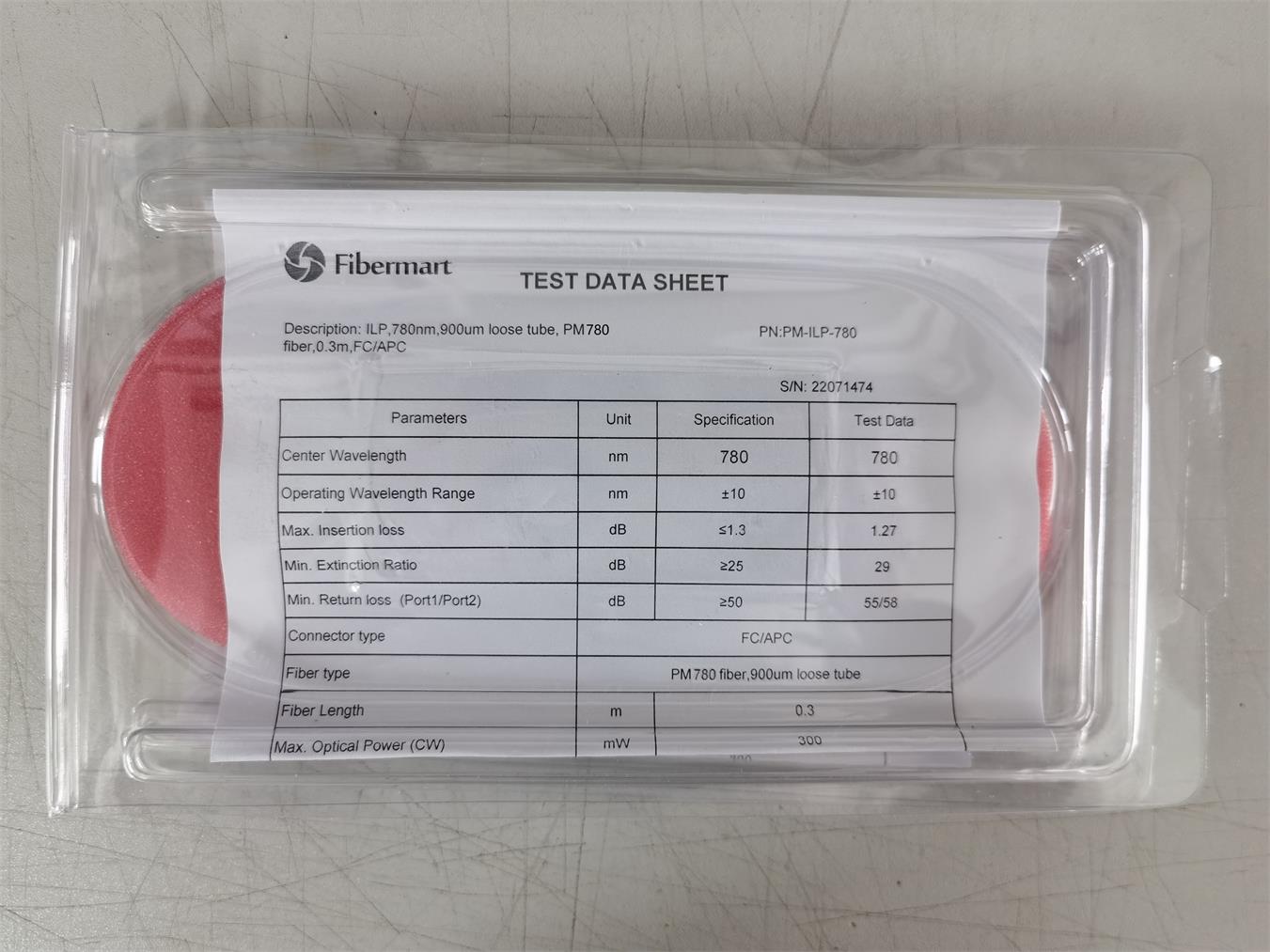

Fibermart In-line Polarizer Datasheet







Datasheet to Download

Add your Tags

PM Polarizer | 780 Polarizer | PM780 Polarizer |

Customer Reviews

by Gavin Staats
Date Added: 12/06/2022
We got the pm780 polarizer customized from fibermart, they made it for 10pcs, all comes in low loss and great ER more than 23dB, nice work!

Rating: 5 of 5 Stars [5 of 5 Stars]
