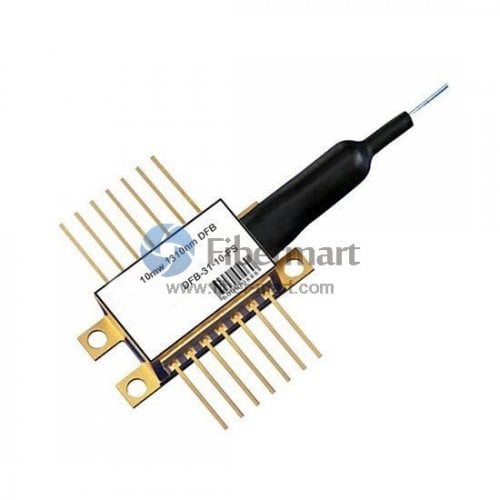

DFB Butterfly Laser Diodes PM Fiber 1550nm Select Wavelength Laser Diodes
Product Description:The SWLD series laser diodes cover customer selection of large wavelengths range from 1260nm to 1650nm which are fabricated in a hermetically sealed 14-pin butterfly package. The laser diodes contains thermoelectric cooler (TEC), thermistor, monitor photodiode to secure high quality laser performance.
The Laser Diodes wavelength of 1550±2nm, Output power: ≥10mW, Pigtail Type: PMF 1550 fiber with 900um loose tube, 1.0m, FC/APC connector. Our laser products are Telcordia GR-468 qualified, and in compliance with RoHS Directives.
Applications:LAN, WAN and metro networks C/DWDM systems Fiberoptic sensors Laser sources CATV systems
Features:High output power(≥10mW) High-performance, multiquantum well (MQW) distributed-feedback (DFB) laser Industry-standard, 14-pin butterfly package Built-in TEC, no optical isolator λc of 1550±2nm Reliability: Telcordia GR-468. RoHS
Performance Specifications:Absolute Maximum Ratings Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability.
Optical Characteristics (at 25 °C laser temperature)
Electrical Characteristics (at 25 °C laser temperature)
Fiber Pigtail Specifications

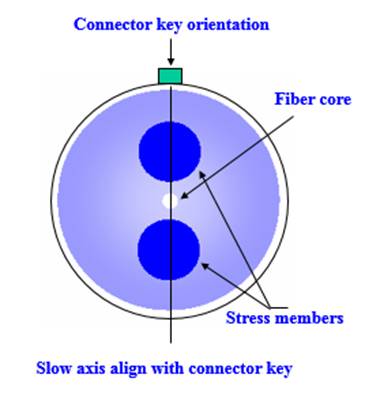

Note: The PM fiber and the connector key are aligned to the slow axis, the slow axis works.

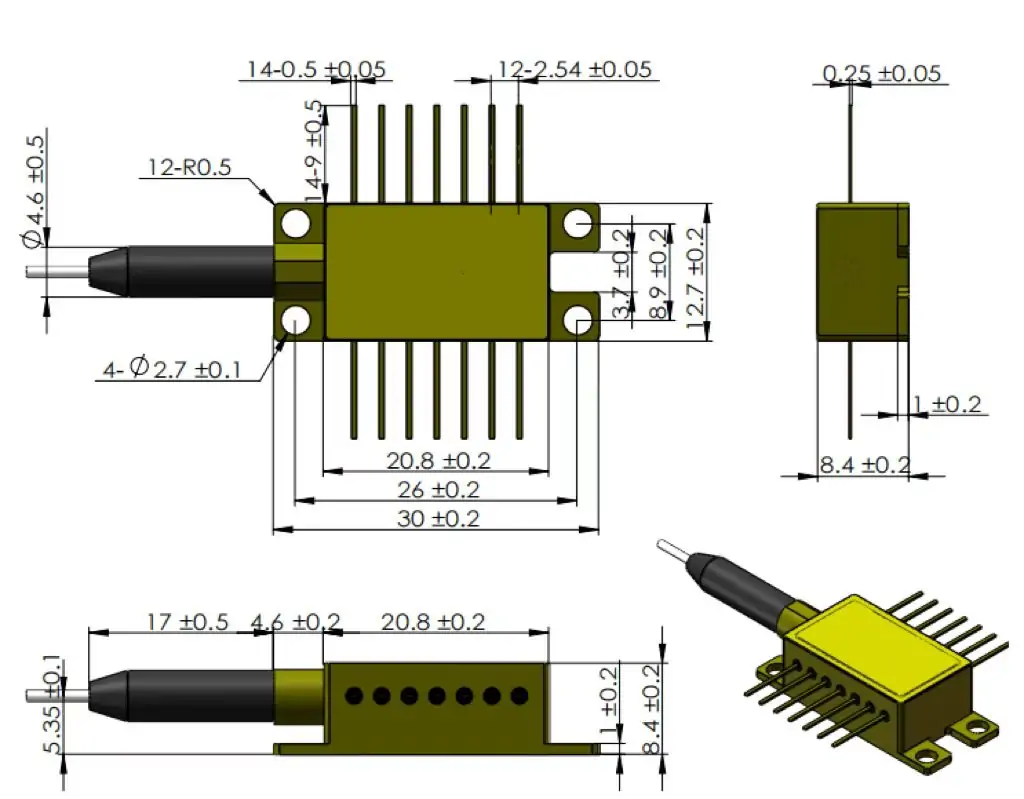

Package Drawing (Mechanical Dimensions):
Pin Assignments: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1 |
Thermistor |
|
2 |
Thermistor |
|
3 |
Laser dc Bias (Cathode) (–) |
|
4 |
Monitor PD Anode (-) |
|
5 |
Monitor PD Cathode (+) |
|
6 |
Thermoelectric Cooler (+) |
|
7 |
Thermoelectric Cooler (–) |
|
8 |
Case Ground |
|
9 |
Case Ground |
|
10 |
NC |
|
11 |
Laser Anode (+) |
|
12 |
Laser RF Cathode (-) |
|
13 |
Laser Anode (+) |
|
14 |
NC |

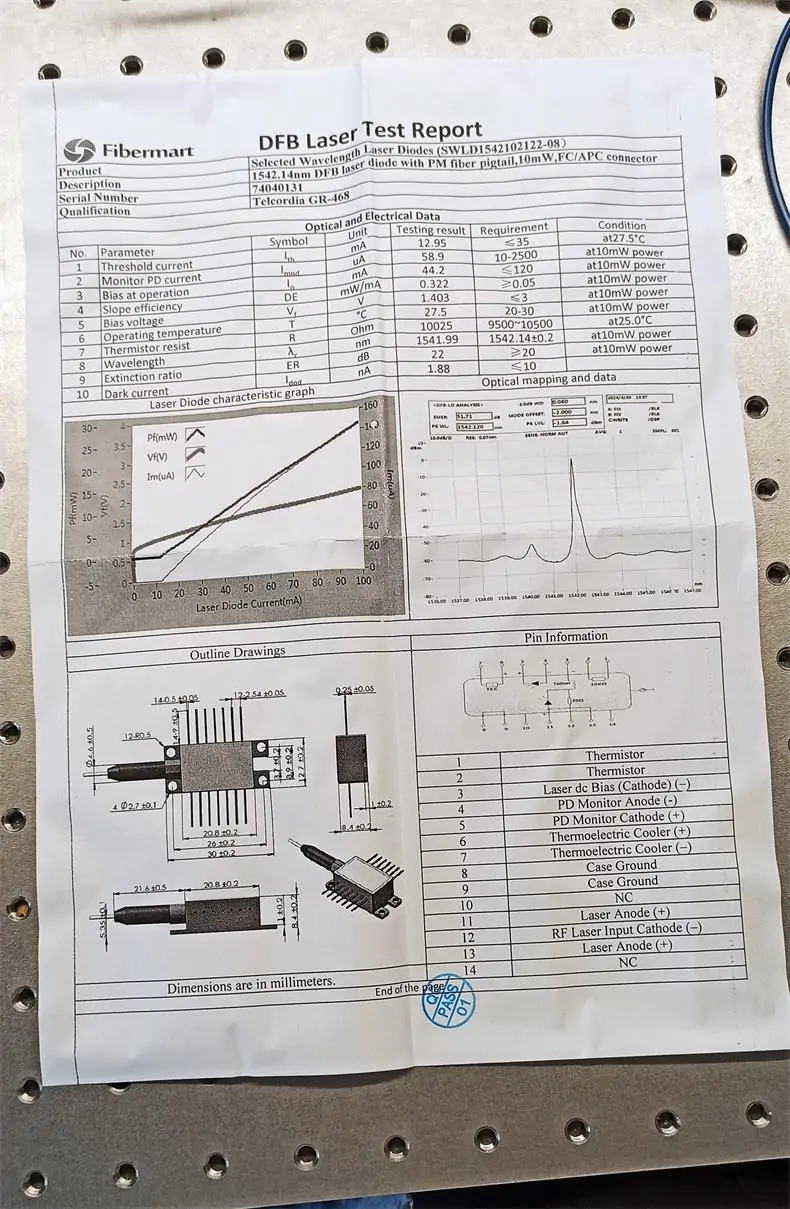

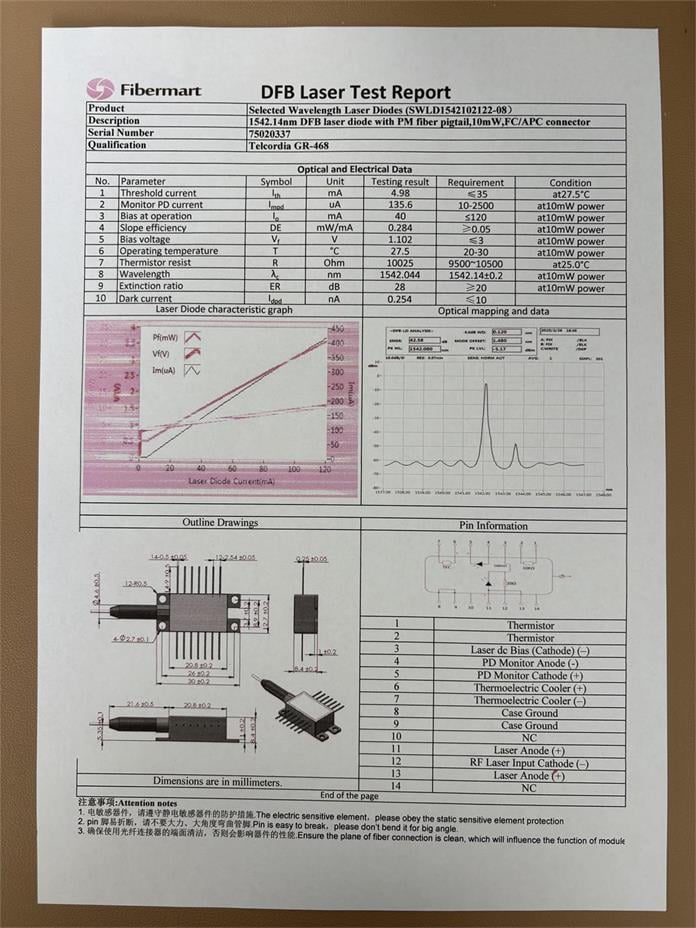

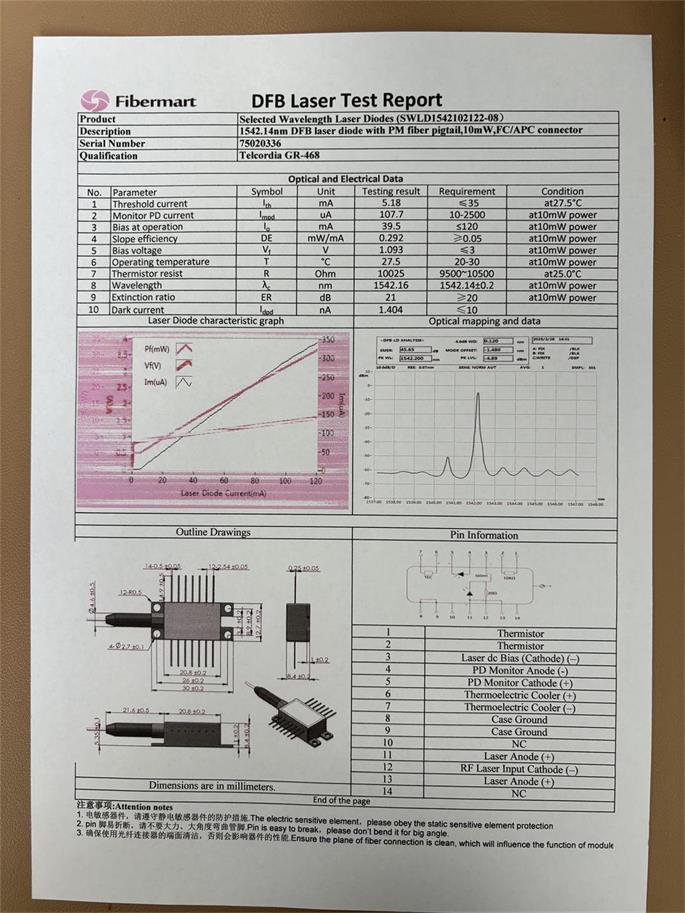

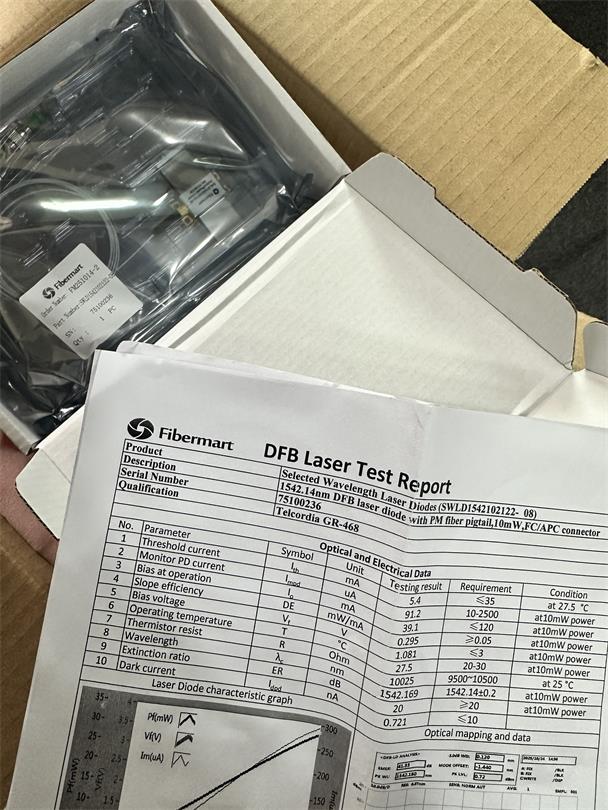

Test Report:
The test report should be provided when the products are delivered. Following characteristic test data should be included: Optical Output Power, Center Wavelength, Spectrum chart, PER, P-I curve, Pin Assignments.
Packaging:
Vacuumize anti-static plastic package. Following items should be indicated on the outer packaging surface: Product Name, Product Number, Serial Number.

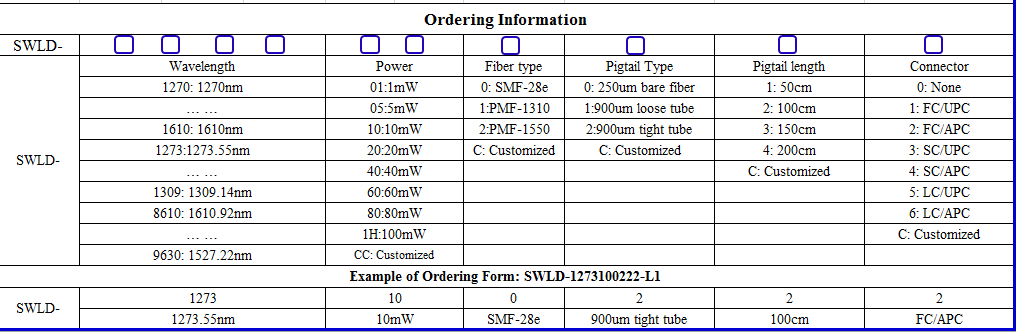

Ordering Information:
