Fullaxs to Fullaxs Duplex FTTA RRU Fiber Patch Cable



Fullaxs, a standard  waterproof interface, designed & developed by TE is widely used  for the wireless base station linked to FTTA equipment that set up outdoor environment. Compared with ODVA or standard PDLC , Fullaxs  its waterproof IP has better performance even up to IP68,and it also has higher sealability and strength.



As we known, Not only TE Fullaxs  fall with Ericsson’s equipments and facilities , but also Rosenberger and Senko do. Although their appearance  are not the same, TE Fullaxs, Rosenberger& Senko are compatible



Features

  • 2 fibers singlemode or multimode
  • Compact design with 2×1.25mm ferrules
  • Built-in socket with square or hexagonal flange
  • Extension connector for cable chaining
  • Screwed locking mechanism
  • Easy and safe intallation
  • Water proof,dust proof and corrosion resistant
  • Water proof protection caps
  • EMI protected
  • RoHs compliant
  • Fulfills performance standard IEC 61753-1 Cat.E
  • Cable Length: 1M
  • Connector: ODC plug to LC/SC/ST/FC

Specifications

<col 269"="" width="119' /> <col width=">
Technology   Full ceramic ferrule and sleeve
Housing material   Nickel plated brass
Mechanical performance ODC plug ≤1000 N tensile load≤30 N static side load
ODC socket ≤30 N tensile load
Installation torque force min.1Nm max.2Nm
Operating temperature IEC 61300 – 2 - 22 -40℃ up to +85℃
Mating durability   1000 cycle
Ingress protection(mate) IEC60529 Ip 68
Salt mist IEC61300-2-26 30 days passed
Vibration IEC61300-2-1 Pass 10-500Hz/10g
Shock IEC61300-2-9 Pass 100g

Optical Performance

Insertion loss
IEC61300-3-34
Singlemode Typ. ≤0.30dB 97% ≤0.45dB
Multimode Typ. ≤0.30dB 97% ≤0.50dB
Return loss Singlemode ≥50dB

Mechanical Drawing

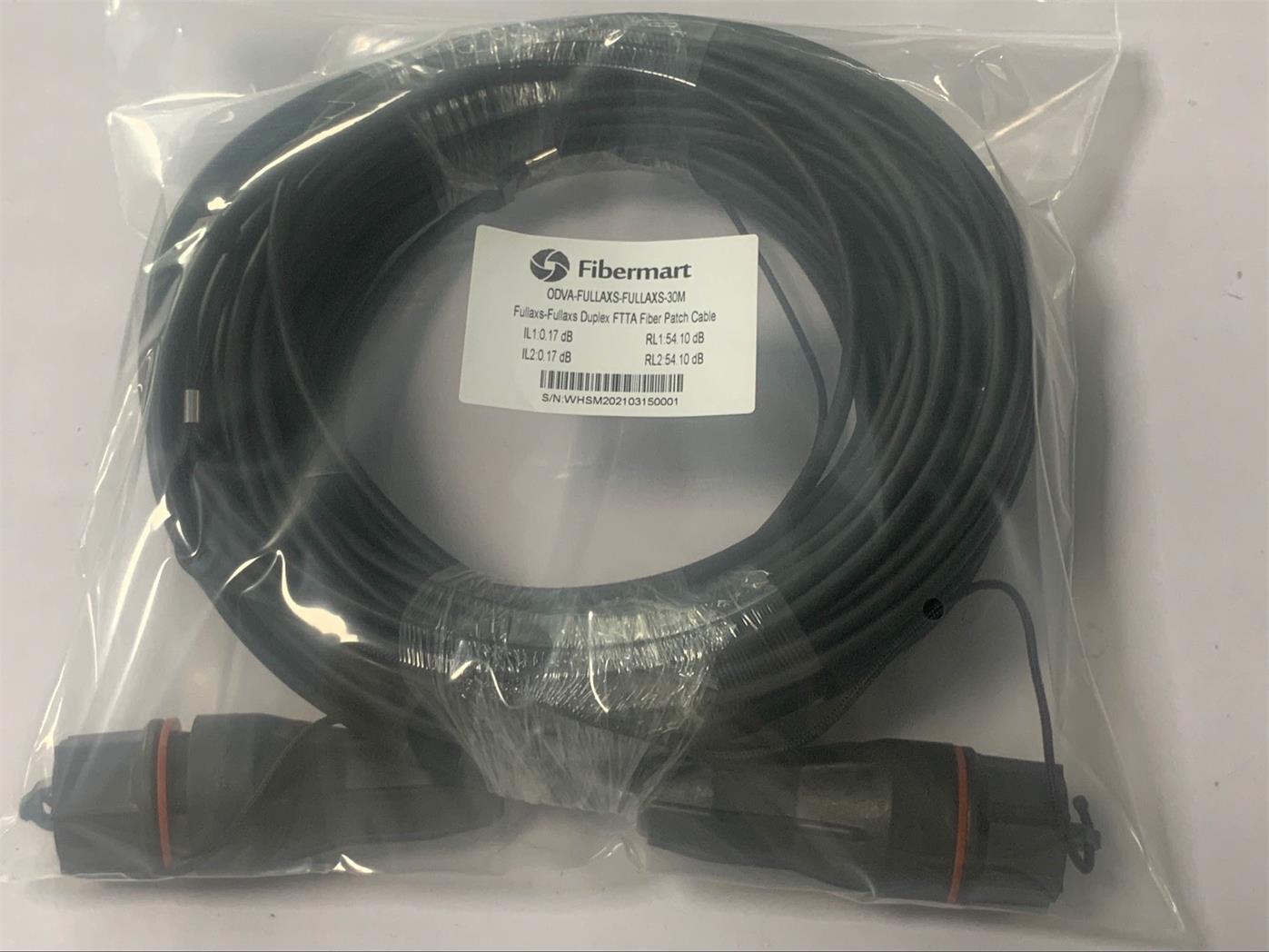

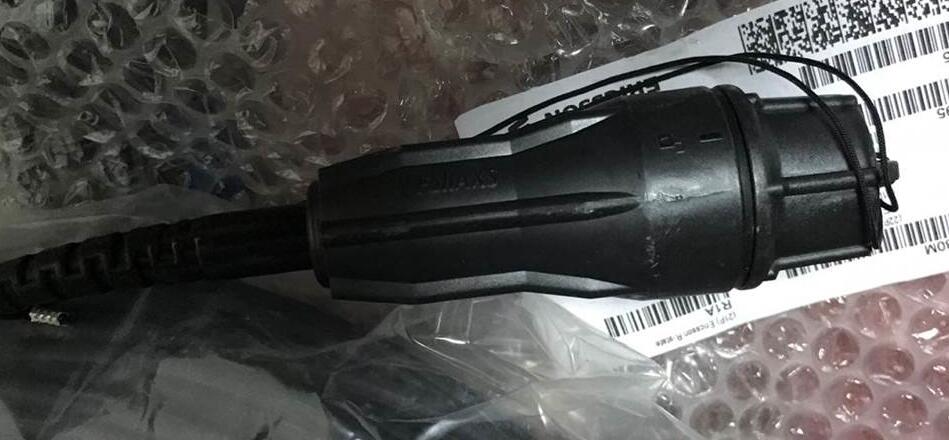

Sample Picture
