LC to ST Duplex OS2 SingleMode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable

Product Item: #17280
P/N: FTTA-SM-LCU-STU-DX-LSZH
Starting at: US$14.00

Please Choose:






Order Today, Ship before 04/03/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

Fibermart Fiber To The Antenna (FTTA) Patch Cable Armored LSZH for Outdoor Applications



FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.





Consisting of Corning fiber cable and LC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.

Product Specifications
Connector Type LC to ST Polish Type UPC to UPC
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Insertion Loss ≤0.3dB Return Loss ≥50dB
Fiber Grade Corning G.657.A1 Min. Bend Radius (Dynamic/Static) 20/10D
Attenuation at 1310 nm 0.36 dB/km Attenuation at 1550 nm 0.22 dB/km
Fiber Count Duplex Cable Jacket Low Smoke Zero Halogen (LSZH)
Cable Diameter (Outer/Inner) 7.0/2.0mm Armored Breakout Length (End A/B) 0.03/0.34m
Tensile Strength (Long Term/Short Term) 400/200N Crush Resistance (Long Term/Short Term) 2200/1100N
Operating Temperature -20~70°C Storage Temperature -40~80°C



Product Spotlight

Superior Flexibility

Corning G.657.A1 bend insensitive fiber

Excellent flexibility for remote traction

Certification & Standards

IEC 61754 series compliant

Qualified to Telcordia GR-326-Core

ISO 9001, Reach, RoHS compliant

Test Assured Program

Insertion loss and return loss testing

End-face inspection

3D interferometer test




Product Highlights

Designed for Outdoor Base Station Construction

This type of specialized fiber patch cable is designed for harsh environment application such as high performance fiber-to-the antenna (FTTA) cabling for current 4G/LTE and 5G network and base station construction connecting AAU and RRU, also suitable for wireless horizontal and vertical cabling in indoor/outdoor environment.

FTTA Patch Cables  Designed for Outdoor Base Station Construction

Corning G.657.A1 Fiber

Corning BIF cable can be stapled and bent around corners without sacrificing performance.

FTTA Patch Cables  Corning G.657.A1 Fiber

Stainless Armored Tube

Hard spiral armored tube makes the cable more stable and higher tensile strength.

Strength Members

Two strength members firm the cable and make it more convenient for pulling when installing.

FTTA Patch Cables  Strength Members
FTTA Patch Cables LSZH Rated Outer Jacket
LSZH Rated Outer Jacket

Jacketed with compounds that emit limited smoke and no halogen when exposed to high heat sources.


Cable Assembly Structure Illustraion

fullaxs to lc cable


FTTA Patch Cables  Cable Assembly Structure Illustraion








Datasheet to Download

Add your Tags

Customer Reviews

Displaying 1 to 3 (of 3 reviews)

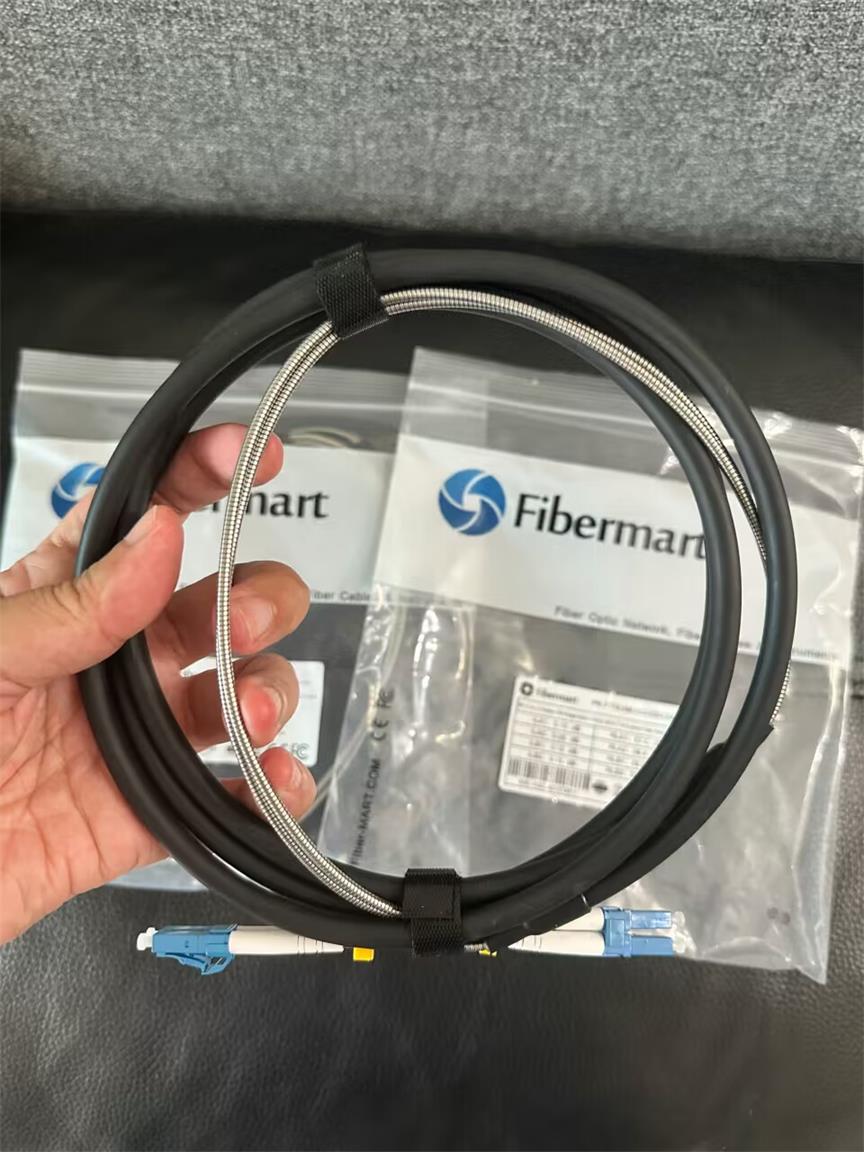

by Marcel Frey
Date Added: 11/14/2023
Nice performance in connection and stablity, this cable has solid jacket, which is very durable.

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to ST Duplex OS2 SingleMode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable LC to ST Duplex OS2 SingleMode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable LC to ST Duplex OS2 SingleMode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable

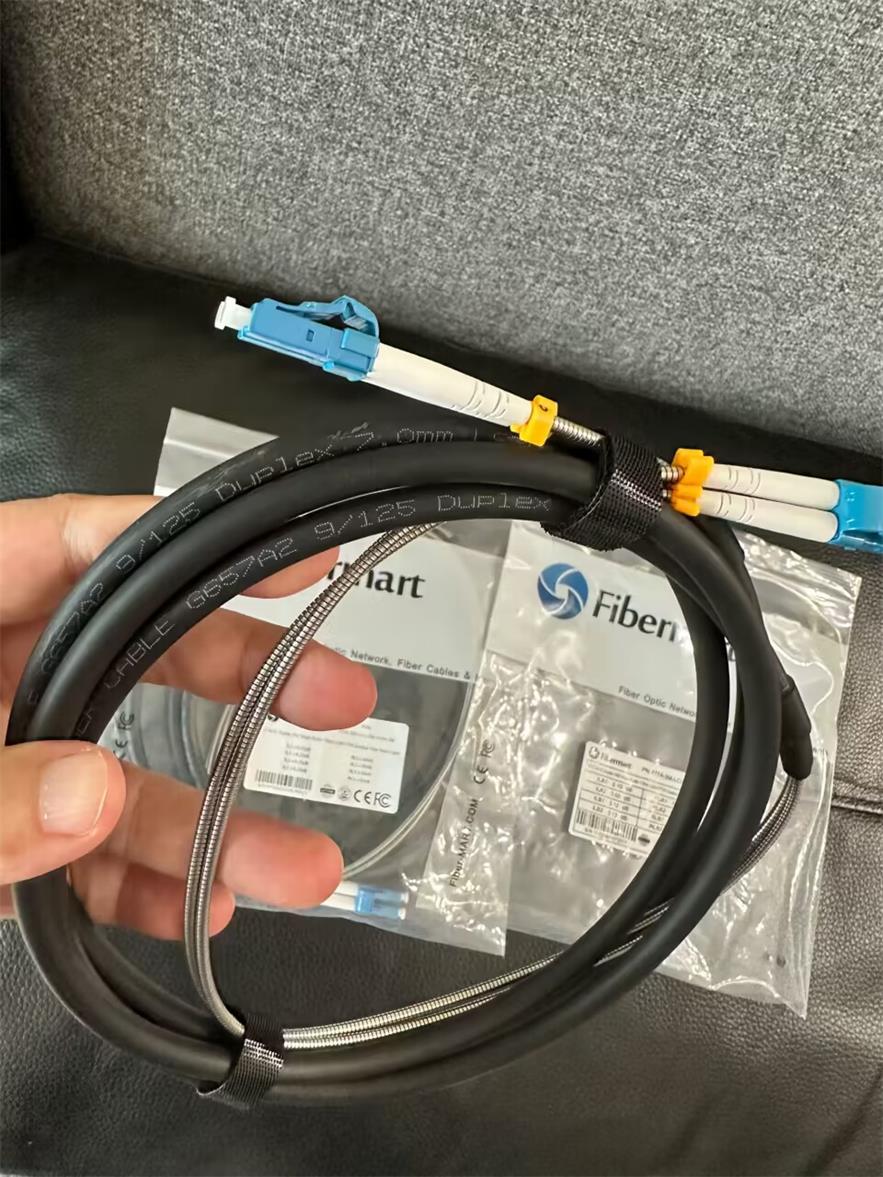

by Randy Moris
Date Added: 06/26/2023
Good cable in armored breakout, high stable connection and protected by steel tubes!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to ST Duplex OS2 SingleMode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable LC to ST Duplex OS2 SingleMode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable LC to ST Duplex OS2 SingleMode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable LC to ST Duplex OS2 SingleMode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable

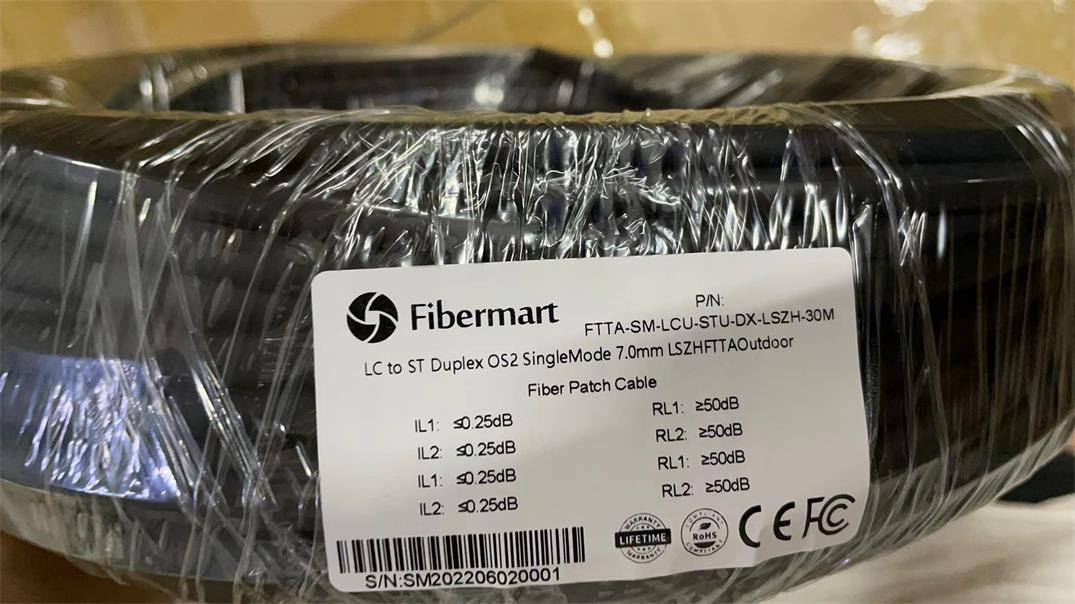

by Craig Boling
Date Added: 06/10/2022
Super nice 7.0mm ftta outdoor fiber cable with lc and st connectors, we got it in 30m length, low loss and stable connections, great!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to ST Duplex OS2 SingleMode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable
