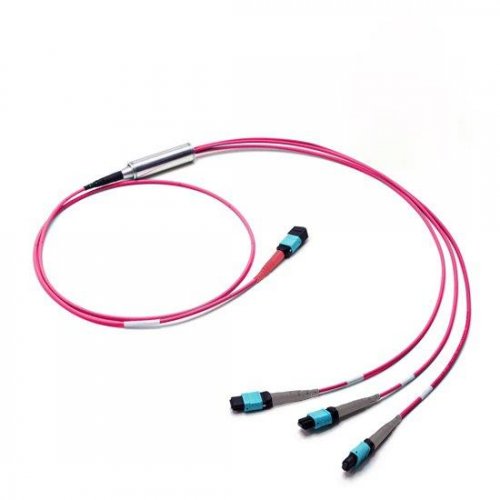

24 Strand MTP(Female) to 3x8 Strand MTP(Female) Interconnect Conversion Harness Cable

Fiber Connector	1xMTP to 3xMTP	Jacket OD	3.0 mm
Fiber Category	50/125 m MM (OM4)	Gender	Female to Female
Fiber Count	24	Test Wavelength	850nm
Insertion Loss	0.6dB	Return Loss	20dB
Polarity	Type B (Full-Flipped)	Durability	500 times
Operating temperature	-40 ~ 80C	Fiber Grade	G651
Flame Rating	LSZH	Outer Jacket Color	Magenta

Features and Benefits

Eliminate termination errors, Min installation timeEach cable is 100%tested for low insertion loss and back reflectionOptimized performance - MTP and discrete premium connectorSupport 40GbE and 100GbE parallel optics networksCompliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard

Cable Polarity - Type B Crossover(Full-Flipped)

How to Choose The Right Fiber Optic Cable Type

PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VCSEL laser transmission and allows 10 Gig/second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

Designation	Fiber Dia.( m)	Type	10Gbps Ethernet 10GBASE SR/LR	40Gbps Ethernet 40GBASE SR4/PLRL4	100Gbps Ethernet 100GBASE SR10/IR4
OM1	62.5/125	Multimode	33 Meters (SR)	Not supported	Not supported
OM2	50/125	Multimode	82 Meters (SR)	Not supported	Not supported
OM3 (Laser Optimized)	50/125	Multimode	300 Meters (SR)	100 Meters (SR4)	100 Meters (SR10)
OM4 (Laser Optimized)	50/125	Multimode	400 Meters (SR)	150 Meters (SR4)	150 Meters (SR10)
Singlemode	9/125	Singlemode	10 KM at 1310nm (LR)	1KM (PLRL4)	2KM (IR4 PSM)

Type B MTP-Female Cabling for 100GBASE SR10 CFP to 40GBASE SR4 QSFP+ Migration Networks

High Quality MTP Cable Guarantee

a.High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
b.3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
c.The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
