SC UPC to E2000 APC Simplex PVC/LSZH/OFNP 9/125 Single Mode Fiber Patch Cable

Press Esc key to close this popup
  • SC UPC to E2000 APC Simplex PVC/LSZH/OFNP 9/125 Single Mode Fiber Patch Cable

SC UPC to E2000 APC Simplex PVC/LSZH/OFNP 9/125 Single Mode Fiber Patch Cable

Product Item: #15433
P/N: SM-SCU-E20A-SX-FM-C
Starting at: US$4.30

Please Choose:








Order Today, Ship before 03/24/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

High Quality and Cost-effective 9/125μm Singlemode Fiber Patch Cable



The 9/125μm single mode fiber patch cable meets RoHS compliant, and all cables are 100%optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.

Fiber-MART also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.



Item Details

Connector: SC to E2000 Jacket OD: standard 2.0 (default)/0.9/3.0mm
Fiber Mode: 9/125μm Jacket Color: Yellow
Polish: UPC to APC Wavelength: 1310/1550nm
Fiber Type: Simplex Jacket Material: PVC(default)/LSZH/OFNP
Insertion loss: SC UPC ≤0.3dB; E2000 APC ≤0.3dB Interchangeability: ≤0.2dB
Return loss: SC UPC ≥50dB; E2000 APC ≥60dB Vibration: ≤0.2dB
Operating temperature: -40~75°C Storage temperature: -45~85°C
Fiber Grade: G652D (G657A1 can also be offered, please contact [email protected] for price and details.)



How to correctly choose between PVC, LSZH and OFNP

PVC Cable: PVC cable resistant to oxidation and degradation, is used for horizontal runs between the table.
It is also work for vertical runs if the building features a contained ventilation system running through the duct work.
LSZH Cable: LSZH cable has a special flame-retardant coating, and excellent fire safety characteristics of low smoke, low toxicity and low corrosion.
It is same to PVC cable for horizontal runs between the table.
OFNP Cable: OFNP cable is a space within the building created by building components, designed for the movement of environmental air, complies with the NFPA fire safety.
It is usually work for vertical runs between floors.



How to Choose The Right Fiber Optic Cable Type

Designation Fiber Dia.
(μm)
Type Fast Ethernet
100BASE-FX
1 Gigabit Ethernet
1000BASE-SX
1 Gigabit Ethernet
1000BASE-LX
10 Gigabit Ethernet
10GBASE
40 Gigabet Ethernet
40GBASE-SR4
100 Gigabet Ethernet
100GBASE-SR4
OM1 62.5/125 Multimode 2000 Meters 275 Meters 550 Meters
(mode conditioning patch cable required)
33 Meters Not supported Not supported
OM2 50/125 Multimode 550 Meters 82 Meters Not supported Not supported
OM3 (Laser Optimized) 50/125 Multimode 550 Meters 300 Meters 100 Meters 100 Meters
OM4 (Laser Optimized) 50/125 Multimode 400 Meters 150 Meters 150 Meters
Singlemode 9/125 Singlemode 5km at 1310nm 5km at 1310nm 10km at 1310nm

PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig/second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.



Custom and OEM

1. Customize Jacket Materials

PVC OFNP LSZH OFNR



2. Customize Cable Color

Red Blue Grey Purple


3. Customize Cable Connector

D4 SMA905 VF45 MU


4. Customize Cable Length

5M 10M 50M 100M


5. OEM Label, Printing and Boot Color


NOTE: If you need customize others, welcome to contact [email protected]


Fibermart Fiber Patch Cable Datasheet







Datasheet to Download

Add your Tags

Customer Reviews

Displaying 1 to 3 (of 3 reviews)

by Richard Robert
Date Added: 02/17/2022

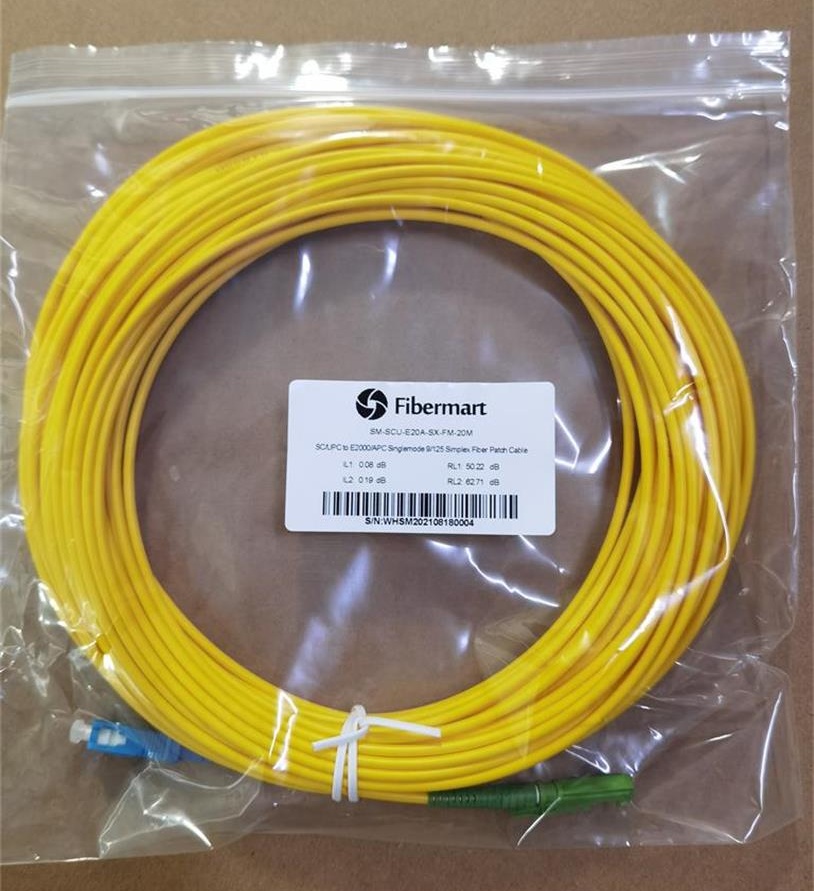

We customized this sc to e2000 fiber cable in 20m length, they comes with low loss and high stable connections in our project, very amazing ones to us, i think this must be useful to you!!
