EDFA for SDH Networks 10dBm Output C-Band Booster Plug-in Card Type

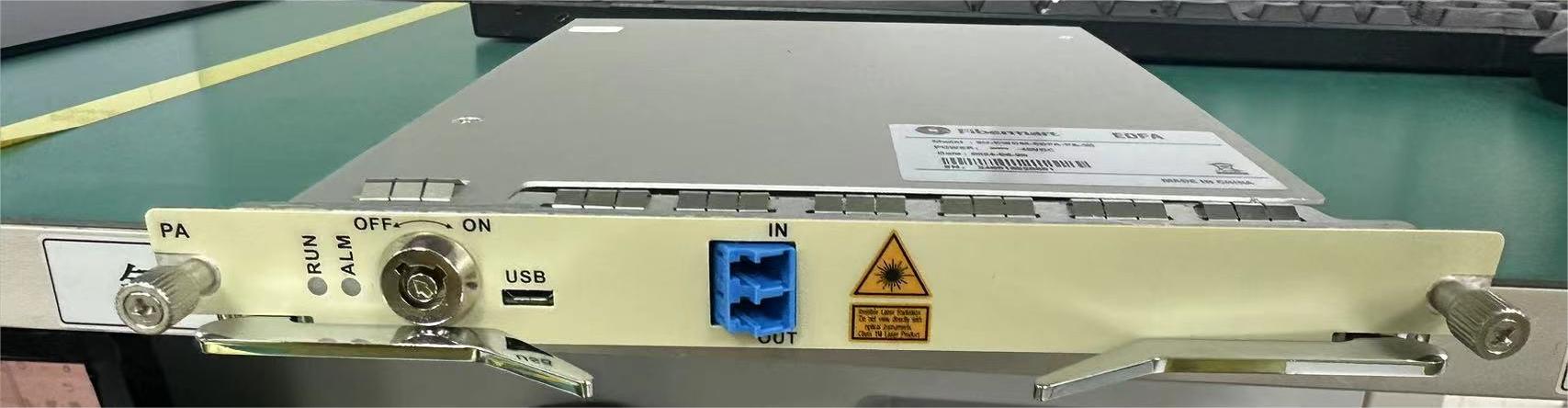

10dBm Output Booster Plug-in Card Type EDFA for SDH Networks

The 10dBm Output C-Band Booster Plug-in Card Type EDFA is designed to plug into Multiplex Managed Chassis, allowing a long distance transmission. It delivers the reach and optical performances to support SDH system, to meet the requirements of service provider and enterprise networks. A unique ATC (automatic temperature control) and APC (automatic power control) circuit are employed in it as the key component to ensure the high stability and reliability of output power; The unique optical circuit design ensures the excellent optical character. In addition, the outstanding ventilation and heat-dissipation of the plug-in card type EDFA guarantee the long life and high reliable work of pump laser.

The plug-in type EDFA usually works with Multiplex Managed Chassis, which can insert more EDFA cards to access multiple signals, for example, 4 EDFA cards can be inserted into 1U Multiplex Managed Chassis and 16 EDFA cards can be inserted into 4U Multiplex Managed Chassis. The specific plug-in design provides flexibility and convenience for EDFA application, achieving space efficiency with compact size. What’s more,the plug-in card type EDFA supports SNMP Network management via Ethernet port and RS232, RS485 through the USB port.



Features

  • Input power: –10~+6dBm
  • Output power: 6dBm
  • APC, AGC, ATC and ACC control modes
  • Support RS232, RS485 (USB Port)
  • Support SNMP Network management Via Ethernet port
  • Low noise figure: typical is< 4.5dB
  • Fully Customizable Design
  • High stability and reliability
  • Easy to maintain and replace reserve parts
  • Space efficiency with compact size
  • Cost efficiency with pluggable type
  • Plug-in design, flexible and convenient
  • Easy to get cooling and effectively prolong the working life.



Applications



  • LANs and MANs
  • SONET/SDH systems
  • Optical distributed system
  • Fiber optic link amplification
  • Long-Haul transmitting system
  • Test and measurement systems
  • Military and industrial applications
  • Rack mount optical amplify system
  • Loss and Dispersion Compensation for Optical Fiber Networks

Compatible With EDFA Chassis

1U Multiplex Managed Chassis can be equipped with 4 EDFA cards and 4U Multiplex Managed Chassis can be equipped with 16 EDFA cards.

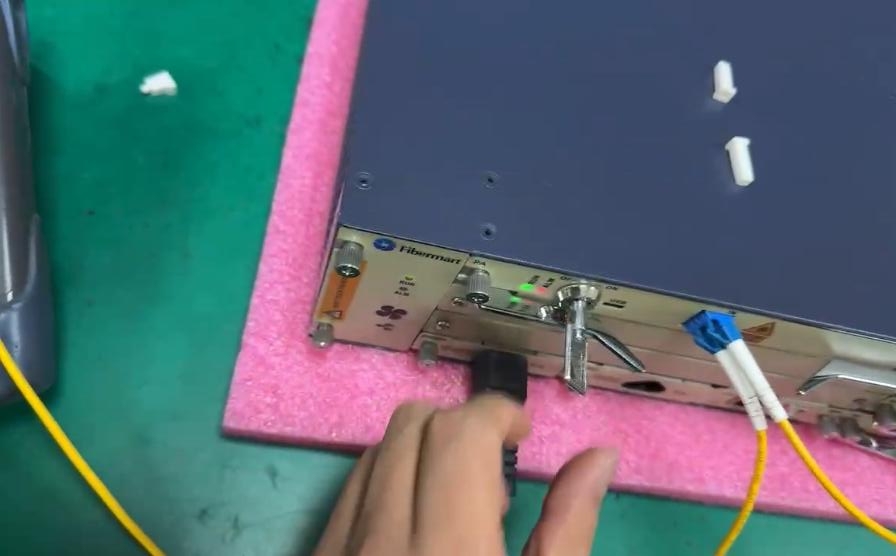

1U Multiplex Managed Chassis for Plug-in Card Type EDFA.

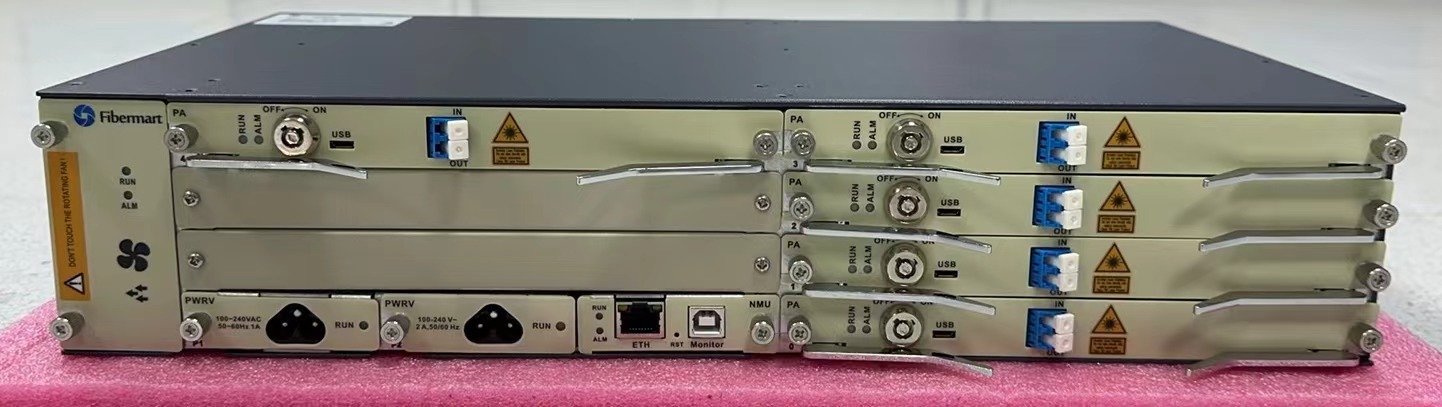

4U Multiplex Managed Chassis for Plug-in Card Type EDFA.





Parameters Symbol Min Typ Max Unit
Operation Wavelength λc 1530 1550 1562 nm
Saturated output power (1) Po     10 dBm
Input power (2) Pi -10   6 dBm
Gain G ------   ------ dB
Noise Figure NF   4.5   dB
Input Isolation ISOi 30     dB
Output Isolation ISOo 30     dB
Input pump leakage PumpLin     -35 dBm
Output pump leakage PumpLout -45   -45 dBm
Return Loss RL     -45 dB
Polarization Dependent Gain PDG     0.3 dB
PMD PMD     0.5 ps
Operation Temperature Tw -5   60
Storage Temperature Ts -40   80
Humidity (3)   10   85 %
Power Voltage Vps 85/170 110/220 132/264 VAC
Power Consumption P     18 W
Serial interface RS232, RS485
Power supply 110VAC, 220 VAC, -48VDC, or 100V-240V
Connectors Simplex SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC , ST/UPC and ST/APC available
Warranty 3 years

(1): Customer optional
(2): Pre-Amplifier: input power –35~-25dBm; Inline-Amplifier: input power –25~-10dBm, Booster: input power –10~+6dBm
(3): No condensation




If any option which is not indicate in your Ordering, please write your option or request in your ORDER to Fiber-Mart, and contact with us.
