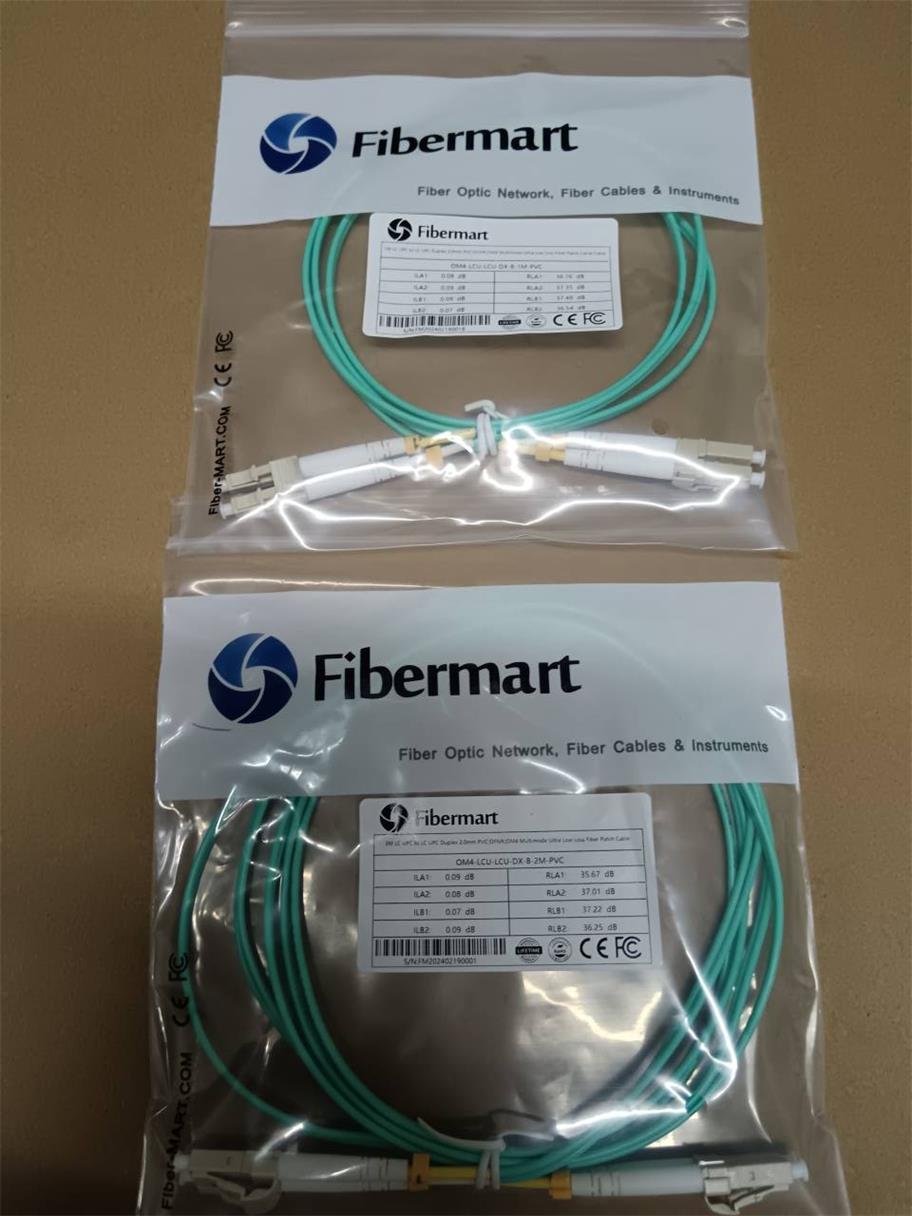

2M LC UPC to LC UPC Duplex 2.0mm PVC(OFNR) OM4 MultiMode Ultra Low Loss Fiber Patch Cable

High Density LC-HD Ultra Low Loss Fiber Optic Patch Cable is a totally unique design which can increase panel density to its highest possible, and the lever design utilizes a flexible "push-pull tab" allowing for the connector to be disengaged easily from densely loaded panels without the need for special tools, allow users easy accessibility in tight areas when deploying in data center applications.

Connector	LC to LC	Jacket OD	2.0mm
Fiber Mode	OM4 50/125	Jacket Color	Aqua/Magenta
Polish	UPC to UPC	Wavelength	850/1300nm
Fiber Type	Duplex	Jacket Material	PVC
Insertion Loss	0.15dB	Interchangeability	0.1dB
Return Loss	50dB	Vibration	0.1dB
Operating Temperature	-40~75C	Storage Temperature	-45~85C

Features and Application

Free-floating ceramic ferrule Easy to release trigger connectorLow insertion loss and reflection lossHigh-Speed, High-Bandwidth and Low-CostROHS, IEEE 802.3ae and TIA LOMMF compliantStackable adapters and high precision alignment60%increase in density

CATVMultimediaTest equipmentData centersActive device terminationTelecommunication networksPremise installations

Datasheet to Download
