LGX Box PLC Splitter 1x2 Fiber Splitter

Product Item: #1920
P/N: PLC-L-1X2
US$31.80

Please Choose:








Order Today, Ship before 03/24/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

LGX Box PLC Splitter 1x2 Fiber Splitter



PLC Splitter is based on planar lightwave circuit technology. Fiber-Mart 1x2 Fiber PLC Splitter can distribute or combine 1 optical signal into 2 outputs fibers.

The 1x2 PLC Splitter, G.657A Fiber, FC, SC, ST & LC connectors for choice, standard LGX metal box package, features high reliability, small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting.



LGX Box PLC Splitter Features

  • Low insertion loss
  • Low Polarization Dependent Loss
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: 1260~1650nm
  • High Reliability and Stability
  • Telcordia GR-1209-CORE-2001 Compliant
  • Telcordia GR-1221-CORE-1999 Compliant
  • Standard LGX Metal Box- Durable Package, Protective, Really Suitable for Outdoor Use

LGX Box PLC Splitter Applications

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Telecommunication Networks

Mechanical Drawing

LGX Box PLC Splitter


V.S FBT Coupler, the advantages of PLC are as follows

  • The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
  • High spectral uniformity, can splitter the signals on average
  • Compact structure, small volume
  • The cost advantage is very obvious on many splitter channels

Order Information

Fiber-Mart provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16, 2x2, 2x4, 2x8, 2x16 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like.
c. The length of pigtail can be also customized; welcome to contact us for more details.



LGX Box Type Advantage

Fiber-Mart LGX box type PLC Splitter is the best choice to install on the above 4U Rack Chassis, which is widely used in FTTH networks.

The 4U Rack Chassis features Versatile cable management as below:
Glass door-provide a good cover for inside LGX device, protect from dust and damage.
Cable Management Bar, rear (4 hook and Loop Fasteners included)- provides a trough where excess cable can be stored
12 pcs LGX box capacity- benefit for high density center



Sample Pictures









  • Our Factory




































Parameter Port Configuration
  1X2 1X4 1X8 1X16 1X32 1X64
Fiber Type G.657A
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 3.9 7 10.2 13.2 16.2 19.7
Max 4.2 7.4 10.7 13.7 17.1 21.2
Loss Uniformity (dB) Max 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
PDL (dB) Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.5 0.5 0.8
Temperature Dependent Loss (-40~+85°C)  Max 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85





Customer Reviews

Displaying 1 to 5 (of 5 reviews)

by Tom
Date Added: 11/06/2023

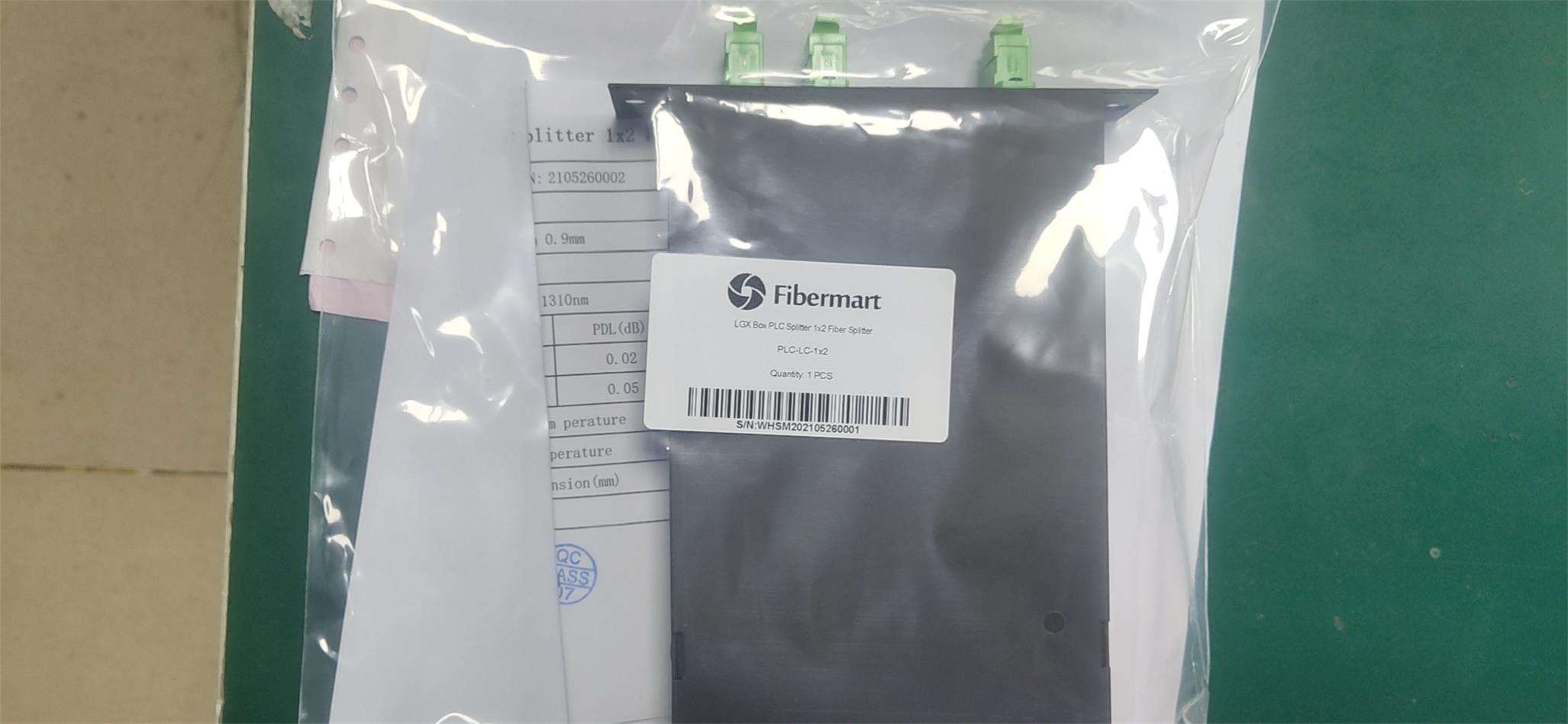

Nice splitters, 2pcs in one lgx box for us, well built and working great!

Rating: 5 of 5 Stars [5 of 5 Stars]
LGX Box PLC Splitter 1x2 Fiber Splitter LGX Box PLC Splitter 1x2 Fiber Splitter LGX Box PLC Splitter 1x2 Fiber Splitter LGX Box PLC Splitter 1x2 Fiber Splitter

by Tomas
Date Added: 09/11/2023

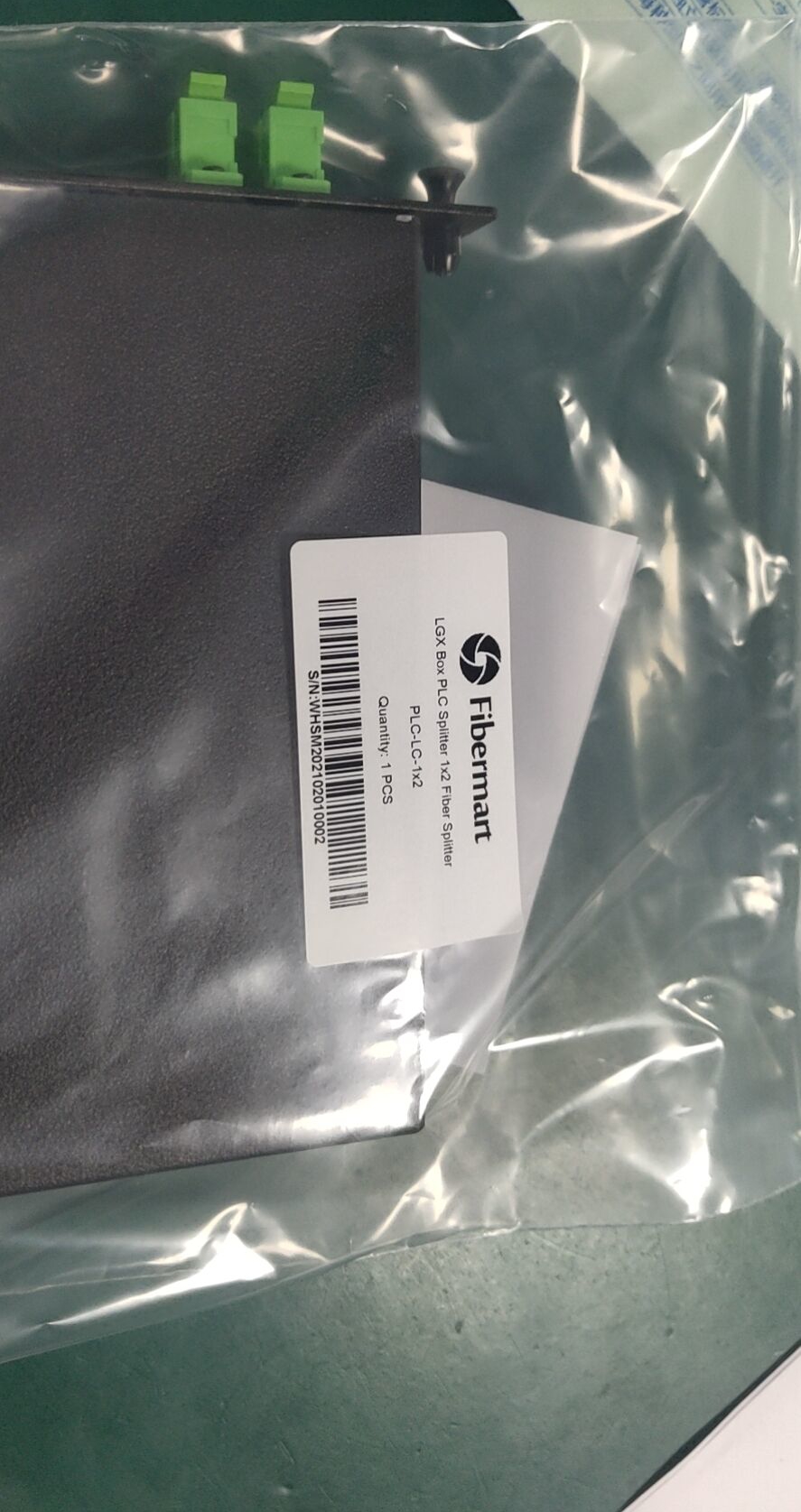

Well received with no problem, nice splitter!

Rating: 5 of 5 Stars [5 of 5 Stars]
LGX Box PLC Splitter 1x2 Fiber Splitter LGX Box PLC Splitter 1x2 Fiber Splitter

by Oscaraller
Date Added: 05/29/2023

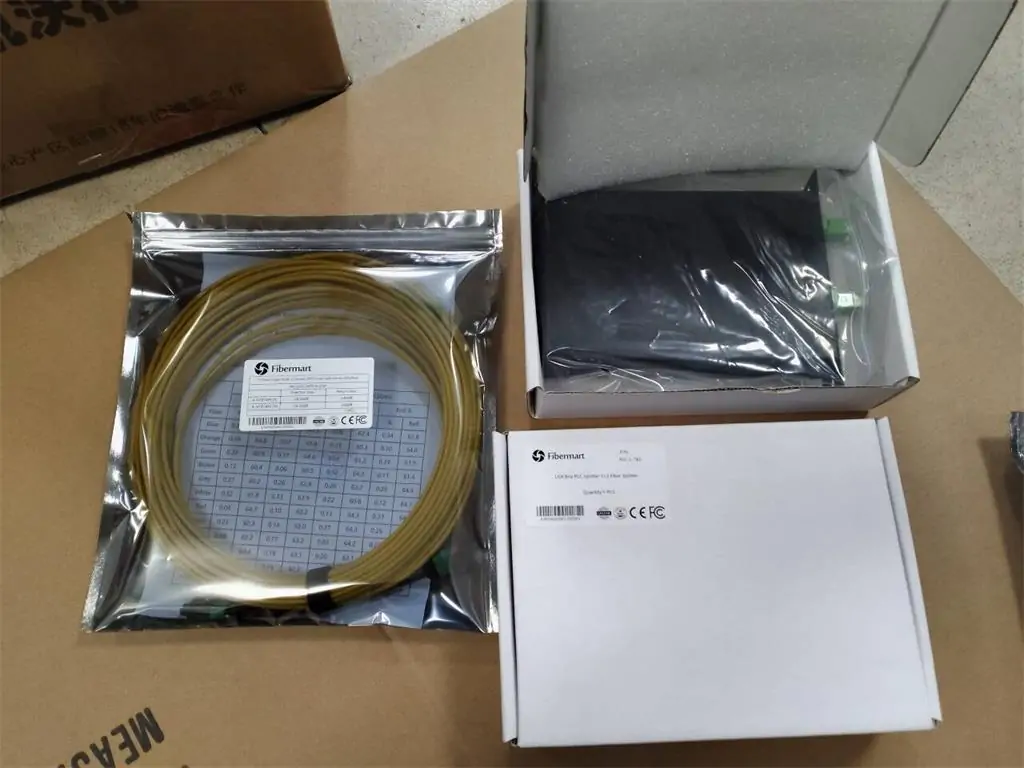

Well received 1x2 LGX PLC Splitter in LC UPC port, good and easy to use, super low loss and high quality ones!

Rating: 5 of 5 Stars [5 of 5 Stars]
LGX Box PLC Splitter 1x2 Fiber Splitter LGX Box PLC Splitter 1x2 Fiber Splitter LGX Box PLC Splitter 1x2 Fiber Splitter LGX Box PLC Splitter 1x2 Fiber Splitter

by Vikas
Date Added: 05/31/2021

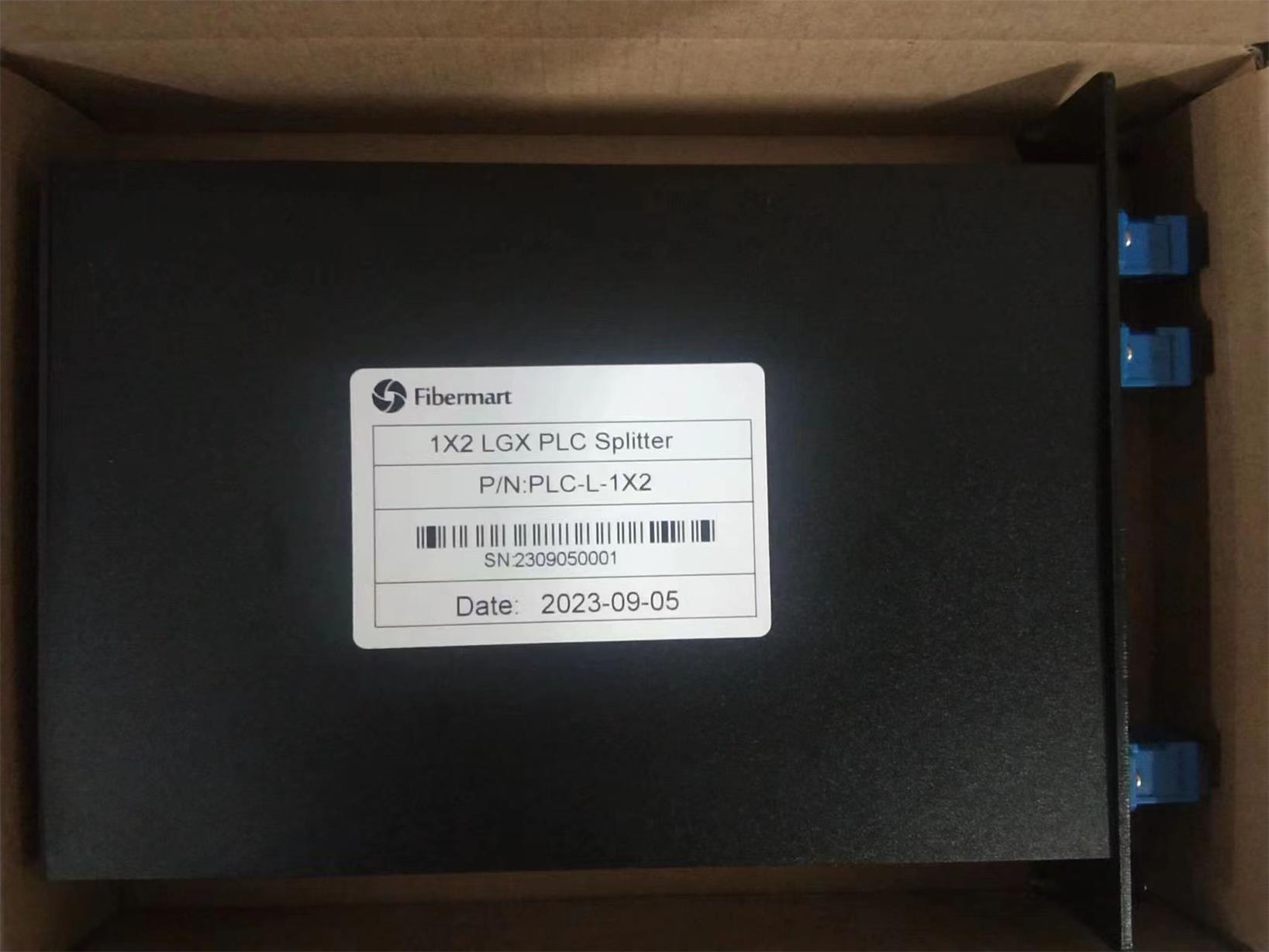

Nice 1x2 LGX plc splitter with well package and super low loss!
