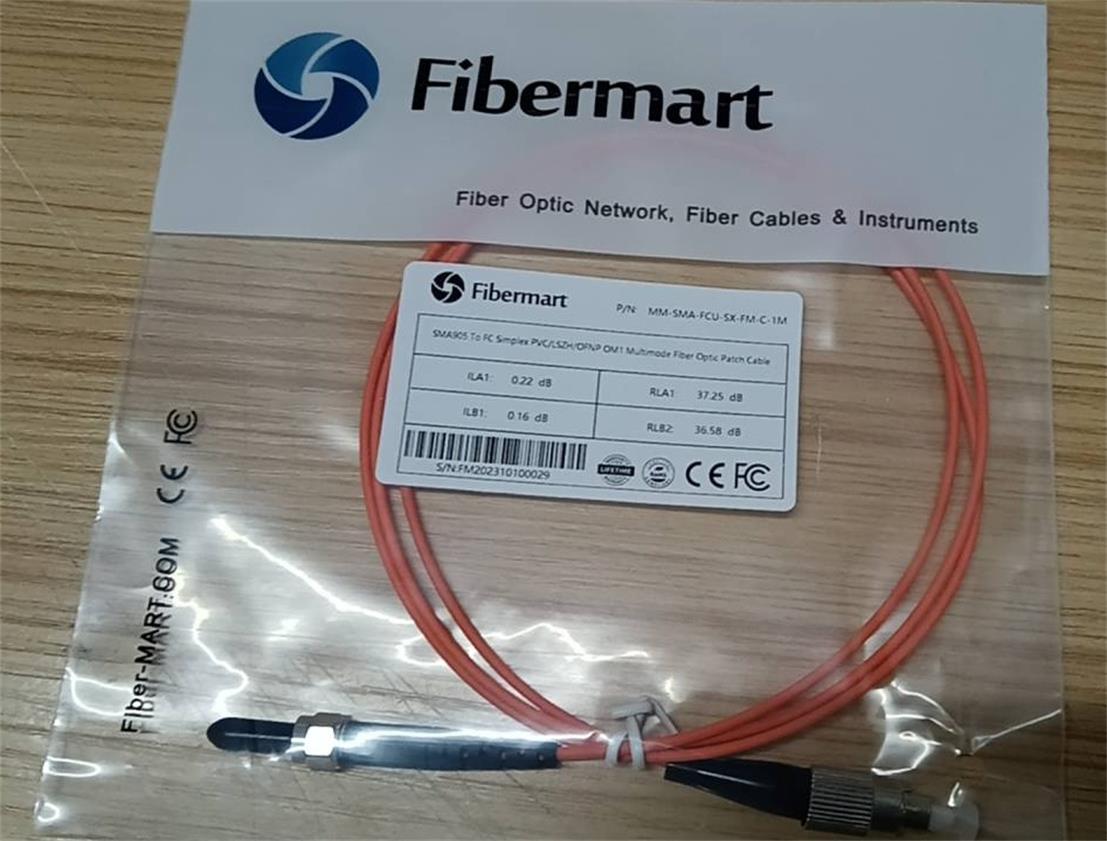

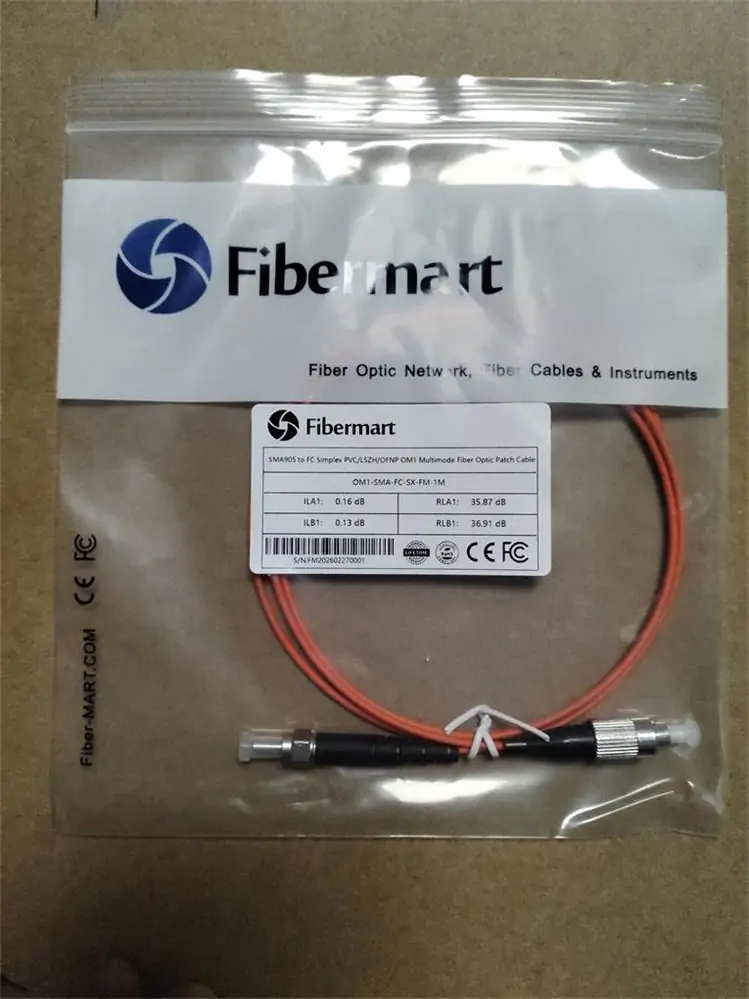

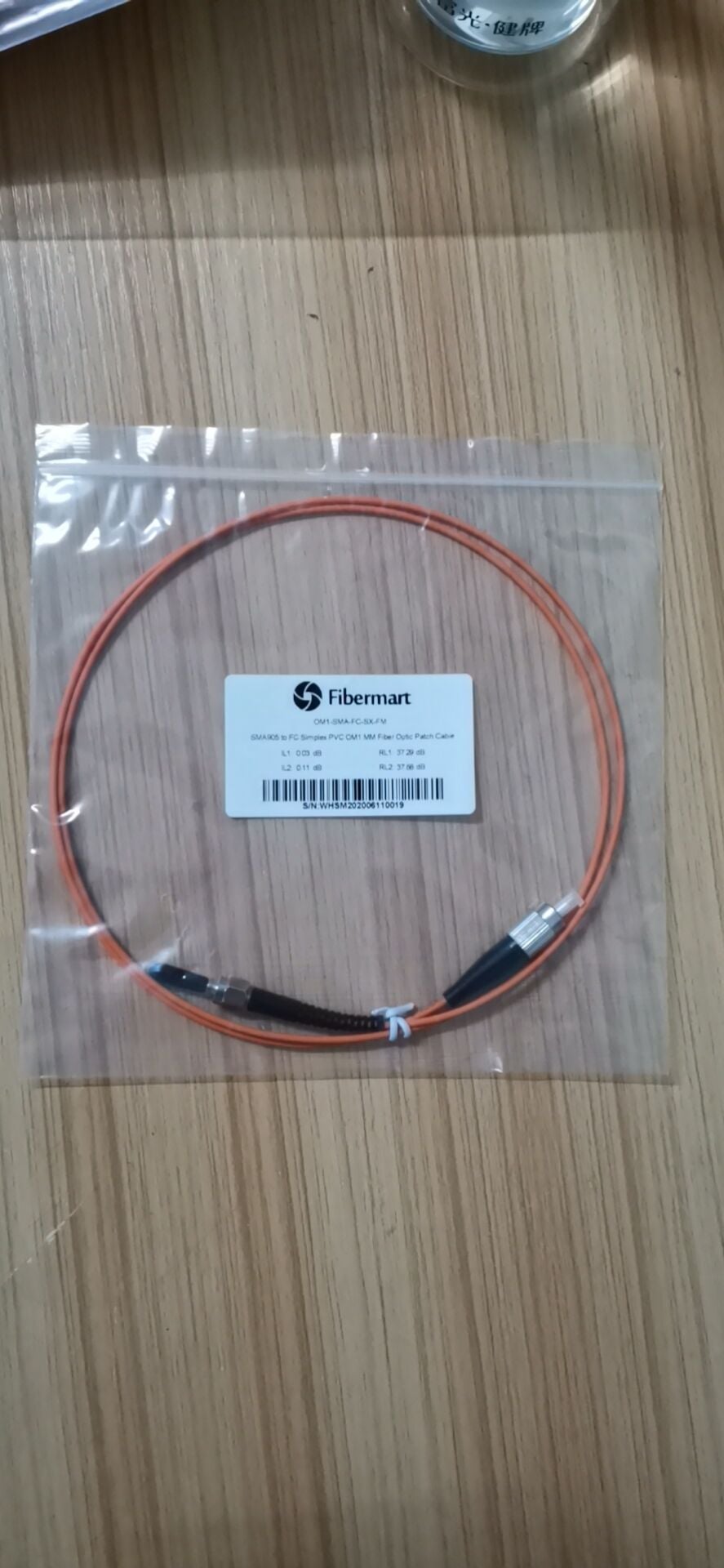

  • SMA905 to FC Simplex PVC/LSZH/OFNP OM1 Multimode Fiber Optic Patch Cable

SMA905 to FC Simplex PVC/LSZH/OFNP OM1 Multimode Fiber Optic Patch Cable

Product Item: #14280
Model: OM1-SMA-FC-SX-FM

Please Choose:

Connector



Price: US$8.60
Add to Cart:

  • Description
  • Ordering Support
  • Other Remarks
  • Tags:

High Quality and Cost-effective SMA905-FC Simplex OM1 62.5/125 Multimode Fiber Patch Cable



The 62.5/125um OM1 multimode fiber patch cords with SMA905 connectors meet TIA and IEC compliant, and all cables are 100%optically tested for insertion loss to ensure high quality. It is widely used for the following areas:

Data Communication Laser Power DeliveryNear-IR SpectroscopyIndustrial and Military applicationAutomation and Programmable Logic Control system

Fiber-MART also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.



Cable Details



Fiber Mode: 62.5/125um OM1 Insertion loss: 0.3dB
Connector: SMA905 to FC UPC Wavelength: 650nm
Numerical Aperture: 0.4-0.5NA The Min bending radius: 10D (D: Optical Fiber Core Diameter)
Out-Track: 2.0mm/3.0mm/2.5mm Cable Length: 1~999m customized (1 meter as default)



How to correctly choose between PVC, LSZH and OFNP

PVC Cable: PVC cable resistant to oxidation and degradation, is used for horizontal runs between the table.
It is also work for vertical runs if the building features a contained ventilation system running through the duct work.
LSZH Cable: LSZH cable has a special flame-retardant coating, and excellent fire safety characteristics of low smoke, low toxicity and low corrosion.
It is same to PVC cable for horizontal runs between the table.
OFNP Cable: OFNP cable is a space within the building created by building components, designed for the movement of environmental air, complies with the NFPA fire safety.
It is usually work for vertical runs between floors.

SMA905 Connector Structure

1.The difference between metal ferrule and zirconia ferrule:
2.Two types of metal ferrule (with or without groove):
3.SMA905 connector with extended tailstock:

Notes:
1. The default ferrule is Metal Ferrule, the Zirconia Ferrule can be customized.
2. The default size standard of Inner Hole is 127um, other size standards can be customized.



Specifications

OVERVIEW

The Numerical Aperture Of the Quartz Fiber

0.22-0.37

Fiber Diameter (mm)

0.2

0.3

0.4

0.5

0.6

0.65

0.8

Minimum Bending Radius

10D (D: Optical Fiber Core Diameter)

Fiber Cor (Coating Layer)

1:1.05/1:1.4

Numerical Aperture

0.21-0.37

           Transmission (%/m0)











Transmission (0.20-0.4um)

85-98

Visible Light (0.4-0.7um)

97-99

Near-Infrared (0.76-1.6um)

90-99

Heliun-Neon (0.6328um)

99

YAG (1.06um)

98

Argon (0.5145um)

98

Transmission Power

>130w (Fibre [email protected])



Make To Order



Connector Type Inner Hole Size Core Material Concentricity Roundness Tailstock Of Connector Bare Fiber Clamp Cable Length
Metal ferrule (Default)
Zirconia ferrule
127μm (Default)
Custom
Stainless steel
Cupronickel
≤3.0μm ≤2.0μm Standard (Default)
Lengthen (Custom)
Without (Default)
With
1m~999m
Others
