Waterproof Fiber Cable IP67 SC to IP67 SC Simplex Singlemode

Press Esc key to close this popup
  • Waterproof Fiber Cable IP67 SC to IP67 SC Simplex Singlemode

Waterproof Fiber Cable IP67 SC to IP67 SC Simplex Singlemode

Product Item: #15642
P/N: WP-SX-SM-IP67SC-IP67SC
Starting at: US$46.00

Please Choose:





( Order Today, Ship before 03/02/2021 )
  • Description
  • Support
  • FAQ
  • Tags:

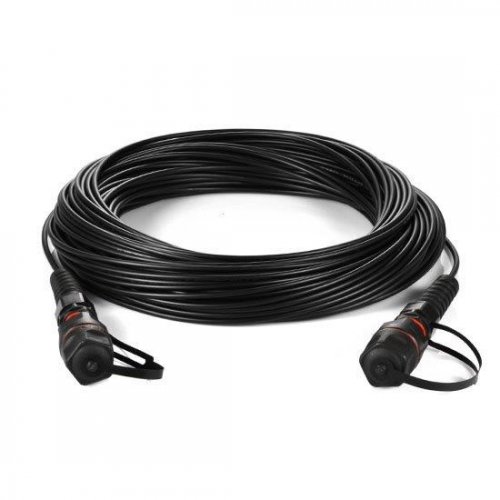

Waterproof Fiber Patch Cable, IP67 SC to IP67 SC, Simplex, Singlemode



Waterproof fiber optic patch cables are designed to fit for outdoor applications. The strong PU jacket and armored structure can resist high temperature and suit to use in harsh environment. Fiber-MART provides wide degree flexibility on Waterproof fiber optical cables, including duplex, simplex, 12 fibers and 24 fibers various kinds of connect interfaces optional such as LC/SC/FC/ST/MPO connectors and so on.

IP67 SC to IP67 SC simplex singlmode waterproof fiber patch cable has the IP-SC connector which is designed to exceed the requiremnets of ODVA, the connector meet IP66/67 environmental sealing ratings and are the ideal choice for a low cost and easy to use solution in industrial, fiber to the Antenna, or any other harsh environmental applications. The IP-SC connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. IP67 SC - IP67 SC singlemode simplex waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh environment.


Product Type Waterproof Cable Fiber Type Singlemode OS2 9/125
Connector IP67 SC to IP67 SC Connection Style Simplex
Trunk Diameter 4.0mm Branch Diameter 3.0mm
Insertion Loss 0.20dB Return Loss 50dB
Storage Temperature -55C-85C Operating Temperature -40C-70C





International Protection (IP) Rating







Features




High temperature stability, low insertion lossWater proof, dust proof and corrosion resistantBump resistance - 4000 bumps @ 40g accelerationEasy operation, reliable and cost-effective installationFree fall resistance - 500 falls onto concrete from 1.2M height







The Application of Waterproof Fiber Optic Patch Cable



Waterproof Fiber Cable

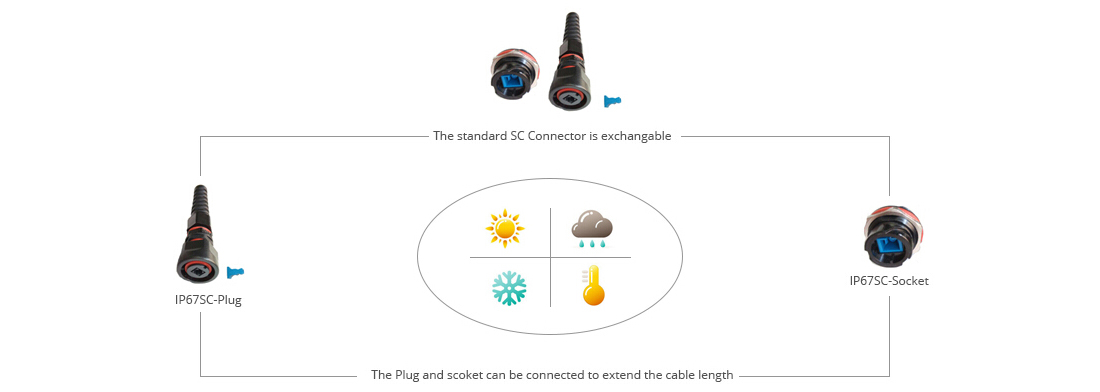

IP67 SC Connectors: socket & plug

There are two types of IP67SC waterproof connector: IP67SC plug (with standard SC connectors) and IP67SC Socket (with SC slot), the plug of one cable and the socket of the other cable can be connected to extend the cable length.











IP67 SC Component Details

In Fiber-MART, IP67SC cable connector is the SC connector whose optical channels are based on the convention with simplex, singlemode APC. The aluminum frame has a spring-loaded push-pull locking mechanism and possesses the excellent cable retention because of an aramid yarn within the cable. When there is no connection by the automatically operated sealing-cover, both chassis and connector can protect against dirt and dust. In addition to the automatic sealing shutters, rubber outer sheath and steel, the automatic protective cap is fitted for using when unconnected. When connected or capped, the sealing connection environment amounts to IP67.















Waterproof Optic Patch Cable Performance



Fiber Type Singlemode Multimode
Insertion Loss 0.20dB 0.30dB
Return Loss 50dB 35dB
Storage Temperature -55C ~85C -55C ~85C
Operating Temperature -40C ~70C -40C ~70C
Repetition Test(Additional Loss) 0.1dB 0.1dB
Repetition Test(Return Loss Variability) <5dB <5dB
Temperature Stability(Additional Loss) 0.2dB 0.2dB
Temperature Stability(Return Loss Variability) <5dB <5dB
Bump Resistance 4000 bumps @ 40g acceleration 4000 bumps @ 40g acceleration
Tensile Strength Tensile of 1500N-cable dependent Tensile of 1500N-cable dependent
Free Fall Resistance 500 falls onto concrete from 1.2M height 500 falls onto concrete from 1.2M height




















If any option which is not indicate in your Ordering, please write your option or request in your ORDER to Fiber-Mart, and contact with us.



You can place your Order Online in our website, you can send us a Purchase Order as a company, or you can request a Proforma Invoice Order to make everything clear!
