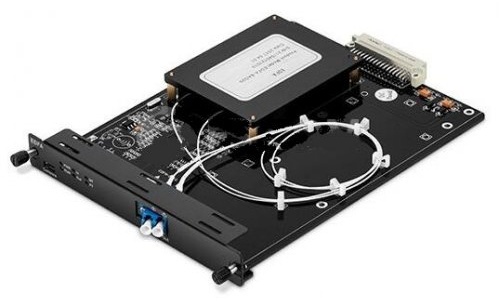

EDFA Optical Amplifier

Fibermart Optical Amplifiers are designed for all network segments (access, metro, regional and long haul) and applications (telecom, cable and enterprise) to amplify optical signals for a purpose usage. We have a series of optical edfa amplifier, Erbium-Doped Fiber Amplifier (EDFA) optical signal amplifiers, including DWDM EDFA for DWDM systems, CATV EDFA for CATV applications, SDH EDFA for SDH networks. In addition, we can also provide Raman Fiber Amplifiers, DCM EDFA with mid-stage access, and high power edfa fiber amplifiers such as EYDFA, optical edfa amplifiers. We offer innovative solutions for many of the industry's most pressing challenges. Buy Fiber Optical Signal Amplifier, edfa fiber booster from Fiber-MART.COM

Introduction

Fibermart Optical Amplifiers are engineered as the definitive solution for amplifying optical signals across every segment of modern optical networks, from enterprise access to transoceanic long-haul systems. Specializing in Erbium-Doped Fiber Amplifier (EDFA) technology, our comprehensive series includes variants optimized for DWDM transmission, CATV broadcast, and SDH networks, alongside advanced Raman and high-power amplifiers. Designed to overcome signal attenuation without electronic conversion, these amplifiers provide a robust, transparent, and efficient means to extend network reach and enhance signal integrity for telecom, cable, and enterprise applications.

Features

● Comprehensive Application Coverage with dedicated models for DWDM, CATV, SDH, and general telecom use.

● Advanced Amplifier Technologies including standard EDFA, dual-pump EDFA for enhanced reliability, Raman amplifiers, and high-power EYDFA.

● Broad Gain Spectrum operating primarily in the C-band (1530-1565 nm) and L-band (1570-1610 nm) to support high-channel-count DWDM systems.

● High Performance Parameters delivering optical gains typically from 15dB to 40dB, with low noise figures (as low as 4.5 dB) and high output power up to +37 dBm.

● Flexible System Integration with mid-stage access for Dispersion Compensation Modules (DCM) and support for both 980nm and 1480nm pump laser diodes.

● Intelligent Monitoring & Control equipped custom interfaces for network management, real-time performance monitoring, and stable automatic gain or power control.

● Rugged and Reliable Design built for continuous operation in varied environments, ensuring long-term stability for both standardized and customized installations.

Principles

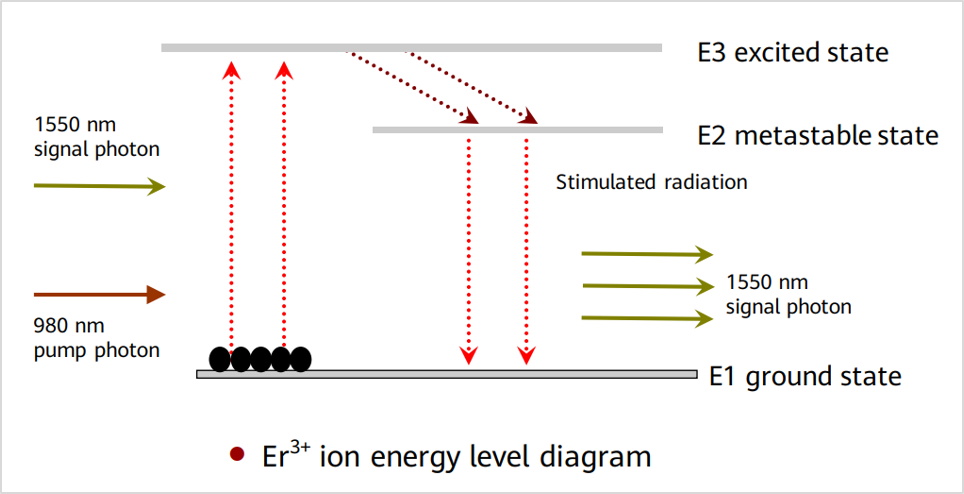

An Erbium-Doped Fiber Amplifier (EDFA) operates on the principle of stimulated emission to amplify an optical signal directly in the fiber. The core component is a length of optical fiber whose glass core is doped with ions of the rare-earth element erbium. When this doped fiber is energized by a high-power "pump" laser diode (typically at 980nm or 1480nm wavelengths), the erbium ions are excited to a higher energy state.

As the weak data signal (in the 1550nm or C/L-band region) passes through this excited medium, it stimulates the erbium ions to drop back to their lower energy state. This process releases photons identical in phase, wavelength, and direction to the incoming signal, resulting in the coherent amplification of the original light. Crucially, this entire process occurs within the optical domain, preserving the signal's data format and enabling simultaneous amplification of multiple wavelengths in a DWDM system without electronic bottlenecks.

Applications

● Long-Haul and Submarine Networks for periodic signal re-amplification across vast distances.

● Metro and Regional DWDM Ring Networks to boost multi-channel signals between network nodes.

● CATV/HFC Broadcast Distribution amplifying analog and digital video signals for fiber-to-the-home (FTTH) and cable systems.

● Fiber Optic Sensing Systems providing high-power light sources and signal boosting for distributed acoustic or temperature sensing.

● Data Center Interconnect (DCI) and Enterprise Backbones extending the reach of high-speed connections between campuses and data halls.
