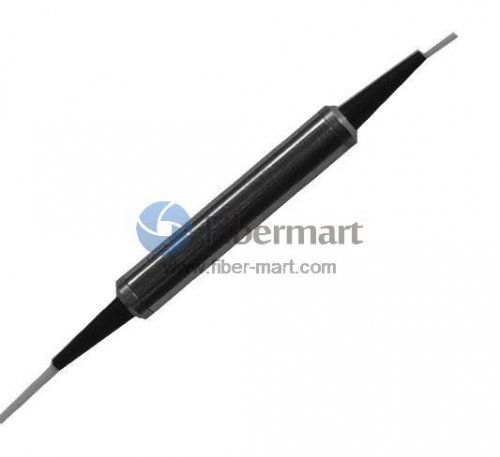

WDM Optical Fiber Filter 1625nm

Product Item: #16246
(1 Customer Reviews)
P/N: FWDM-1625-FM
Starting at: US$164.00

Please Choose:









Order Today, Ship before 06/11/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

Optical Fiber Filter WDM FTTX 1625nm FM-FWDM-1625

The optical filter is an instrument that is used for wavelength selection, which can select required wavelengths from a large number of wavelengths and reject the addition wavelengths. It can used in wavelength selection, the noise filter of the optical amplifier, gain equalization, optical multiplexing /demultiplexing.

Optical Fiber Filter WDM FTTX 1625nm FM-FWDM-1625 is made by special optical components and advanced technology, it can deeply let 1600-1670nm wavelength pass but efficiently stop 1250-1590nm wavelength. This product is mainly used in optical fiber on-line testing. It is ideal component of 1625/1650nm optical fiber filtering.


Key Features

  • High light transmittance
  • High isolation
  • Low PDL
  • Effect of temperature is small
  • Length: 1M
  • Fiber Diameter: 0.9mm
  • Connector: FC/UPC

Applications

  • FTTX on line testing
  • OTDR monitor module
  • 1625/1650nm filter system

Specification

Parameters

Value

Unit

Passed Wavelength Range

1600-1670

nm

1625nm Transmittance

80-90

%

1650nm Transmittance

75-85

%

Stopped Wavelength Range

1250-1590

nm

1310nm Isolation

≥50

dB

1490nm Isolation

≥45

dB

1550nm Isolation

≥38

dB

PDL

≤0.3

dB

Temperature Shift Factor

≤2

%

Max. Power Handle

300

mW

Operation Temperature

-25～＋70

℃

Storage Temperature

-40～＋85

℃

Optical Fiber Type

SM Φ0.9

/

Connector

FC/APC or FC/PC

/

Material Of Shell

SUS304

/




Fibermart 1310,1550 Filter WDM Datasheet



Fibermart 1310,1490,1550 Filter WDM Datasheet



Fibermart 980-1550,1480-1550 Filter WDM Datasheet







Datasheet to Download
