9 channels, Type A, 1RU Rack Mount, Simplex BIDI Transmission, CWDM Mux & Demux

Product Item: #4928
P/N: 9MDS-1RU-A-FMCWDM
US$432.00

Please Choose:



Special Port











( Order Today, Ship before 03/02/2021 )
  • Description
  • Support
  • FAQ
  • Tags:

Simplex CWDM MUX & DEMUX



Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over one fiber.


Simplex bidi CWDM MUX demux


Fiber-Mart CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.


Fiber-Mart provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

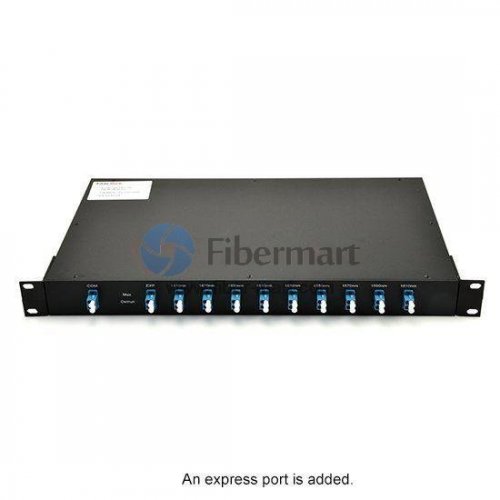

Front Panel Details

1RU CWDM MUX DEMUX

NOTE:

  • Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same
  • We provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice, need more details, please contact at [email protected]
  • When using with 1310nm legacy SDH/SONET, CWDM wavelengths 1270, 1290, 1310, 1330 and 1350nm should not be used.
  • When using with 1550nm legacy SDN/SONET, CWDM wavelengths 1510, 1530, 1550, 1570 and 1590nm should not be used.



Item Details

  • 9 channels CWDM mux and demux in one 1U Rack
  • Com port is simplex
  • 1U 19 inch Rack Mount Housing
  • It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
  • Front panel is equipped with adapters according to customer choice (see options)
  • Passive, no electric power required. (MTBF ca. 500 years)
  • Low insertion loss
  • Simple to install, requires no configuration or maintenance
  • ISO 9001 manufacturing facility
  • It should be used with 9 channels, Type B, 1RU Rack Mount, Simplex BIDI Transmission, CWDM Mux & Demux in pair.



Mechanical Details for Housing


1RU CWDM MUX DEMUX SIZE DIMENSION

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.






If any option which is not indicate in your Ordering, please write your option or request in your ORDER to Fiber-Mart, and contact with us.



You can place your Order Online in our website, you can send us a Purchase Order as a company, or you can request a Proforma Invoice Order to make everything clear!



Get All the Support about Purchase



Professional Service & Support is available in three different ways

Chat live with Fiber-Mart

Offline

Please leave us a message, we'll respond to you as soon.
8 am. to Midnight PST Mon. to Fri. or  Leave Message

Email to Fiber-Mart

E-mail Now

Post a inquiry request and get a quick response from Fiber-Mart.

Make a Call  +1 (707)-702-1573

Or click on the button below to have us call you.
8 am.- 5 pm. PST. Mon. to Fri.

Get a Call






Shipping Time


FedEx IP: Within 1-4 business days
FedEx IE: Within 4-6 business days
DHL: Within 2-6 business days
EMS: Within 4-15 business days
UPS: Within 1-3 business days
Hong Kong Post Airmail: Within 10-30 business days


Payment:


Paypal or Credit/debit card
Wire Transfer, West Union


Returns:


Satisfactory return or item exchange


Guarantee:


Money back guarantee


Warranty:


Limited Warranty


Volume pricing:


If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.


Add your Tags

Fiber Multiplexer |


Please tell us what you think and share your opinions with others. Be sure to focus your comments on the product.



Customer Reviews


by Alejandra Fuentes
Date Added: 03/09/2020
I am so glad that I have purchased these for my project. I need to transmit several 10 Gbps channels between two locations located at 90km and linked by two dark fibers. This low insertion loss MUX gives me more space to upgrade my project. Wonderful product!

Rating: 5 of 5 Stars [5 of 5 Stars]
